MTI 1510A - Page 36

Page 33 MTI Part Number 7001-0040
Revision 3.1 August 7, 2014

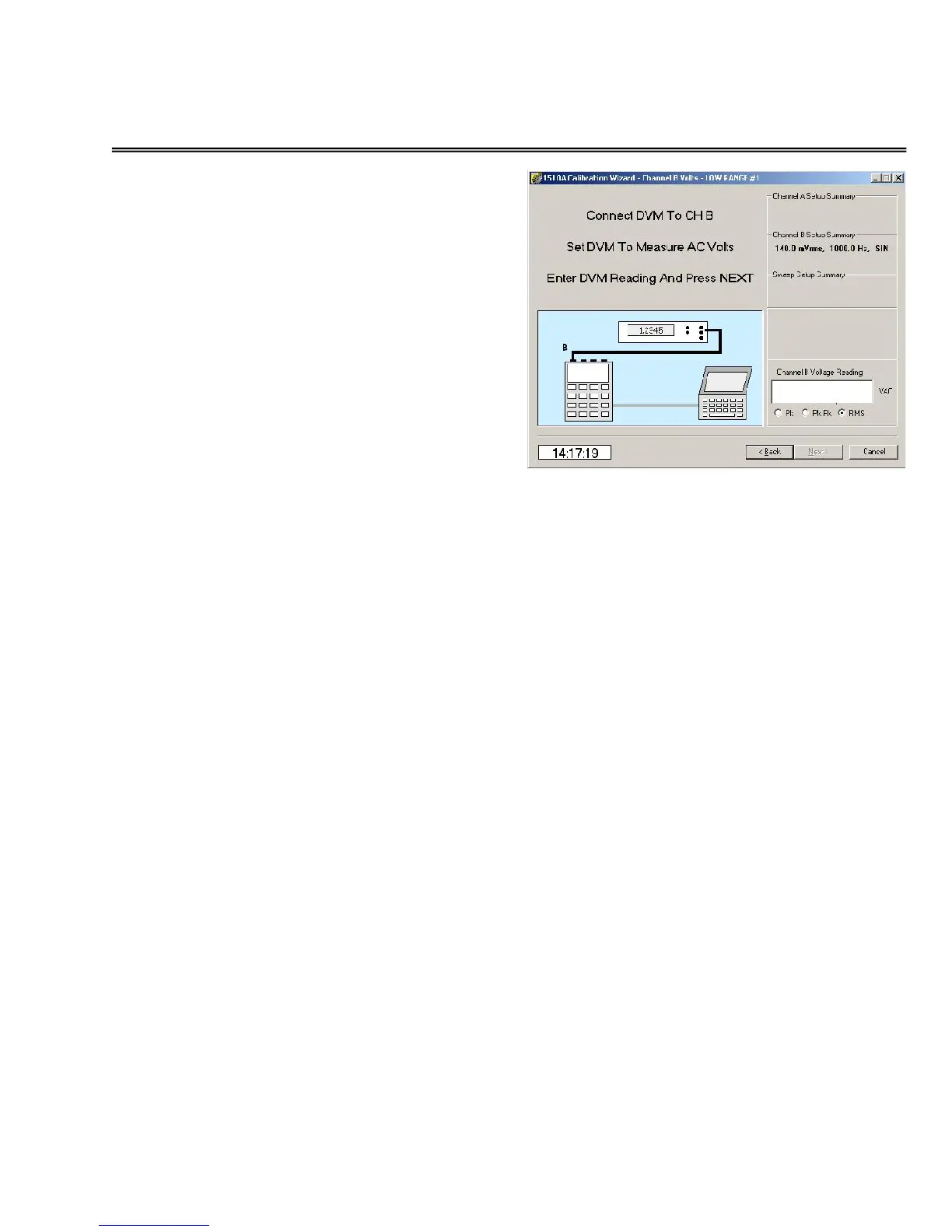

TOOLS Menu – Calibration Wizard Continued
Channel B High range AC calibration
Next, click in the
Voltage Reading
window and enter the
reading of the
voltmeter. Verify that
the correct units (Pk,
Pk-Pk, or RMS) are
selected for the type of
voltmeter you are
using.
This screen is repeated
for the three mid range
voltages (1.4 v, 3.5 v,
and 5.6 v) used.
