Signal Frequency Setting (Transmitter)

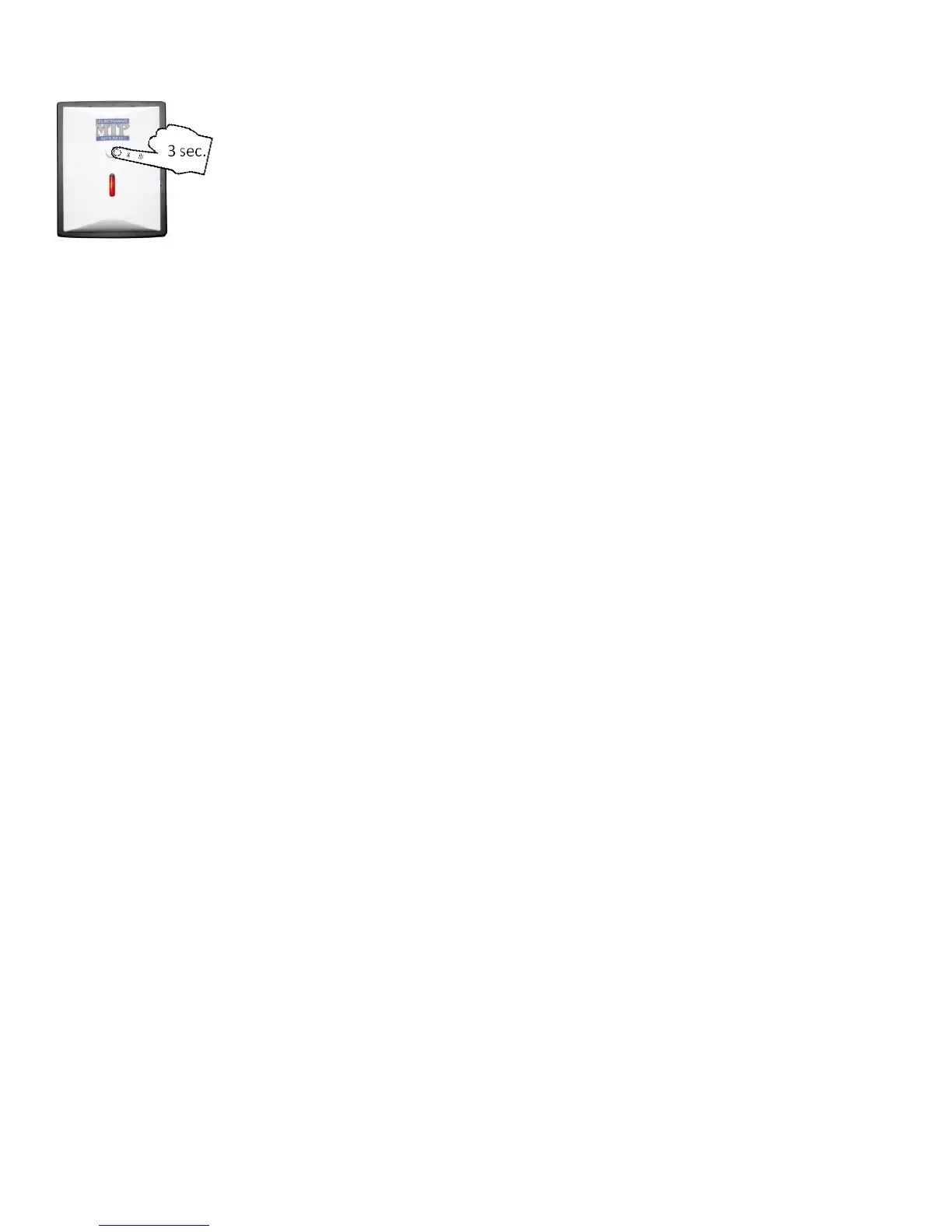

Push and hold the button (on transmitter) for 3 seconds, the LED light will change color.
To change the light color again, release the button and push again for 3 seconds. Once
set, the LED will flash in the selected color.
The light color codes represent the following signal frequencies.
Red light = 10s
Blue light = 15s
Blue + Red light = 20s
Sensor Clamps
Each transmitter can support up to 3 sensor clamps. All sensor clamps are detachable from the transmitter.
The measurement range of 18mm clamp is 0.2amps to 200amps.
Accuracy: for range 0.2-1amps, 20%; for 1-150amps, 7%; for 150-200amps, 15%
Transmitter can be used with 25mm clamp, sold separately.
The measurement range of the 25mm clamp is 0.2amps to 200amps.
Accuracy: for range 0.2-1amps, 35%; for range 1-200amps, 15%.
The transmitter for 18mm clamp cannot be used with 25mm clamp and vice versa.
