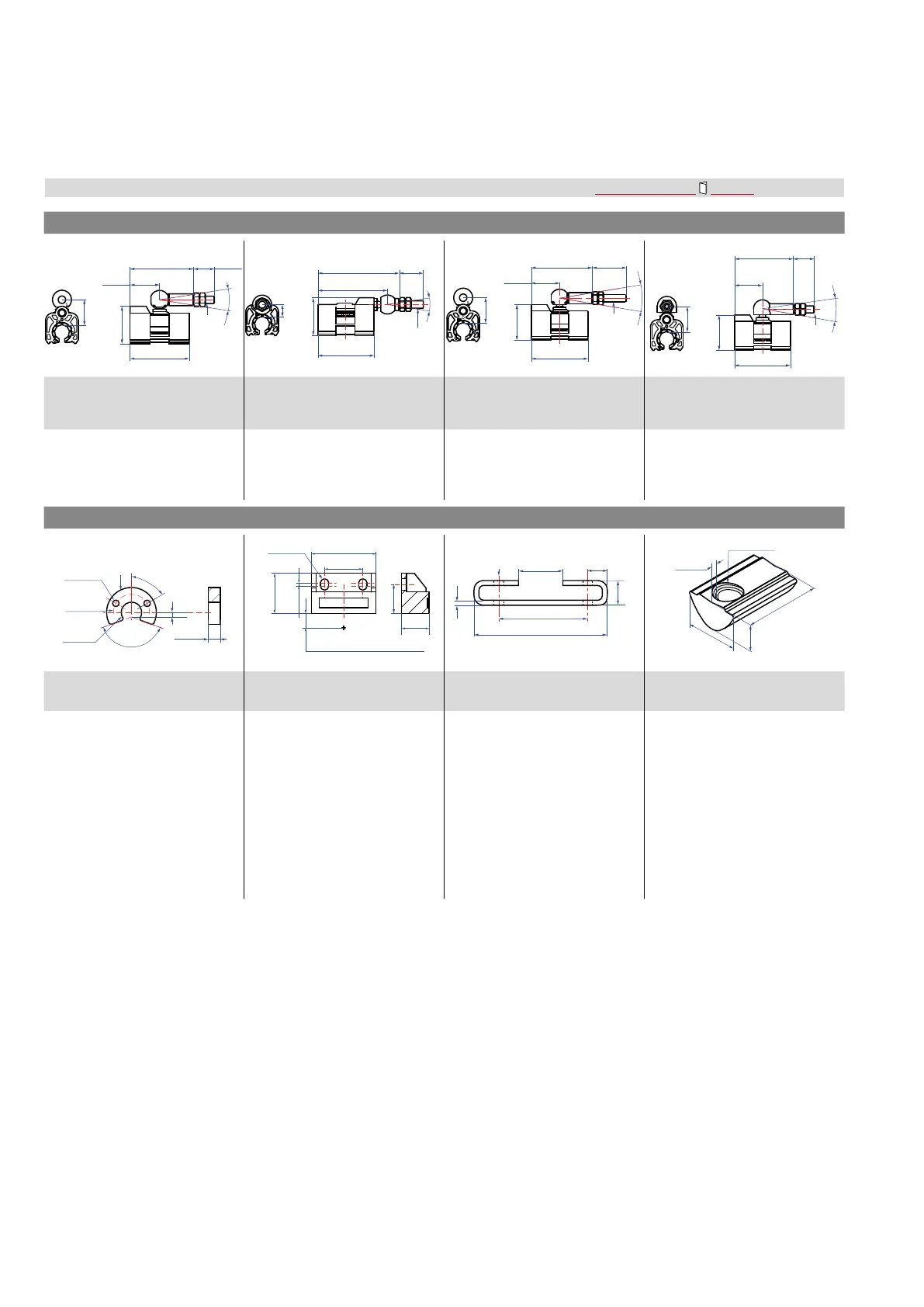

4.8 Frequently ordered accessories for sensor model RP5 – Additional options available in our Accessories Guide
551 444
Position magnets
M5
20
(0.79)
43
(1.69)
14
(0.55)
17.2 (0.67)
40 (1.57)
18°
25.3 (1)
40 (1.57)
18°
57 (2.24)
14
(0.55)
25.3 (1)
8.2 (0.32)
49 (1.93)
M5
17.2 (0.67)
24
(0.94)
18°
20
(0.79)
43
(1.69)
40 (1.57)
M5
25.3
(1)
18°
40 (1.57)
25.3
(1)
20
(0.79)
42
(1.65)
15.2
(0.6)
16.6 (0.63)
M5
Magnet slider S, joint at top
Part no. 252 182
Magnet slider V, joint at front
Part no. 252 184
Magnet slider N
longer ball-joint arm
Part no. 252 183
Magnet slider G, backlash free
Part no. 253 421
Material: GRP, magnet hard ferrite
Weight: Approx. 35 g
Operating temperature:
−40…+85 °C (−40…+185 °F)
Material: GRP, magnet hard ferrite
Weight: Approx. 35 g
Operating temperature:
−40…+85 °C (−40…+185 °F)
Material: GRP, magnet hard ferrite
Weight: Approx. 35 g
Operating temperature:
−40…+85 °C (−40…+185 °F)
Material: GRP, magnet hard ferrite
Weight: Approx. 25 g
Operating temperature:
−40…+85 °C (−40…+185 °F)
Position magnets Mounting accessories
Ø 32.8
(Ø 1.29)
Ø 23.8
(Ø 0.94)
Ø 13.5
(Ø 0.53)
Ø 4.3
(Ø 0.17)
60°
140°
3
(0.12)
7.9
(0.31)
19.5 (0.77)
1.5
(0.06)
33 (1.3)
14
(0.55)
20.5
(0.81)
14.9 (0.59)
8 ± 2 (0.31 ± 0.08)
Distance to sensor element
Ø 4.3
(Ø 0.17)
4 holes
Ø 5.3 (Ø 0.21)
28 (1.1)
9 (0.35)
50 (1.97)
2 (0.08)
68 (2.68)
9.5 (0.37)
Mounting clamp width:
14.6 (0.57)
4
(0.16)
11.5
(0.45)
4.5
(1.8)
8
(0.31)
M5 thread
U-magnet OD33
Part no. 251 416-2
Block magnet L
Part no. 403 448
Mounting clamp
Part no. 400 802
T-nut
Part no. 401 602
Material: PA ferrite GF20
Weight: Approx. 11 g
Surface pressure: Max. 40 N/mm
2
Fastening torque for M4 screws: 1 Nm
Operating temperature:
−40…+105 °C (−40…+221 °F)
Material: Plastic carrier with hard ferrite
magnet
Weight: Approx. 20 g
Fastening torque for M4 screws: 1 Nm
Operating temperature:
−40…+75 °C (−40…+167 °F)
This magnet may infl uence the sensor
performance speci cations for some
applications.
Material: Stainless steel (AISI 304) Fastening torque for M5 screw: 4.5 Nm
Controlling design dimensions are in millimeters and measurements in ( ) are in inches
Marked version for sensors with inter-
nal linearization: Part no. 254 226
