MTS Systems FlexTest SE User Manual

MTS 793 Controller Hardware
FlexTest IIm Controller Connections
192
J50 connector The J50 connectors provide two-way communication between the
FlexTest controller and the Eurotherm temperature controller.
Temperature
controller hardware
resource
For more information on adding the Eurotherm hwi file resource, see
the Hwi File Editor manual.
Program Eurotherm
Temperature
Controller
Use Station Builder to configure a Eurotherm temperature controller.
Refer to “How to Program a Eurotherm Temperature Controller” in the
MTS 793 Control Software manual for more information.
m
498
RS-485
TRANSITION
MODULE
+12V +5V
J50A
J50B
J50C
J50D
J7 SERIAL

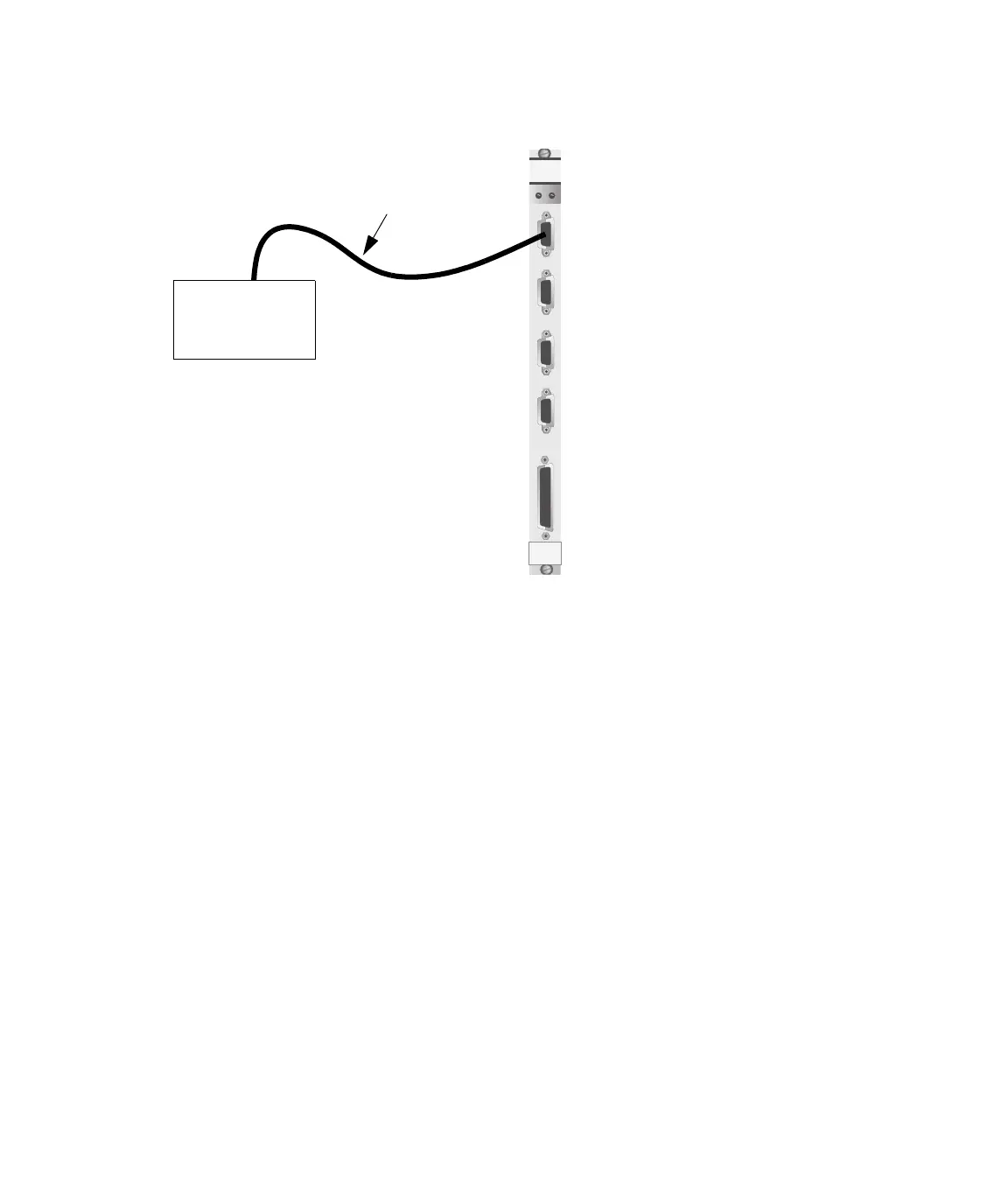

498 RS-485 Transition Module
Cable the Eurotherm temperature
controller to the proper
J50 serial
connector using cable PN 055-634-3XX.
PN 055-634-3XX
Eurotherm
Temperature
Controller
