MTS Systems FlexTest SE User Manual

MTS 793 Controller Hardware FlexTest IIm Controller Connections
193
Cabling for External Command Inputs
Cabled properly, your FlexTest controller can receive programming
from an external controller.
How to Enable and Run External Command Inputs
To enable an external command source, perform the following:
1. “Cable the controllers.” on page 193.
2. “Allocate external command resources in Station Builder.” on page
194.
3. “Adjust the command signal with Station Manager.” on page 194.
4. “Start the External Command.” on page 194.
Task 1 Cable the controllers.
Cable the external programmer analog out connector to a 498 Input
Filter connector. Analog I/O connectors are located on the rear of the
test processor chassis.
Note If you cable the hardware before you create a station configuration
file, note the connector you use on the FlexTest IIm rear console.
J11
(CH 1-4)
J12
(CH 5-8)
498
INPUT
FILTER
CH 1
CH 2
CH 3
CH 4
CH 5
CH 6
CH 7
CH 8

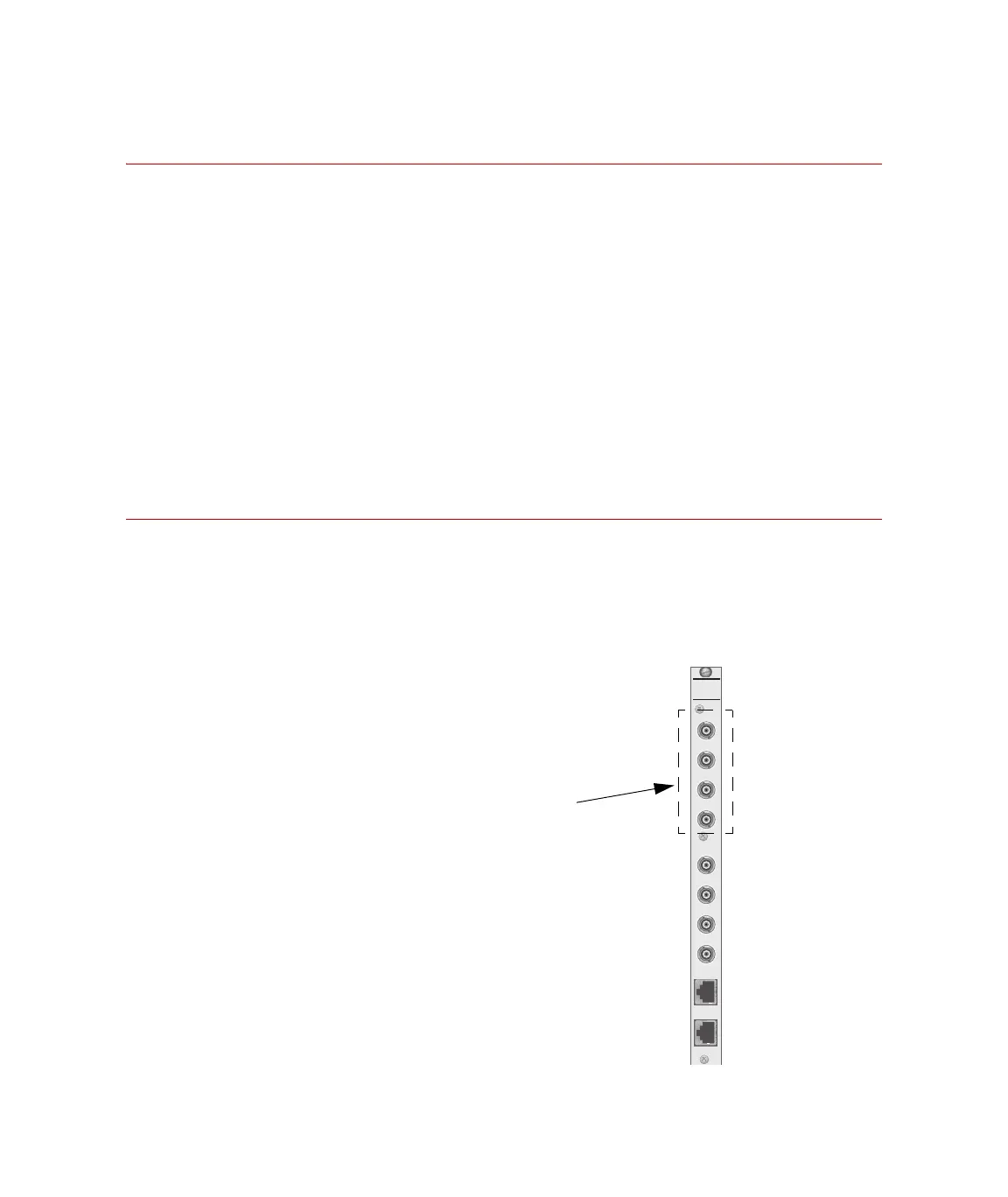

498 Input Filter
This module includes 8 BNC
connectors that provide filtered
analog inputs to the 498.65
ADDA module.
Four analog inputs are available
with the standard ADDA module.
The other four inputs require a
second ADDA module.
