9
Motors and Commutation
The amplifier can commutate 4-pole, 6-pole, 8-pole, and brush motors in its standard

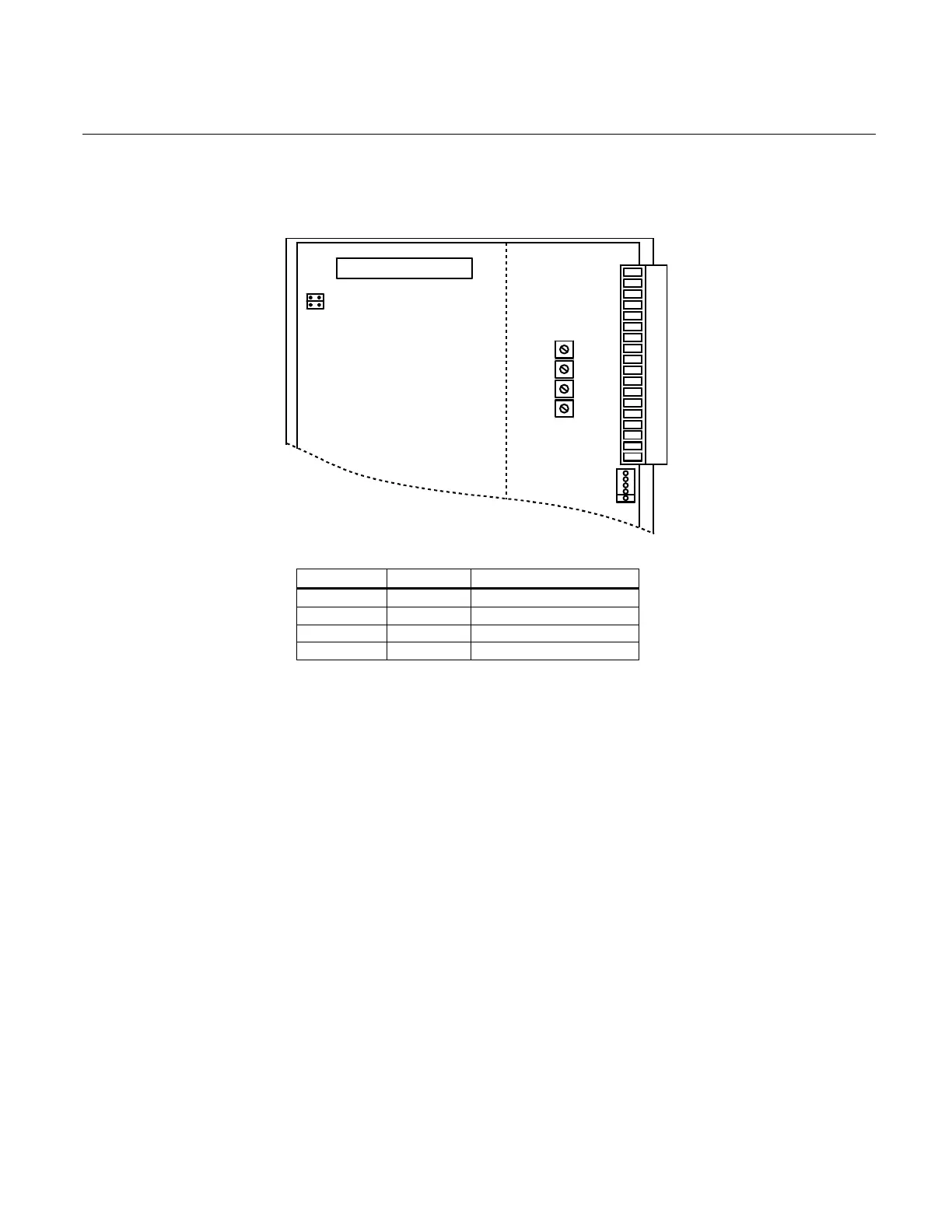

configuration and other factory options are practical. JP3 and JP4 allow for configuration
changes. Drives are shipped set for 6-pole operation. Never change these jumpers with
power on.
JP3
JP4
JP3 JP4 MOTOR TYPE
OUT OUT BRUSH
IN OUT 6-POLE
OUT IN 4-POLE
IN IN 8-POLE
For brush motor operation, no resolver alignment is required and the R lead connects to
armature (+) and the T lead connects to armature (-). (+) (-) will cause clockwise rotation from
the shaft end of the motor.
