MTS Systems MPA-03 SL - Stator Wiring

17

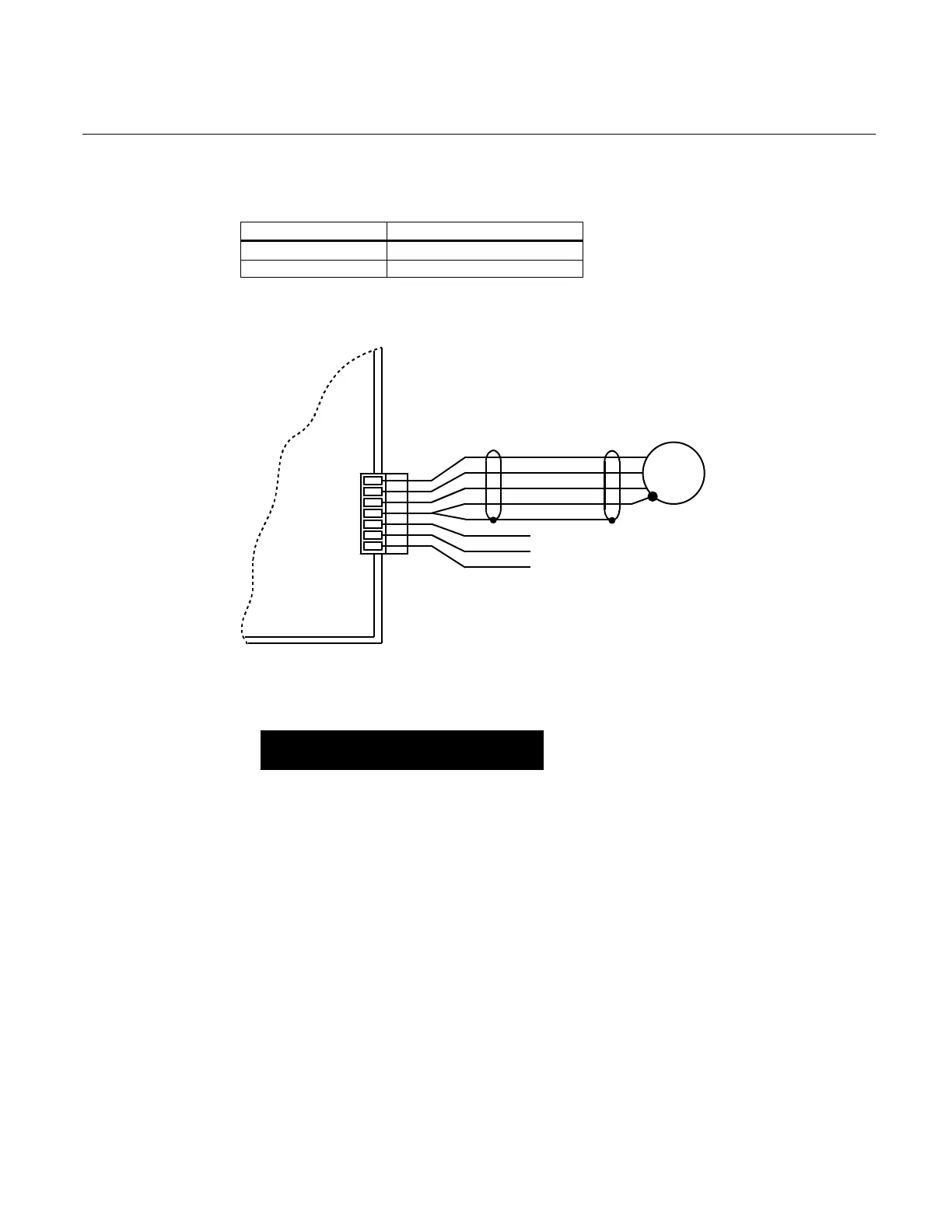

Stator Wiring
The locked rotor stator current is equal to the drive's continuous rating, and for either low
speed or locked rotor conditions, the stator must withstand this continuous rating.
Model Locked Rotor
MPA-03 SL 3 amps
MPA-06 SL 6 amps
It is acceptable and recommended that four conductor shielded cable be used.
TB2
1
7
1
2
3
4
4
5
6
7
SHIELD
T
S
R
GND
GND
L2
L1
FRAME
MOTOR
A GND connection is supplied as a means to ground the motor frame to earth ground.
If shielded cable is not used, it is recommended that the RST and GND wires be twisted.
NOTE
If the resolver feedback wiring is to be run
adjacent to the RST motor wiring, the motor
wiring should be 100% shielded (foil and
braid).
