MTS Systems MPA-03 SL - Simulated Encoder Option

12
Simulated Encoder Option
TB2
1
7
TB1
1
18
T
O
P
V
I
E
W
ENC01.PCB
DB9 FEMALE
CONNECTOR
MARK LED

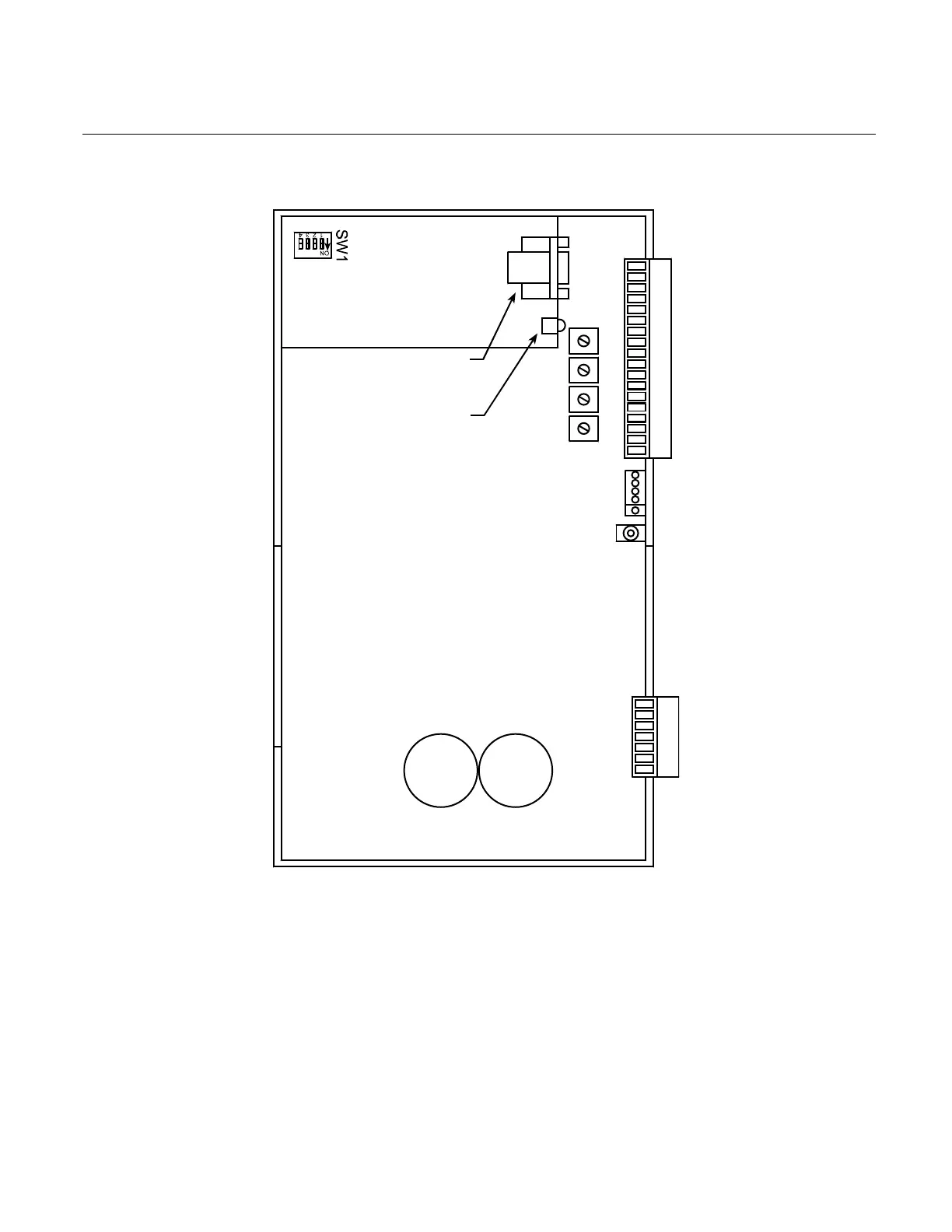

The ENC01.PCB plugs into the drive mating connector and is held in position with two #6-32
screws. For external counting or position control, a 9-pin D type female connector that has
TTL differential outputs is provided. This simulates quadrature encoder channel A and
channel B signals. A differential mark signal is also available.
