2.4 Sensors, actuators and injectors – Overview

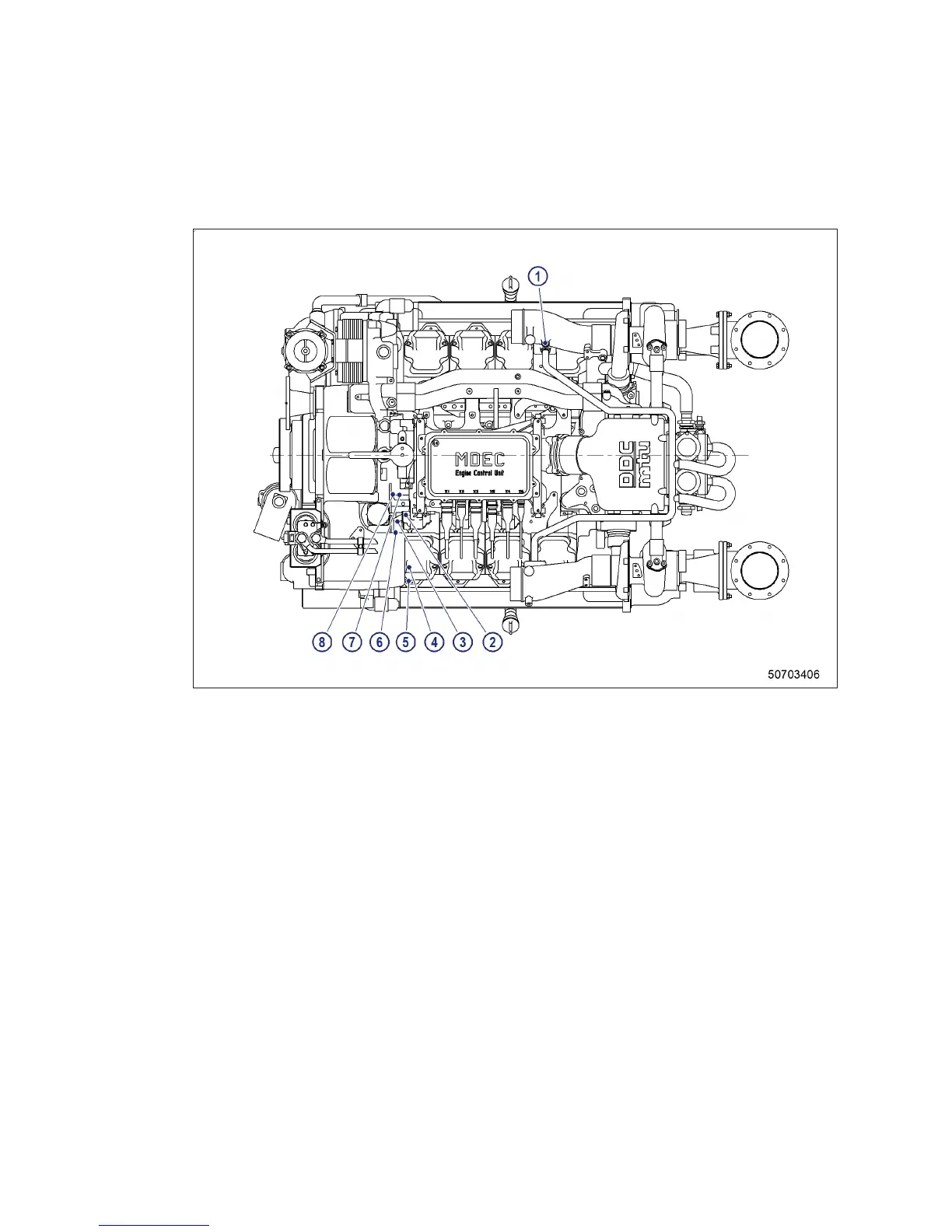

Engine overhead view
1 Intake air temperature
2 Fuel pressure after filter
3 Fuel temperature
4 Lube oil differential pres‐
sure
5 Lube oil pressure
6 Coolant level
7 Lube oil temperature
8 Lube oil pressure
28 | General Information | MS150031/05E 2013-01
