8.5 Belt Drive
8.5.1 Drive belt – Condition check
Preconditions
☑ Engine is stopped and starting disabled.
WARNING
Exposed rotating parts can eject drawn-in components or draw in body parts.
Risk of crushing, limbs or extremities may be pinched, trapped or entangled!
Risk of injury due to flying parts!
• Install rotating components at a suitable distance from other components.
• Never operate the engine without protective covers or safety guards which meet applicable accident
prevention regulations.
• Ensure that the safety guards can prevent body parts from being drawn in by rotating components.
Drive belt – Condition check
1. Remove cover.

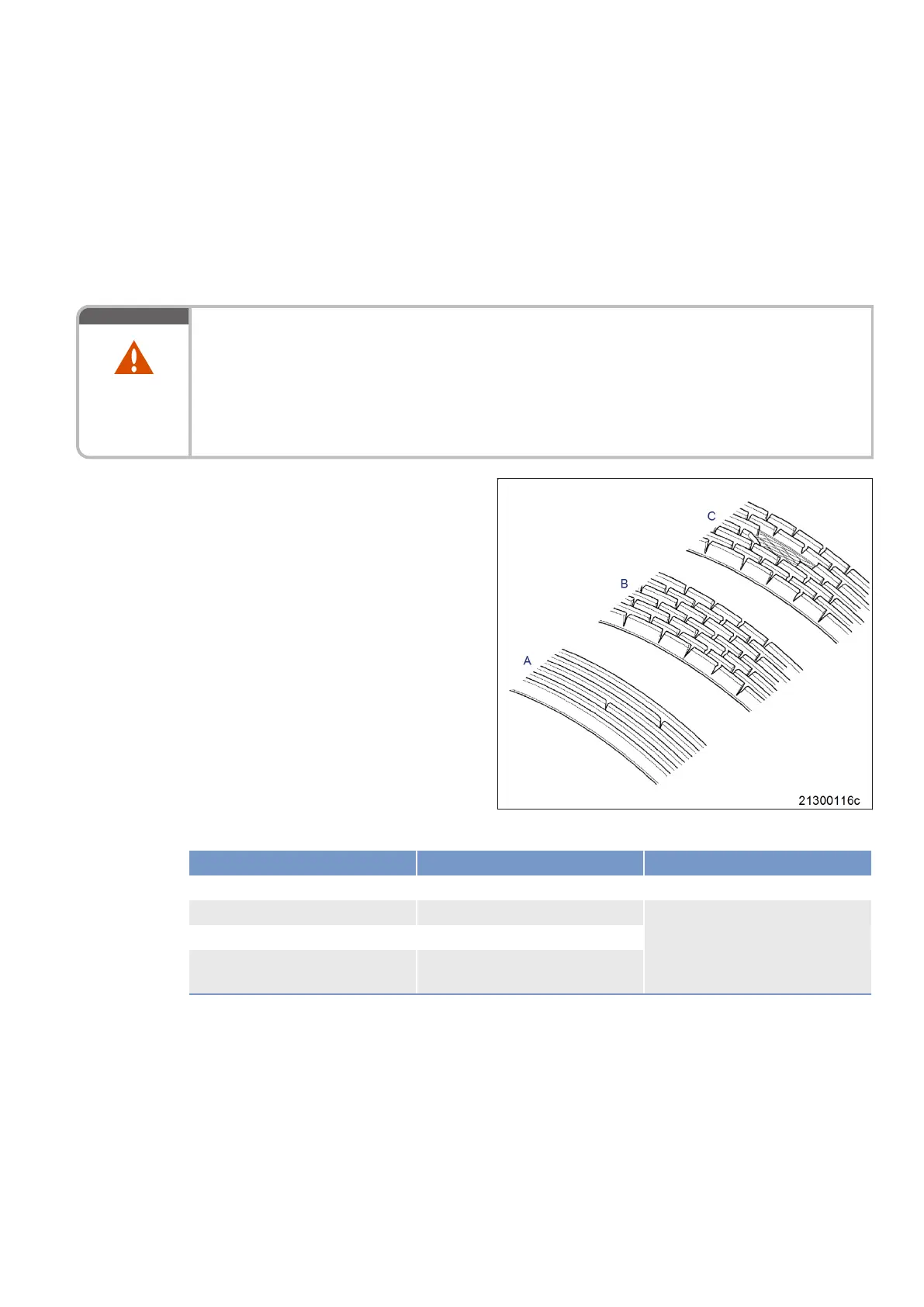

2. Checking drive belt condition:
Item Findings Action
Drive belt A Singular cracks None
Drive belt B Cracks on entire circumference Replace (→ Page 153)
Drive belt C Chunking
Drive belt Belt is oily, shows signs of over-
heating
3. Install cover.
M015650/06E 2018-05
| Belt Drive | 107
TIM-ID: 0000000920 - 014
