8.15.2 Centrifugal oil filter – Cleaning and filter-sleeve replacement
Preconditions
☑ Engine is stopped and starting disabled.
Special tools, Material, Spare parts
Designation / Use Part No. Qty.
Torque wrench, 8–40 Nm
F30043446 1
Ratchet
F30027340 1
Cold cleaner (Hakutex 60 MTU)
X00070585 1
Filter sleeve
(→ Spare Parts Catalog)
Sealing ring
(→ Spare Parts Catalog)
WARNING
Oil is hot.
Oil can contain residue/substances which are harmful to health.
Risk of injury and poisoning!
• Allow the product to cool to below 50 °C before beginning work.
• Wear protective clothing, protective gloves and goggles/safety mask.
• Avoid contact with skin.
• Do not inhale oil vapor.
WARNING
Compressed air gun ejects a jet of pressurized air.
Risk of injury to eyes and damage to hearing, risk of rupturing internal organs!
• Never direct air jet at people.
• Always wear safety goggles/face mask and ear defenders.
Centrifugal oil filter – Cleaning
and filter-sleeve replacement

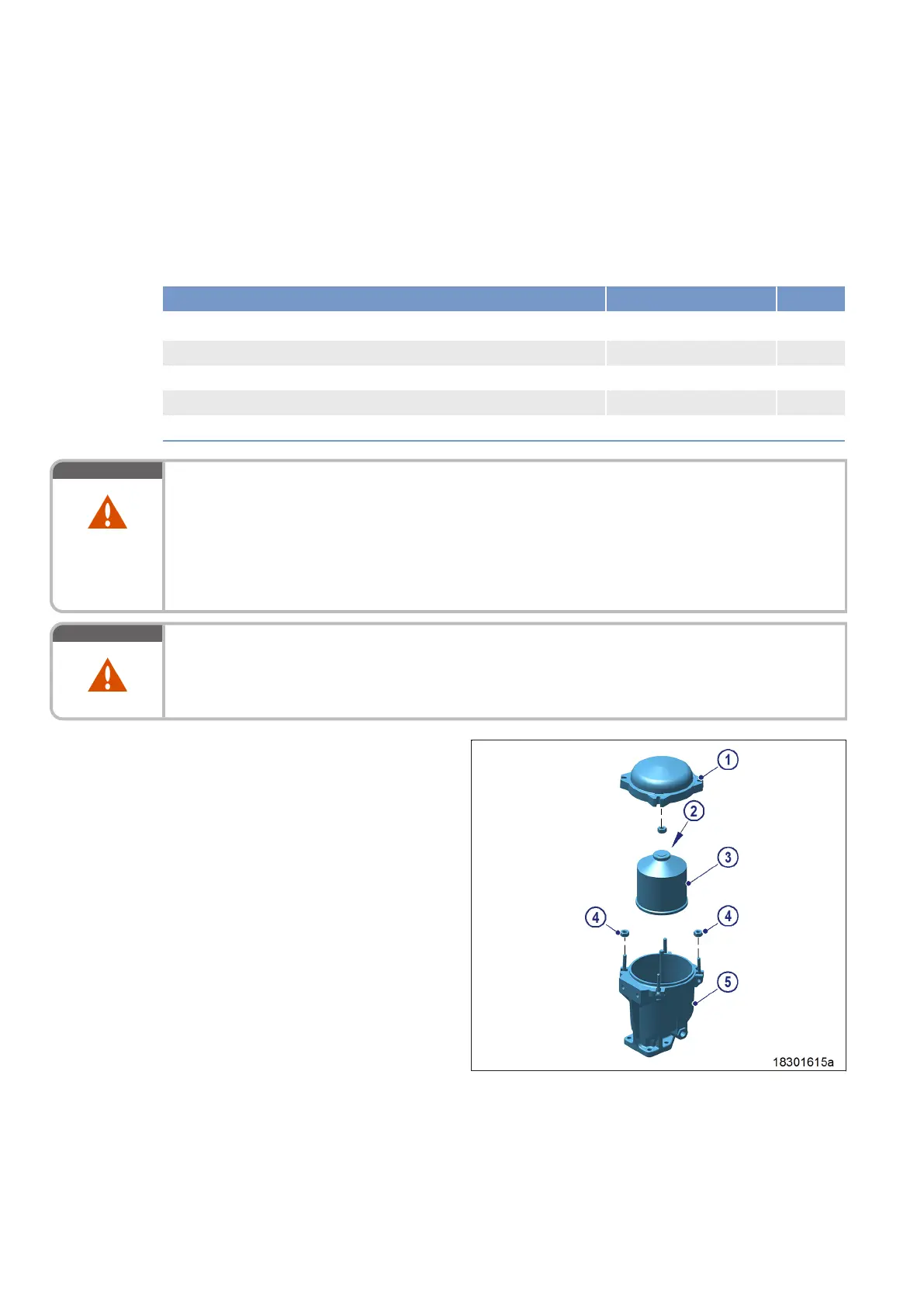

1. Loosen nuts (4) crosswise.
2. Remove housing cover (1).
3. Carefully remove rotor (3) from lower part of
housing (5).
4. Remove nut (2).
5. Carefully remove rotor cap.
6. Remove filter sleeve from rotor cap.
7. Measure thickness of oil residues on filter
sleeve.
Result: If the oil residues exceed the maximum layer
thickness of 25 mm, shorten the mainte-
nance interval.
8. Disassemble rotor tube, filter cone and rotor
bottom.
9. Wash out rotor cover, rotor tube, filter cone
and rotor bottom with cold cleaner.
10. Blow out with compressed air.
11. Check sealing ring, fit new one if necessary.
12. Insert new filter sleeve into rotor cap with the
smooth paper surface facing the outer wall.
13. Assemble rotor tube, filter cone and rotor
bottom with sealing ring.
14. Carefully insert rotor in lower part of housing.
138 | Oil Filtration / Cooling | M015650/06E 2018-05
TIM-ID: 0000051622 - 007
