8.11.2 Air filter – Removal and installation
Preconditions
☑ Engine is stopped and starting disabled.
DANGER
Falling from great heights.
Risk of serious injury – danger to life!
• When working high on the equipment, always use suitable ladders or work platforms.
• Use personal protective equipment.
WARNING
For all described tasks at the genset:
Risk of injury!
• For all tasks, the respective required personal protective equipment (safety shoes, ear protection,
protective gloves, safety goggles, respiratory protection, etc.) is to be used.
NOTICE
Stepping or climbing on the genset to perform installation tasks is to be avoided.
Otherwise, there is a risk of component damage or leakage!
• Use suitable and approved climbing aids or work platforms.

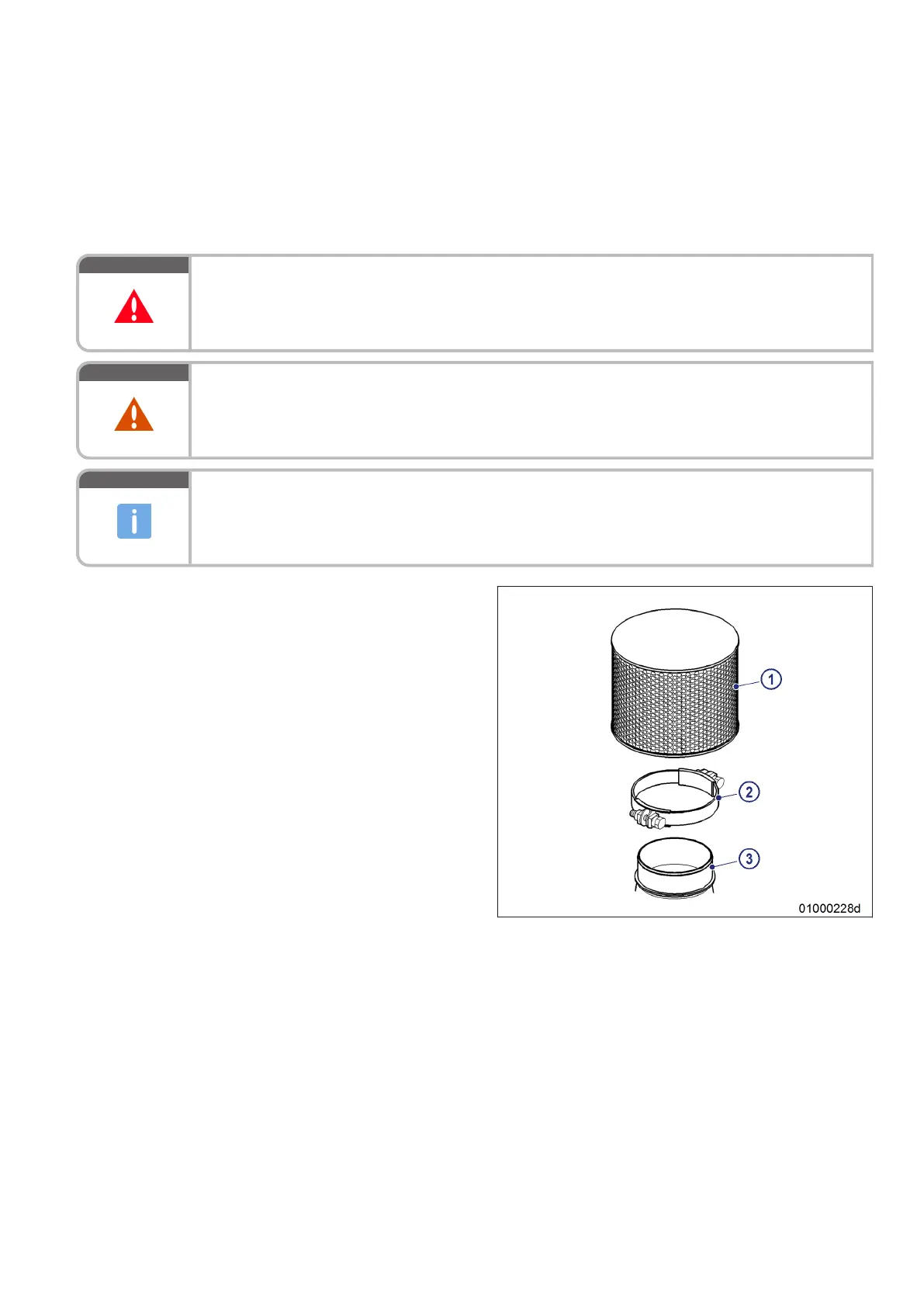

Removing and installing air fil-
ter
1. Release clamp (2).
2. Remove air filter (1) and clamp (2) from con-
necting flange of intake housing (3).
3. Verify that there are no objects in the con-
necting flange of the intake housing (3) and
clean it.
4. Place new air filter (1) with clamp (2) onto in-
take housing (3).
5. Tighten clamps (2).
M015650/06E 2018-05 | Air Filter | 131
TIM-ID: 0000005457 - 013
