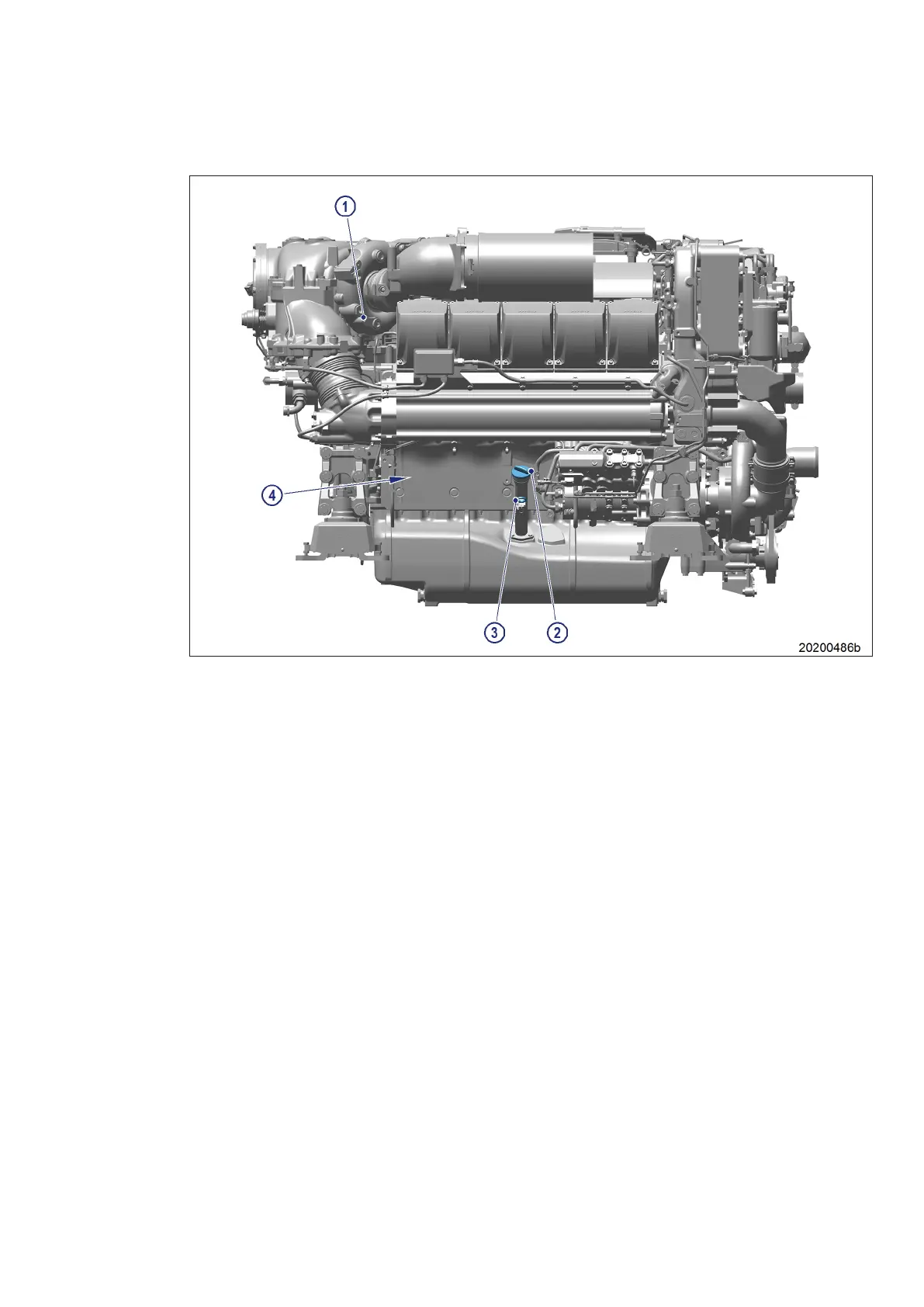

Right side
1 Engine coolant drain plug
(M14x1.5)
2 Oil filler neck (connection
on left or right engine se-
lectable)
3 Oil dipstick (connection on
left or right engine selecta-
ble)
4 Leak-fuel tank
M015650/06E 2018-05 | Coolant Circuit, General, High-Temperature Circuit | 143
TIM-ID: 0000038198 - 003
