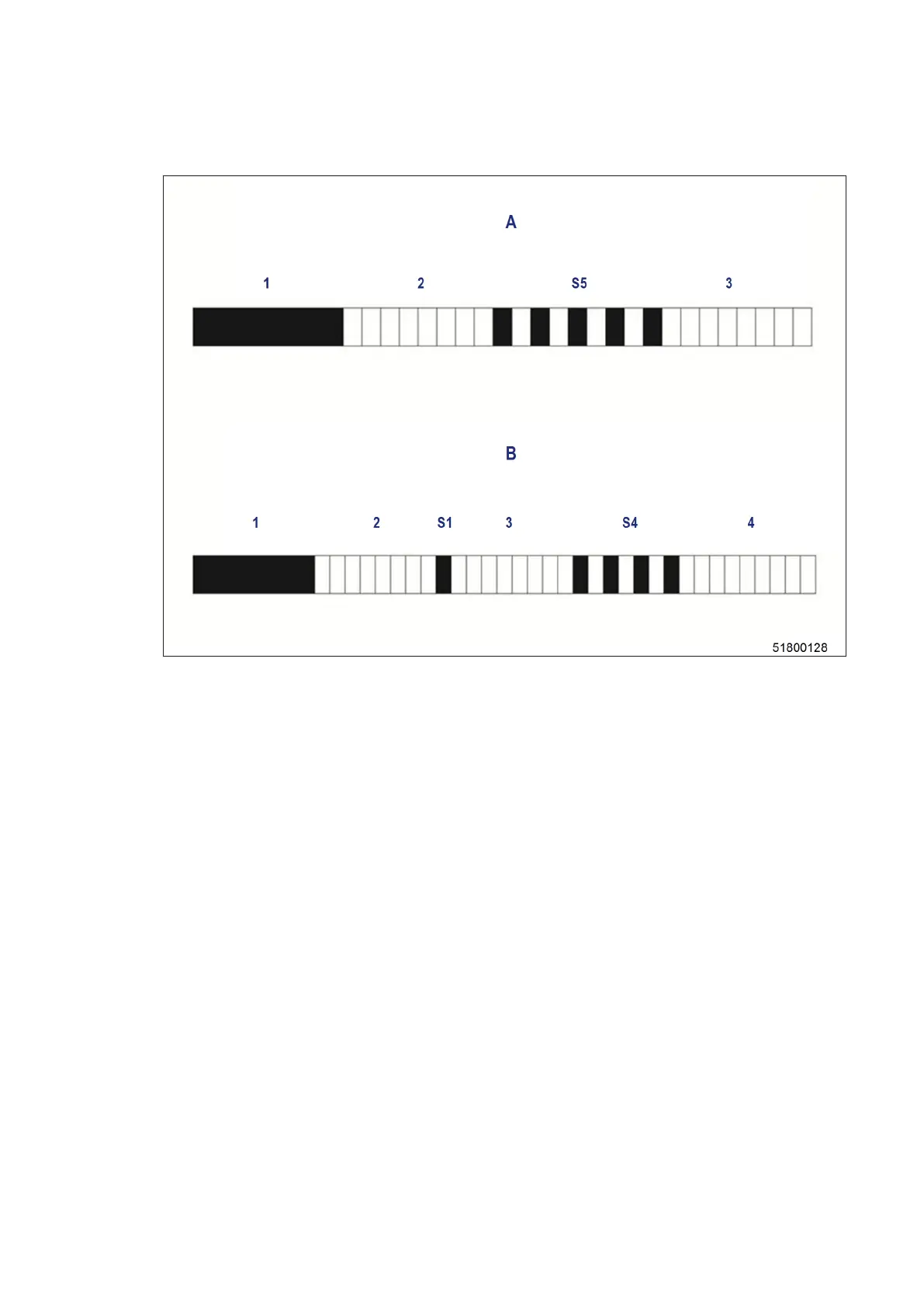

Sample flashing sequences
A Fuse S5 failure (1/2 second
steps)
B Fuse S1 and fuse S4 failure
(1/2 second steps)
Note:
These bit patterns are continuously transmitted.
The CAN message “Status of internal power supply” also contains information on the current path states of
the EIM 2.
172 | Accessories for (Electronic) Engine Governor / Control System | M015650/06E 2018-05
TIM-ID: 0000038009 - 005
