MTU 16V2000M72 - Page 25

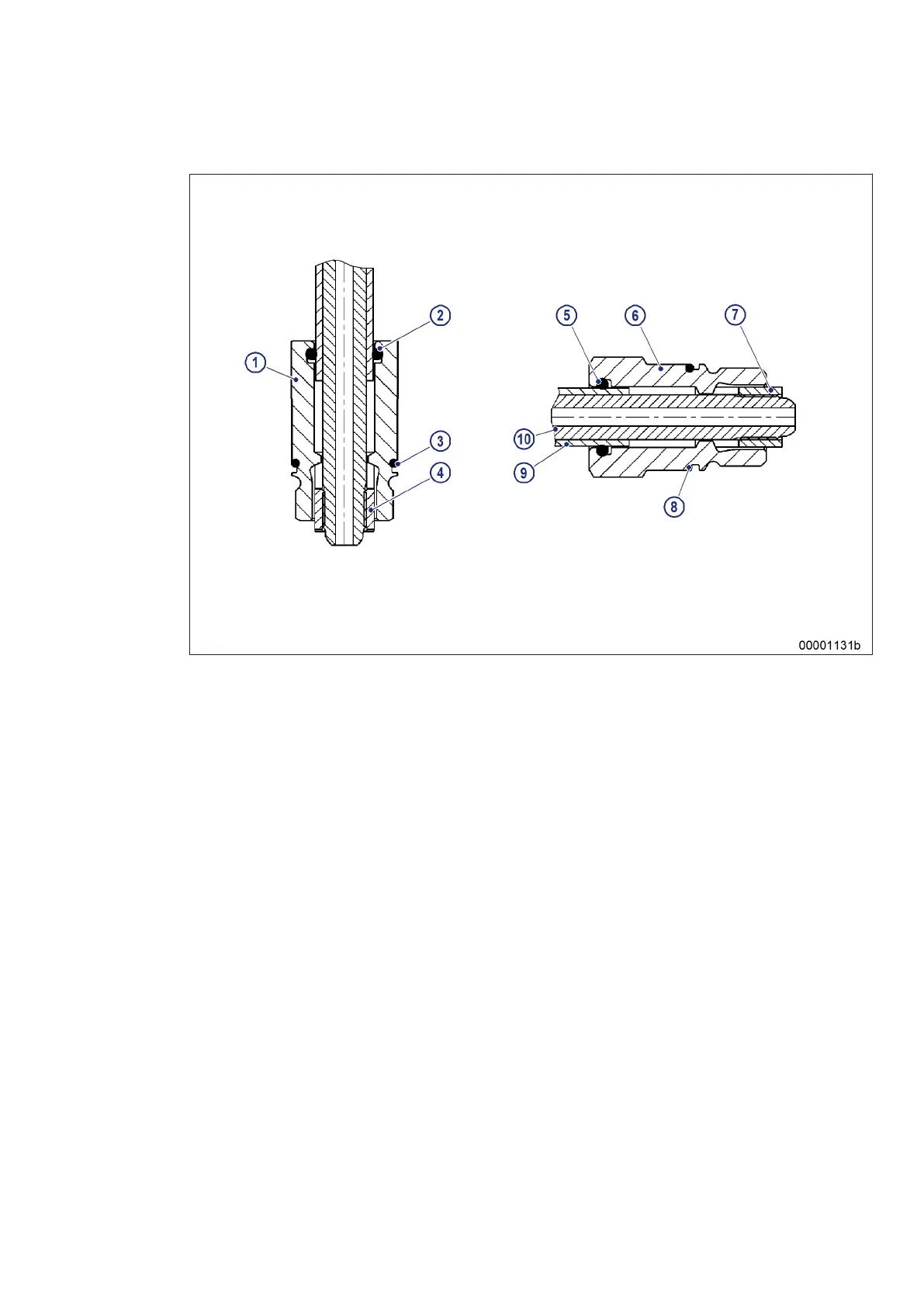

HP line between distributor and HP accumulator
1 Jacket pipe
2 O-ring
3 O-ring
4 Thrust ring
5 O-ring
6 Thrust screw
7 Thrust ring
8 O-ring
9 HP line
10 Pressure pipe
Leak-off fuel caused by leakages from the sealing cones or the HP lines is returned to the HP pump, from
where it is routed at atmospheric pressure into a level-monitored leak-fuel tank.
