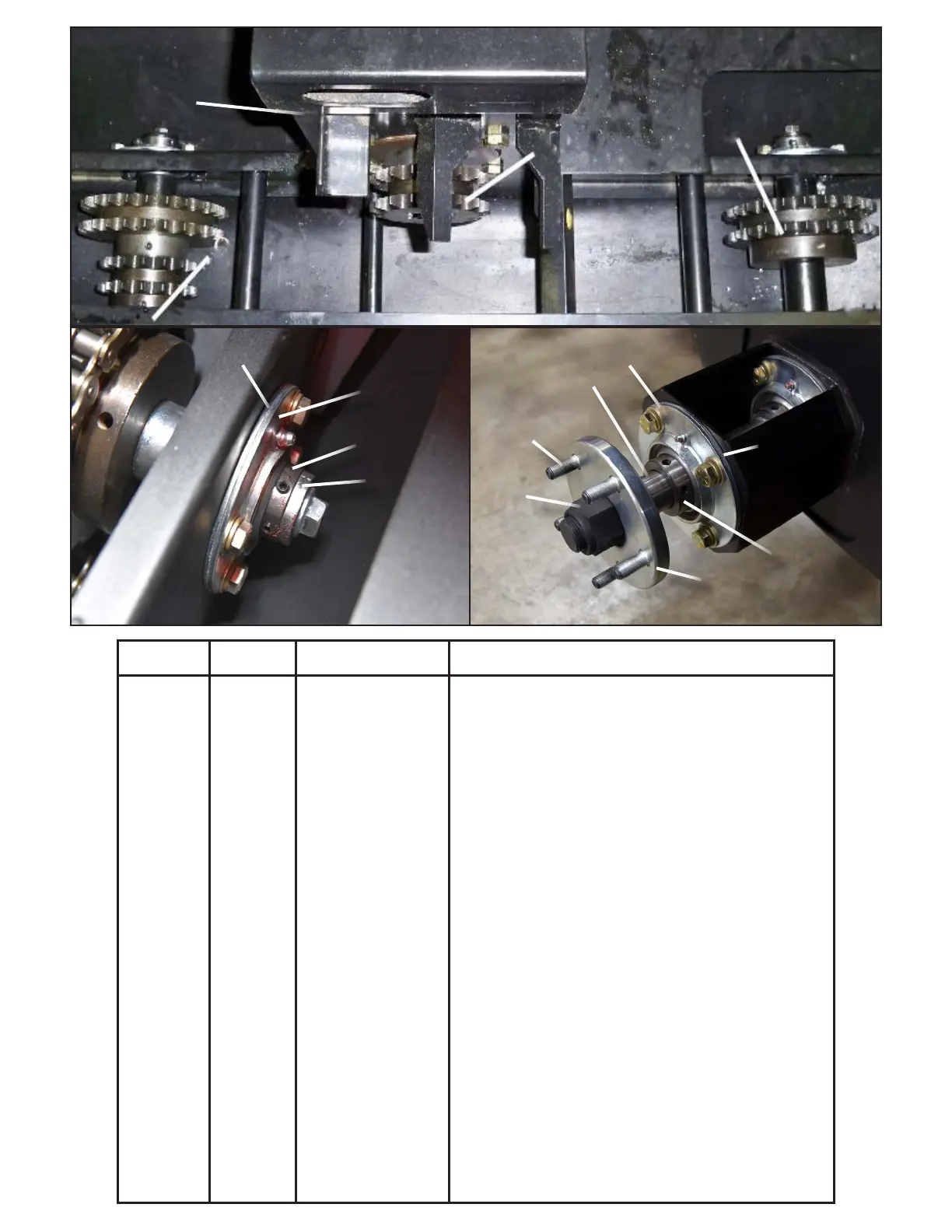

Mudd-Ox XL - Page 101

101
1010
99
1515
22
33
44
11
55
66
88
77
1313
1212
1414
1111
Ref Qty. Part # Description
1
2
M-2368
400 Series Hydraulic Motor
2
4
M-1425
XL Axle Tube Spaces (1.550'')
3
2
M-3598-14T
14T Drive Sprocket
4
4
M-1321
24T D60 Sprocket
5
8
M-2459
207 Flange (Inner)
6
8
M-2458
207 Flange (Outer)
7
8
M-2455
Inner Axle Bearing
8
8
M-1441
XL Axle End Washer
9
8
M-2042
Axle Nut
10
40
M-1401
1/2-20 Lug Bolt
11
8
M-1671
XL Axle (2017+)
12
16
M-2456
209 Flange (Outer)
13
16 M-2457 209 Flange (Inner)
14
16
M-2538
Outer Bearing
15
8
M-1849
XL/GT Axle Hub
