68

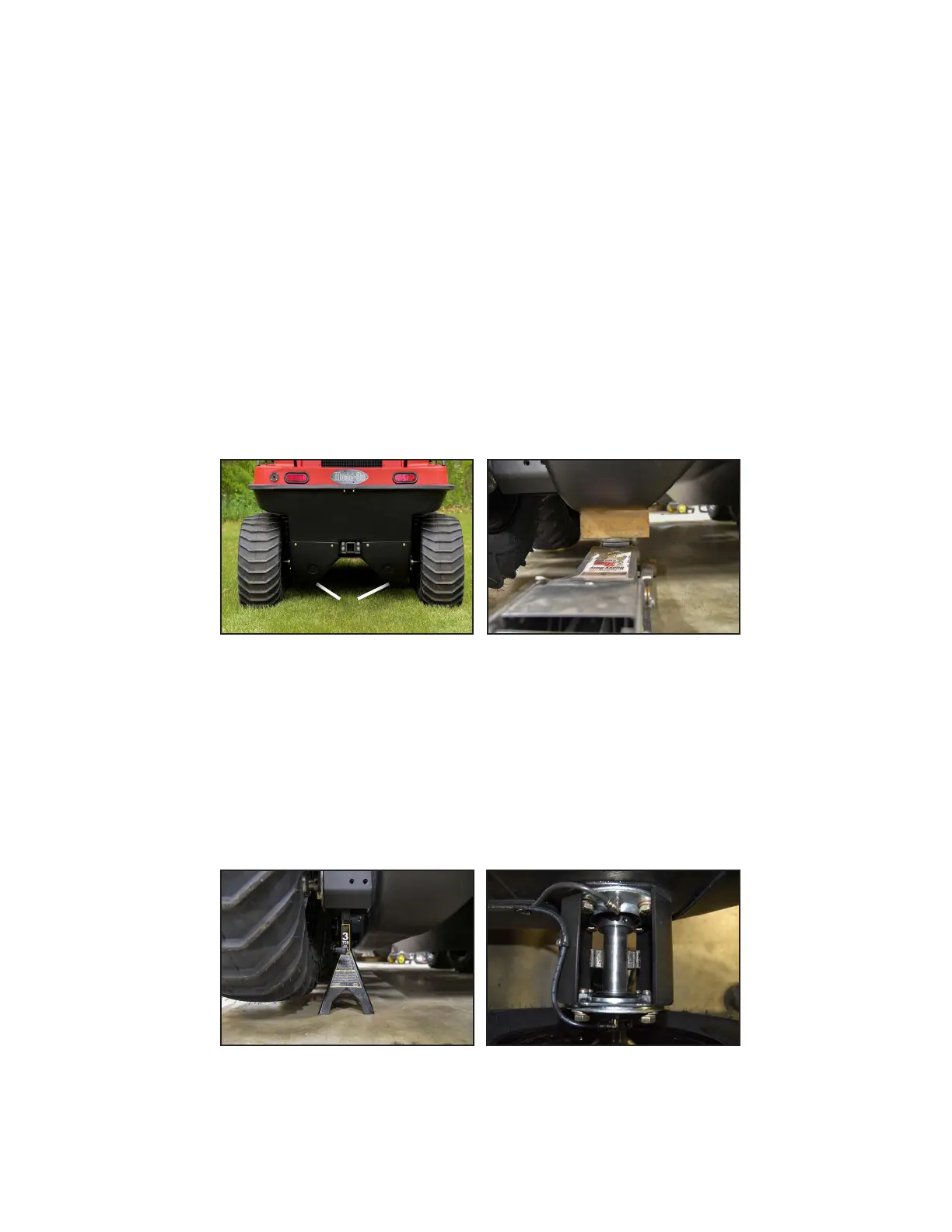

Frame Support Here
Figure-1
Distribute the Load
Figure-2
Inside bearing box
Figure-3
Supporting the axle only
Figure-4
Jack Points
Always be cautious and safe. There are two methods for raising the vehicle as described below. Select which meth-
od is required for your storage or maintenance needs. Note: It may be necessary to remove the wheels while using
the jack stand method. See Wheel Removal under Tires/Wheels for instructions. Never attempt to operate or
spin the axles when supported with jack stands, as the Mudd-Ox will roll off and may cause serious harm to both
persons and vehicle. If the axles must spin to diagnose or perform maintenance, use the block of wood method.
Raising the Mudd-Ox
1. Engage the parking brake, ensure it works well. Locate the lower body of the Mudd-Ox as shown as “A” in Fig-
ure-1. These outer sections are where the vehicle can be supported with a jack. They’re molded around the inner
frame, providing absolute strength and stability.
2. Use a floor jack and block of wood rated to hold the weight of the Mudd-Ox including all installed accessories
and cargo. Place wood on top of jack, and begin to lift the vehicle as shown in Figure-2. Raise enough so the
wheels are not touching the ground. Note: Do not attempt to raise the front and back ends of the Mudd-Ox at
the same time. Instability can occur and cause serious injury or death. Only jack on the flat bottom sections of
the body, and not on a curved radius.
3. Once a single corner is raised, there are two possible routes for supporting the vehicle:
A. Jack stands: These can be placed directly under the Mudd-Ox axles as shown in Figure-3. It is important to
only support the axles, and not the bearing extension box. Figure-4 shows a 3-ton jack stand fitting inside the
box. At least (4) jack stands are required, one per each corner. Place the first jack stand under the axle that’s
raised in the air.
AA
To Next Page
