Towing

Tow Points

Do not attempt to tow the Mudd-Ox until completing all steps in this section.

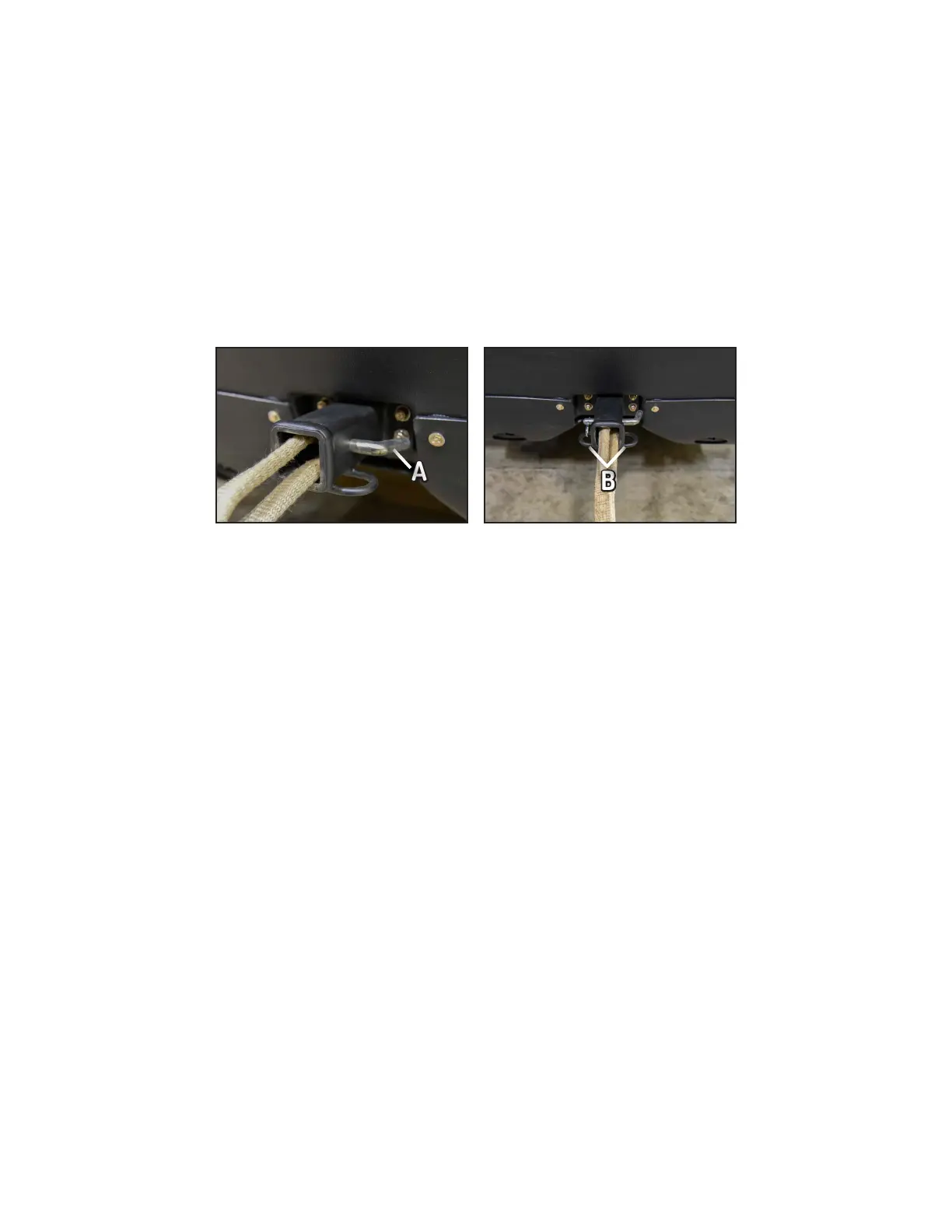

1. The rear hitch can serve as a tow point. Push the closed loop of the tow strap inside the hitch, then install the

hitch pin inside the loop (A in Figure-1). This will keep the strap from sliding out. Note: For safety measures, nev-

er attempt to tow from the (2) safety chain mounts shown as “B” in Figure-2, nor install a ball hitch and wrap

the strap around it for towing. These actions may result in serious injury or death.

2. Figure-2 under Transportation shows wrapping a strap around the bearing boxes.

3. Figure-4 under Transportation shows hooking a strap to the tie downs.

Pin through the strap loop

Figure-1

Warnings

• Do NOT pull from the roll bar, or any other points than noted above. Excessive stress in poor points can cause the

vehicle to roll over.

• Keep the tow strap away from tires, as it can get wrapped around the axle.

• Always tow at 5 mph or slower.

XL is Operational

Select your available method of tow points, then proceed to Towing Steps.

XL is Inoperable

Set the parking brake, remove the lower seats, ﬂoor boards and engine cover. Look for the following. If there is a

broken chain, reference Towing Steps for information on removing.

• Broken chain: Remove from vehicle.

• Seized bearing: Remove the chain that connects the accompanying axle to the rest of the drivetrain. If an axle is

seized, it will remain seized, however the others will be able to turn freely.

• Engine or hydrostatics are seized: Remove the (2) chains that connect directly to the transmission.

• Debris in the drivetrain: Remove from vehicle.

Proper Hitch Towing

Figure-2
