Transportation Cont.

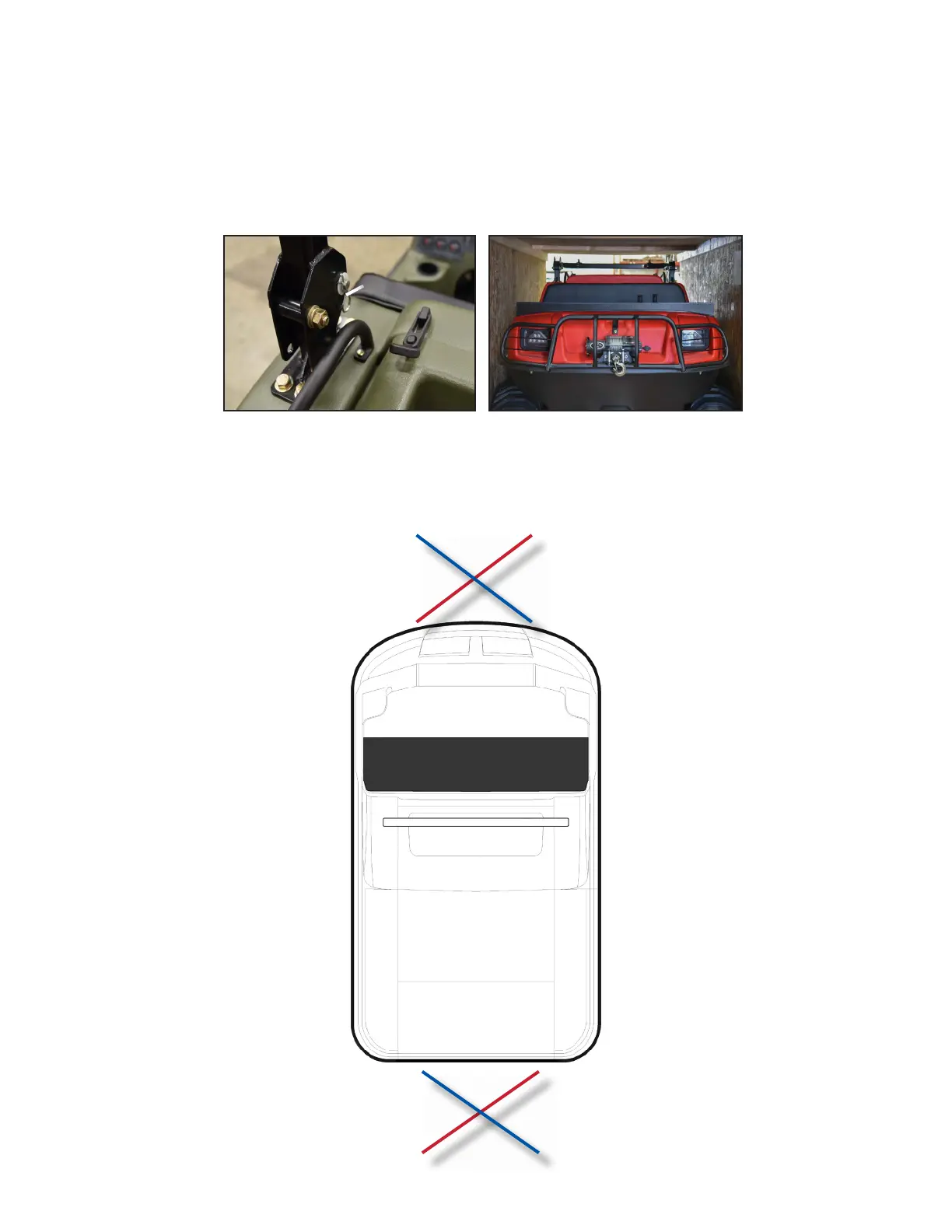

Folding the Roll Bar
The Mudd-Ox roll bar may be folded down for ease of transportation. There is (1) pin per each side of the roll bar
feet, directly over the engine cover (C in Figure-5). Simply pull out the R-pin to remove and push the pin out. At this
time the roll bar can be folded downwards towards the rear of the vehicle. Note: Never operate the Mudd-Ox with
the roll bar folded down. Serious injury or death may occur.
Roll Bar Pin
Figure-5
Roll Bar Down
Figure-6
