Fuel
XL uses gasoline. Become familiarized with your fuel system and the components associated with it.
Fuel Type
Always refer to engine owner’s manual for specific gasoline requirements.
Signs of Faulty Components
Before attempting any diagnostics, ensure the vehicle is not out of fuel, and there truly is a faulty component.
• Engine cranks over but will not start.
• No fuel is reaching the filter or engine itself
• Fuel filter is empty, most likely a bad fuel pump.
• Fuel level on the instrument panel is inaccurate with the level in the tank, most likely a bad sending unit (See
Electrical).

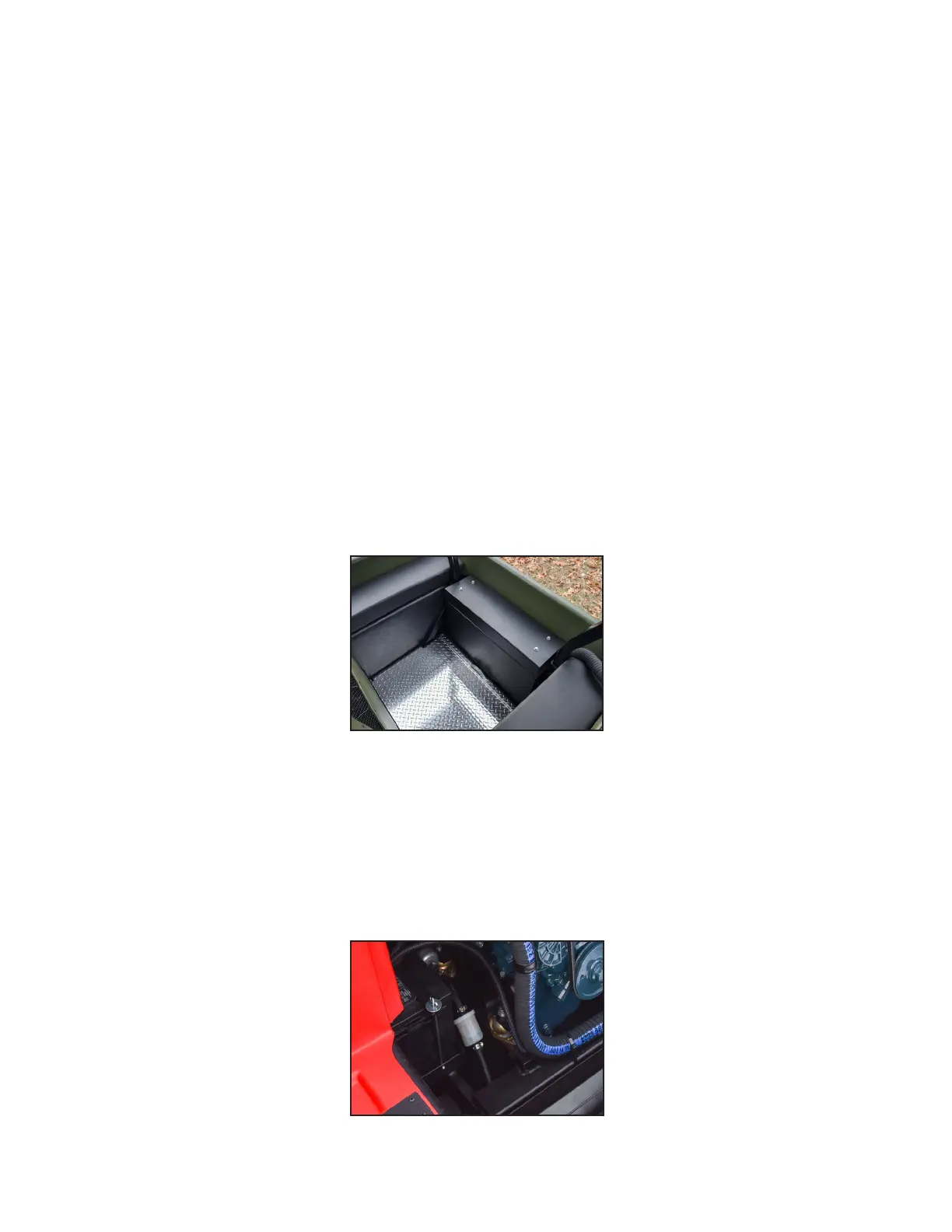

Location 1
The fuel tank is located in the rear of the Mudd-Ox. See Fuel Tank Access - Standard and Fuel Tank Access -
Rear Seat under Accessing the Mudd-Ox to gain access to its components. The fuel feed line (gas going into the
engine) connects to the bottom of the fuel tank, while the return line (unused gas leaving the engine) connects at
the top of the tank.
Fuel Tank
Figure-1
Location 2
Some fuel components are located directly on the engine. See Engine Cover Removal under Accessing the
Mudd-Ox to gain access to these components. Refer to engine owner’s manual for diagrams and information on
the fuel pump system. The fuel filter is located at the bottom left side, next to the battery.
Engine
Figure-2
