50
Electrical Cont.

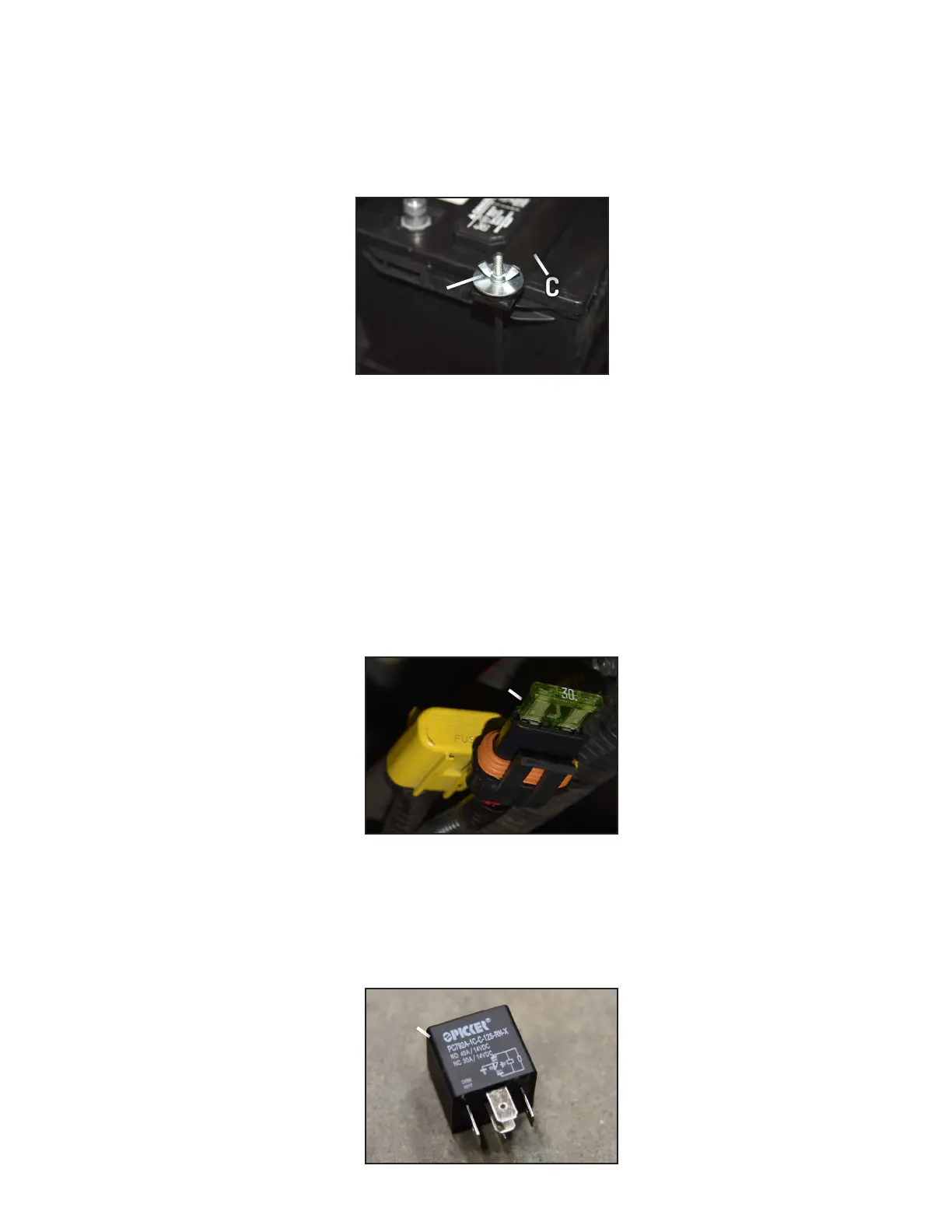

5. Remove the (2) nuts “B” and battery tie down “C” in Figure-5.
6. Lift the battery out of the Mudd-Ox. Note: Never link the battery terminals together as it will short out, causing
severe injury to persons and components. Do not set battery upside down, or place anything on top of it, as it
can also short the terminals out.
Figure-5
Battery Tie Down
CC
BB
Battery Installation
Installing the battery is simply the reversal of battery removal. When installing, always connect the positive (+)
terminal first and ground (-) last.
Part 2: Electrical Safety Systems
Fuse
All fuses on the Mudd-Ox (D in Figure-6) are place inside yellow weatherproof caps. Remove the cap to gain access
to the fuse. At the top of each fuse is a number. This dictates the number of amps it is rated for. Always replace a
fuse with the same amp rating. It can be installed facing either direction.
Figure-6
Fuse
Figure-7
Relay
Relay
Pictured is a relay removed from its mount (E in Figure-7). Each relay has terminals extending from the bottom
which dictate the direction it is installed on the Mudd-Ox. It will only install facing a specific direction. Always
replace a relay with the same amp rating.
DD
EE
