Tires/Wheels Cont.
Wheel Extension Installation
1. See Raising the Mudd-Ox under Jack Points.
2. The wheel extension is installed before the wheel.
A. If wheel is already installed: Complete Wheel Removal.
B. If wheel is not installed: Continue to step #3.
3. Slide the wheel extension over the lug studs.
4. Thread each lug nut onto the studs by hand. Ensure they thread smooth without significant force.
5. Use a 3/4” socket and ratchet to firmly tighten in a star pattern as shown in Figure-9. This will evenly distribute
the torque to prevent warping of the extension.
6. Use a torque wrench to tighten the lug nuts at 140 ft. lbs. in the star pattern (Figure-9).
7. Complete Wheel Installation
8. Repeat steps for all remaining tires.
Dual Wheels Installation
1. As tire pressures cannot be checked once the inner set of wheels are installed, complete Tire Pressure. If
equipped with tracks, and Matching Tire Circumferences.
2. See Raising the Mudd-Ox under Jack Points.
3. The dual wheel adapter will be installed with the inner wheel.
A. If wheel is already installed: Complete Wheel Removal steps #2-3.
B. If wheel is not installed: Complete Wheel Installation step #2.
3. Slide the dual wheel adapter over the lug studs (Figure-13).
4. Thread each lug nut onto the studs by hand. Ensure they thread smooth without significant force.
5. Use a 3/4” socket and ratchet to firmly tighten in a star pattern as shown in Figure-9. This will evenly distribute
the torque to prevent warping of the wheel.
6. Use a torque wrench to tighten the lug nuts at 140 ft. lbs. in the star pattern (Figure-9).
7. Complete Wheel Installation.
8. Repeat steps for all remaining tires.

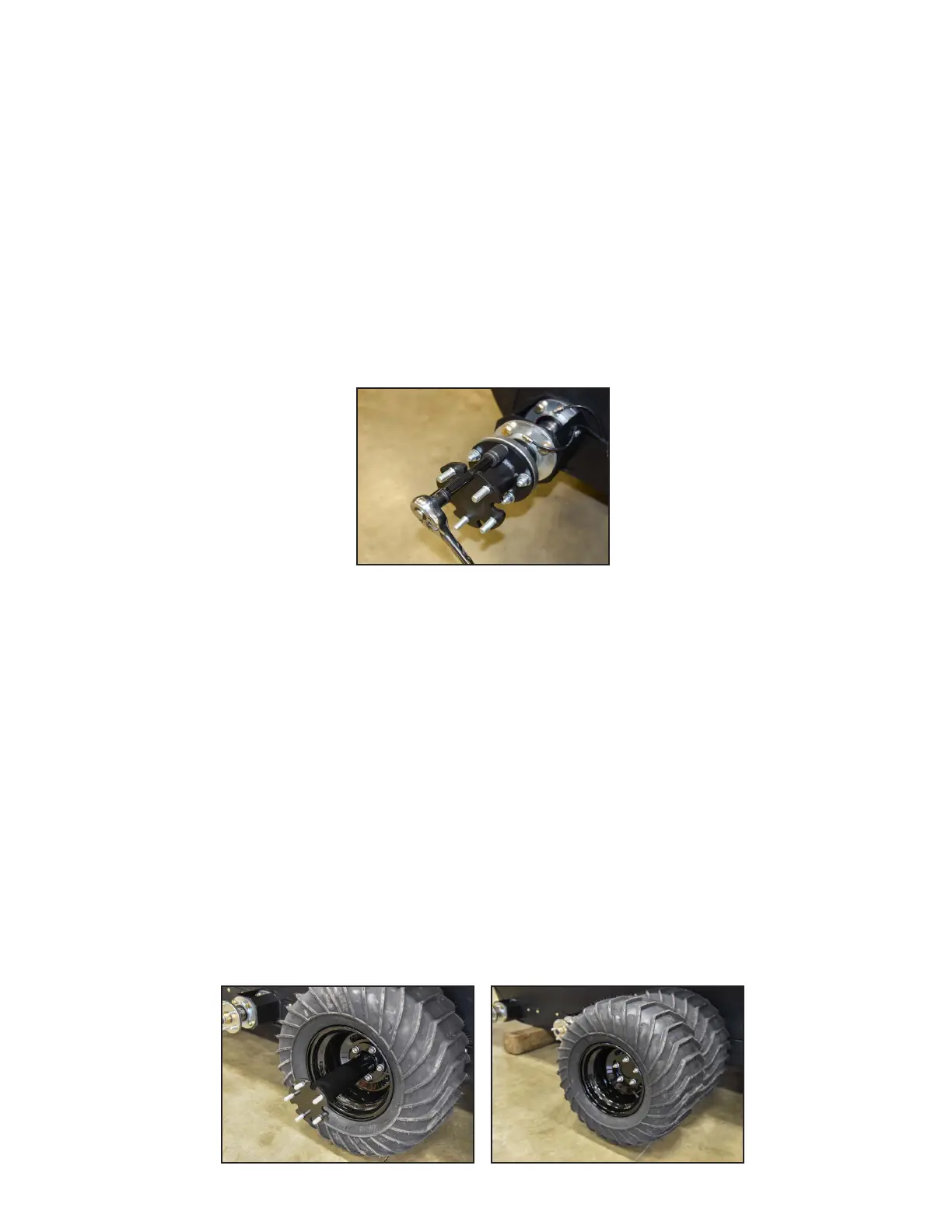

Figure-11
Extension Installed
Figure-13
Adapter Installed
Figure-14
Outer Wheel Installed
