OPERATION

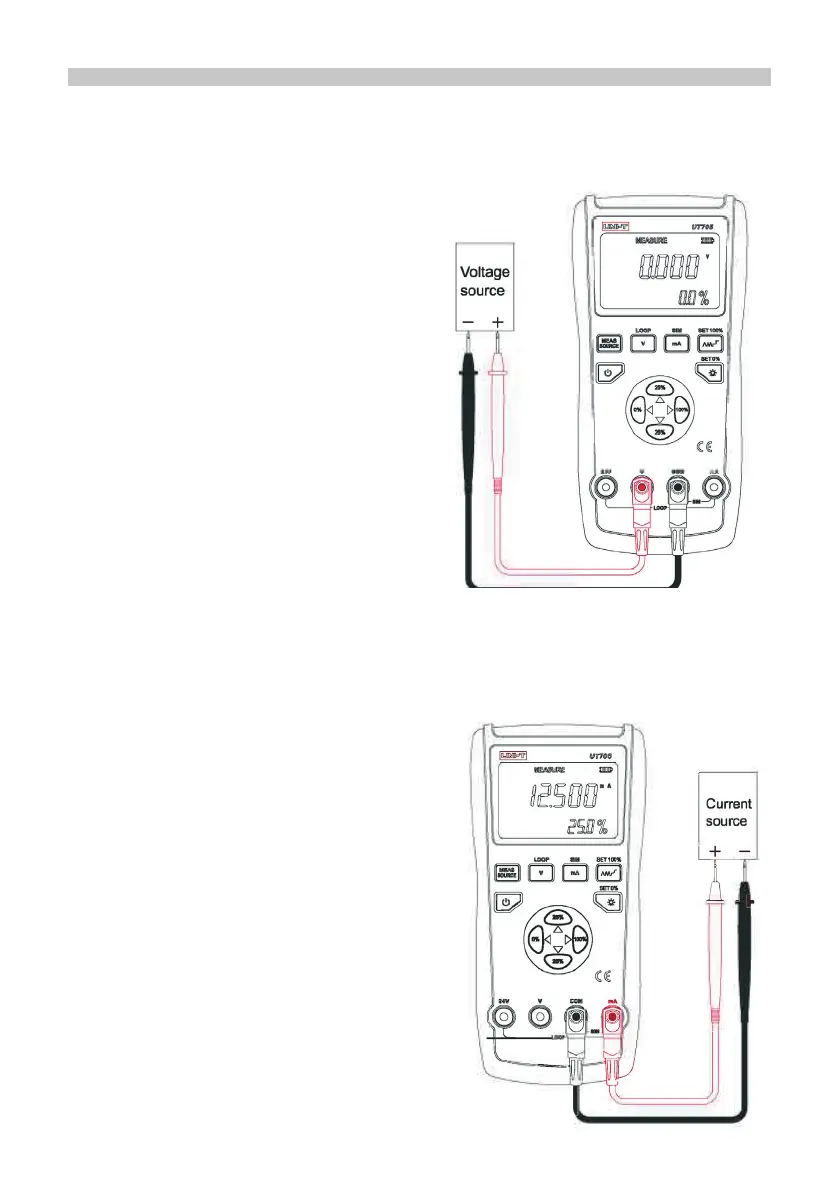

Voltage Measurement
• Short press MEASURE/SOURCE and select Measure, then press V and the LCD
displays ‘V’ unit.
• Connect the red test lead to V terminal, black to COM terminal.
• Connect the test probes to the voltage
points to be tested: connect the red probe
to the positive terminal, black to negative
terminal.
• Read the data on the LCD screen.
Current Measurement
• Short press MEASURE/SOURCE and select Measure, then press mA button and
the LCD displays ‘mA’ unit.
• Connect the red test lead to mA terminal, black to COM terminal.
• Disconnect the circuit path to be tested, and
then connect the test probes to the joints:
connect the red probe to positive terminal,
black to negative terminal.
• Read the data on the screen.
