10. It is important that once the slurry procedure is
completed, and concrete is flowing through the hose,
DO NOT stop the pour until all the slurry is pumped
out and the concrete has reached the end of the hose.
The only reason to stop the pump during the priming
procedure is if a blockage occurs.
11. If it is necessary to replace or add a section of delivery
system, after the initial lubrication procedure, wet the
inside area of the hose, pipe or elbow with 5 gallons of
water per 25-foot length, before adding it to the system.
REMOTE CONTROL (OPTIONAL)
The LS450 concrete pump has a remote control feature that
allows the pump to be remotely controlled. If desired, the
pump can be operated via a receiver/transmitter (radio) or
a hardwire method, which utilizes a 25-foot extension cable.
Contact the MQ Sales Department to order a remote control.
Radio Remote Control
Installation of the Radio Remote Control Assembly
1. Remove the two screws (Figure 35) on the digital control
panel that secure the front panel to the control box.

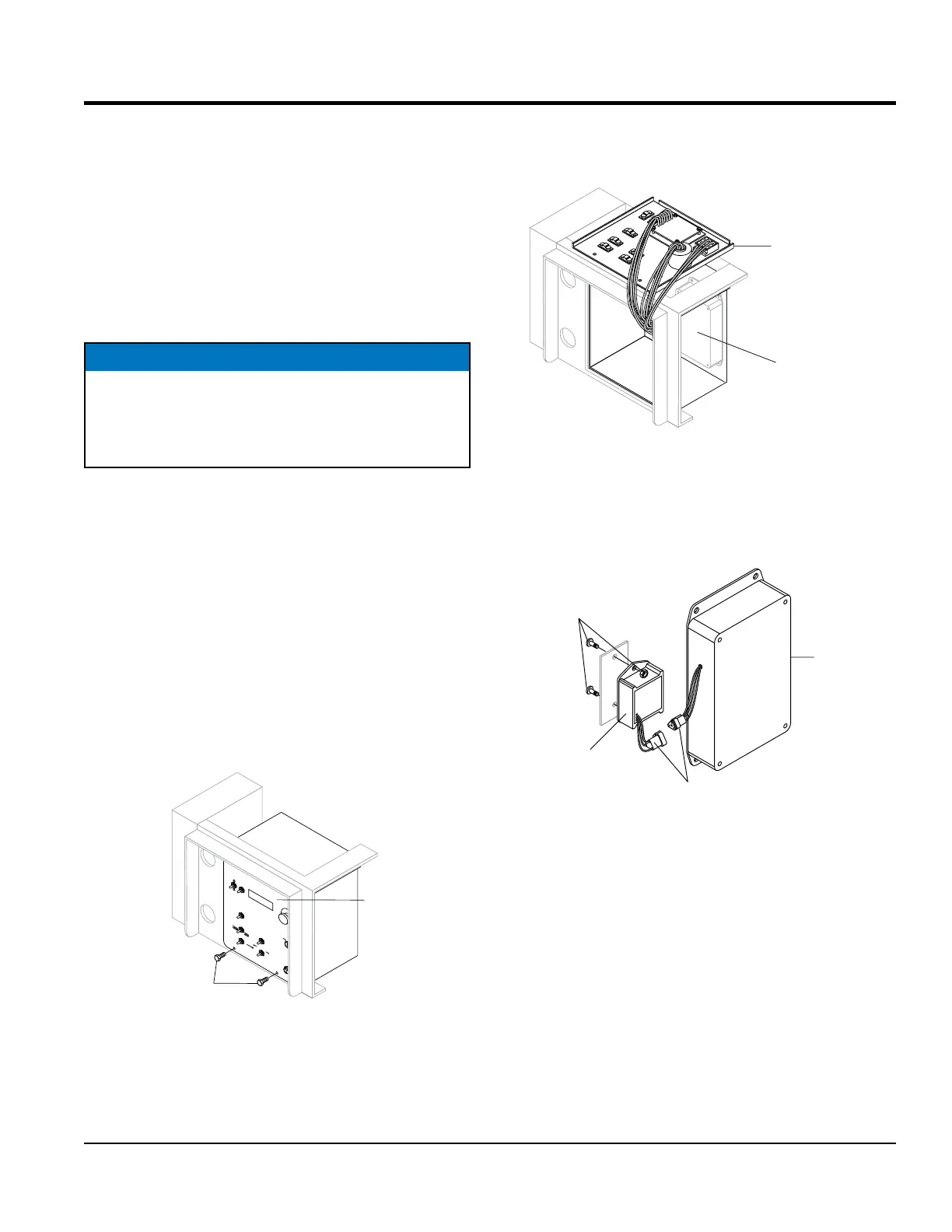

Figure 35. Removing the Control Box
NOTICE
When pumping long distances or pumping stiff mixes,
expect a drop in volume compared to shorter lines or
wetter mixes due to the change in valve efficiency or
cavitation.
E
M
E
R
G
E
N
C
Y
S
T
O
P
OFF
ON
IGNITION
REMOTE
CONTROL
FLOW
DIRECTION
VOLUME
LOCAL
FOR
WARD
AUT
OMA
TIC
JOG
RESET
SET
DECREASE
INCREASE
SCROLL
JOG
“A”
CYLINDER STROKE
JOG
“B”
REVERSE
CENTER
OFF
REMOTE
START
REMOVE 2 SCREW
S
CONTROLB
OX
2. Tilt and slowly pull out the control panel and place it
on top (Figure 36) of the control box to gain access to
the inside of the box.
Figure 36. Pulling Out Control Panel
3. Install the wireless remote module (Figure 37) with the
2 screws and nuts provided inside the control panel.
Connect the 3-wire connector from the wireless remote
module to the electronic control unit.
Figure 37. Installing Remote Control Module
4. Reinstall the control panel and tighten the 2 retaining
screws.
FRONT P
ANEL
ELECTRONIC
CONTROL
UNIT
SCREWS AND NUTS
WIRELESS
REMOTE
MODULE
CONNECTOR
ELECTRONIC
CONTROL
UNIT
