MULTISPAN MDT-4310N - Operating Instructions; Connection Diagram

www.multispanindia.com
Page-2
MDT-4310N
L
N
100
270V AC
~
50/60 HZ
3VA
!
1
2
3
4
5

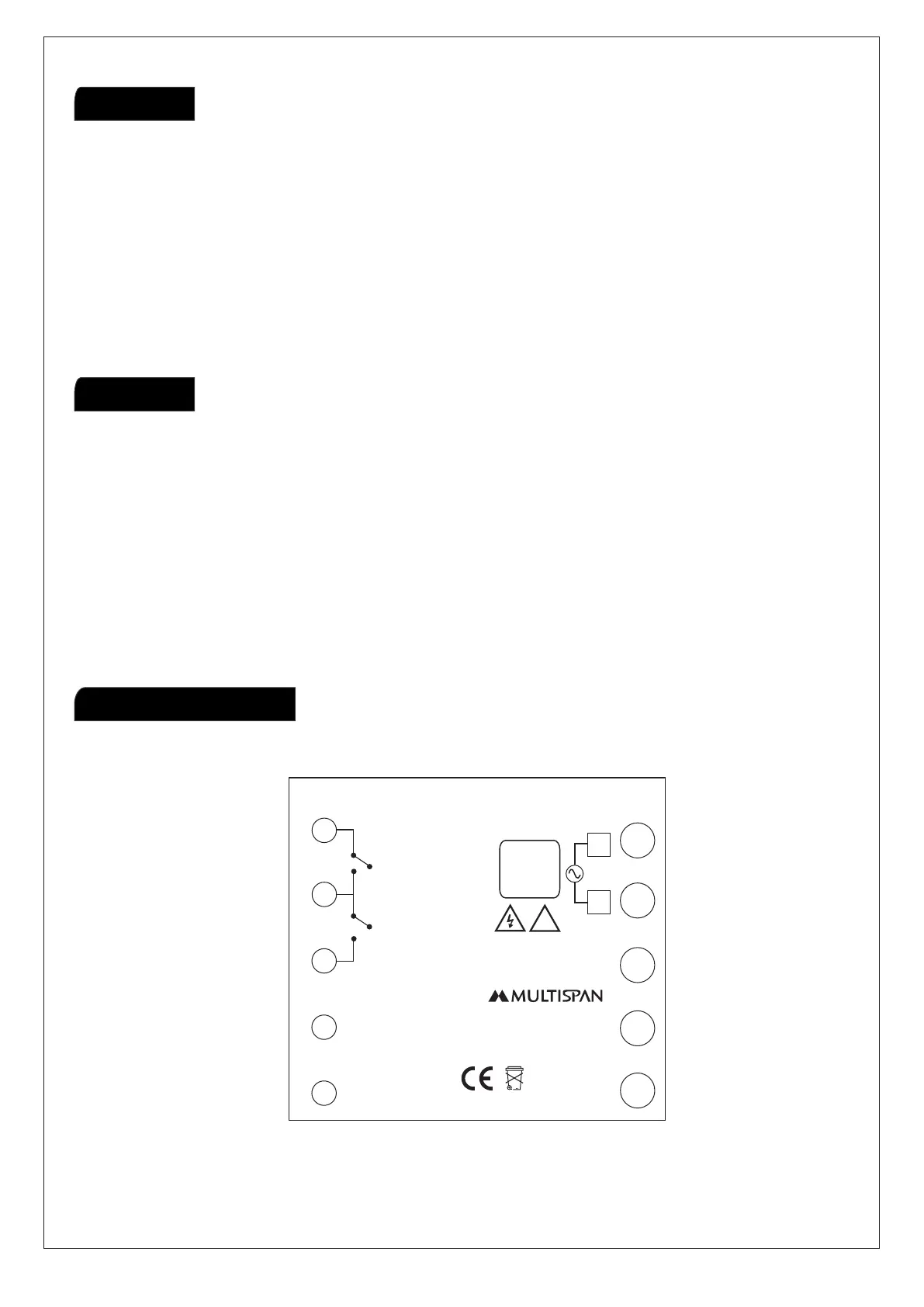

Connection Diagram
www.multispanindia.com
Working
Made in India
6
7
8
RESET
COM
START
10
9
NC
COM
NO
Note :-
Parameter setting is done by using Left First thumb wheel and reset key.:
Parameter setting:
1. Left first thumbwheel is used to change parameter
1. For parameter setting, Press reset key then power on, display will show by
default Parameter.
2. Reset key is used to change parameter value
1).Turnontheinstrument.Settimethroughthumbwheelaccording
toyourrequirement.
2).Tostartthetimerwithpoweronshortterminalno.6&7.
3).Toresettimer,pressfrontresetkeyonshortresetterminalno.7&8.
