MultiTable Manual ModTable - Assembling & Mounting the Handle

Page 13 | ModTable | vs 5.0

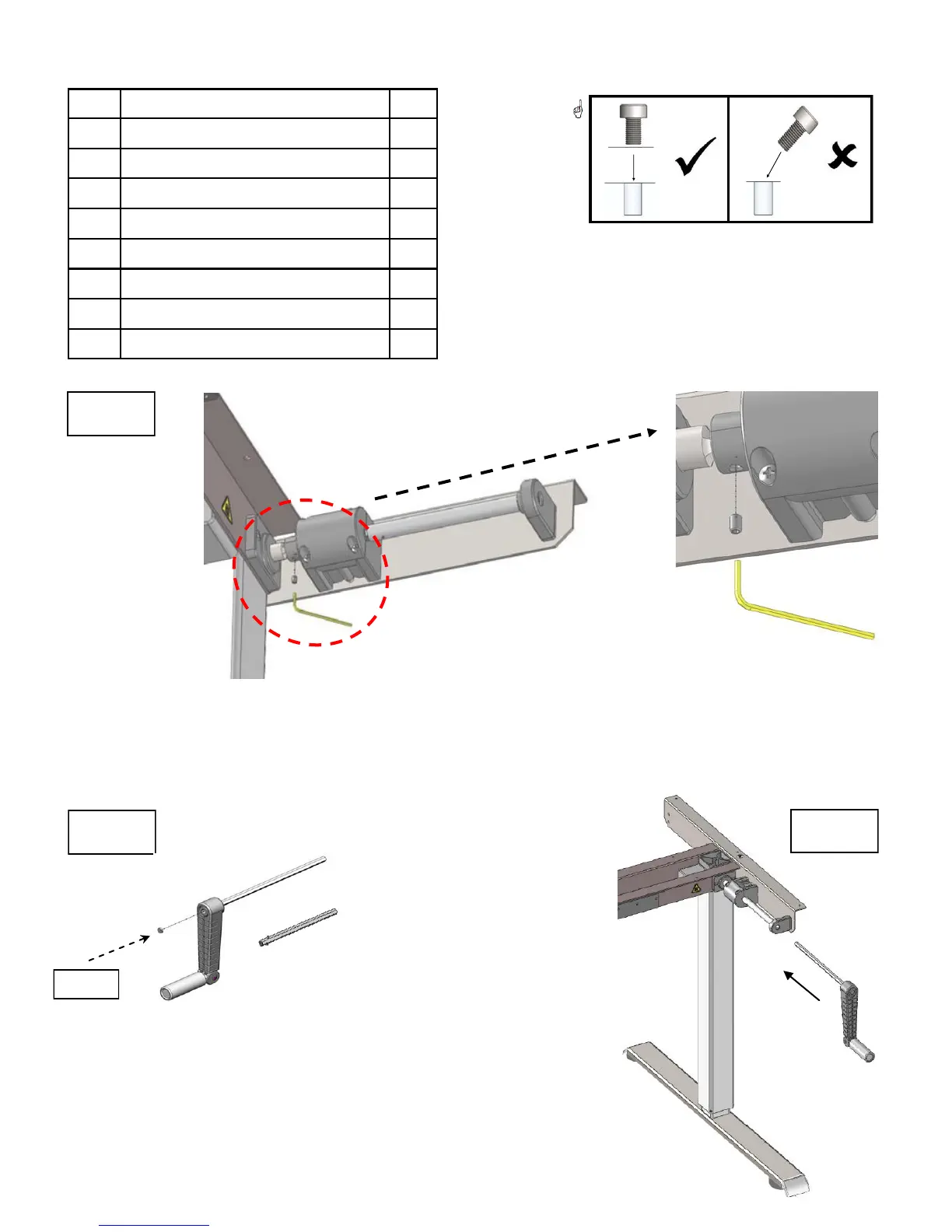

3.4.8 Assembling & Mounting the Handle
# Description Qty
12 Handle 1
13 Long drive rod 1
14 Short drive rod 1
15 Small plastic dot 1
16 Bolt (already in handle) 1
19 Small set screw 1
20 Large Allen wrench 1
22 Small Allen wrench 1
13
#15
14
12
In Photo 12:
 Tighten the small set screw into the small metal ring.
In Photo 13:
A) For Small or Medium
Table Tops, use the
short drive rod.
B) For Large or Extra
Large Table Top, use
the long drive rod.
 Cover bolt with small
plastic dot.
In Photo 14:
 Slide the assembled
handle into handle
bracket.
