Page 5 | ModTable | vs 5.0

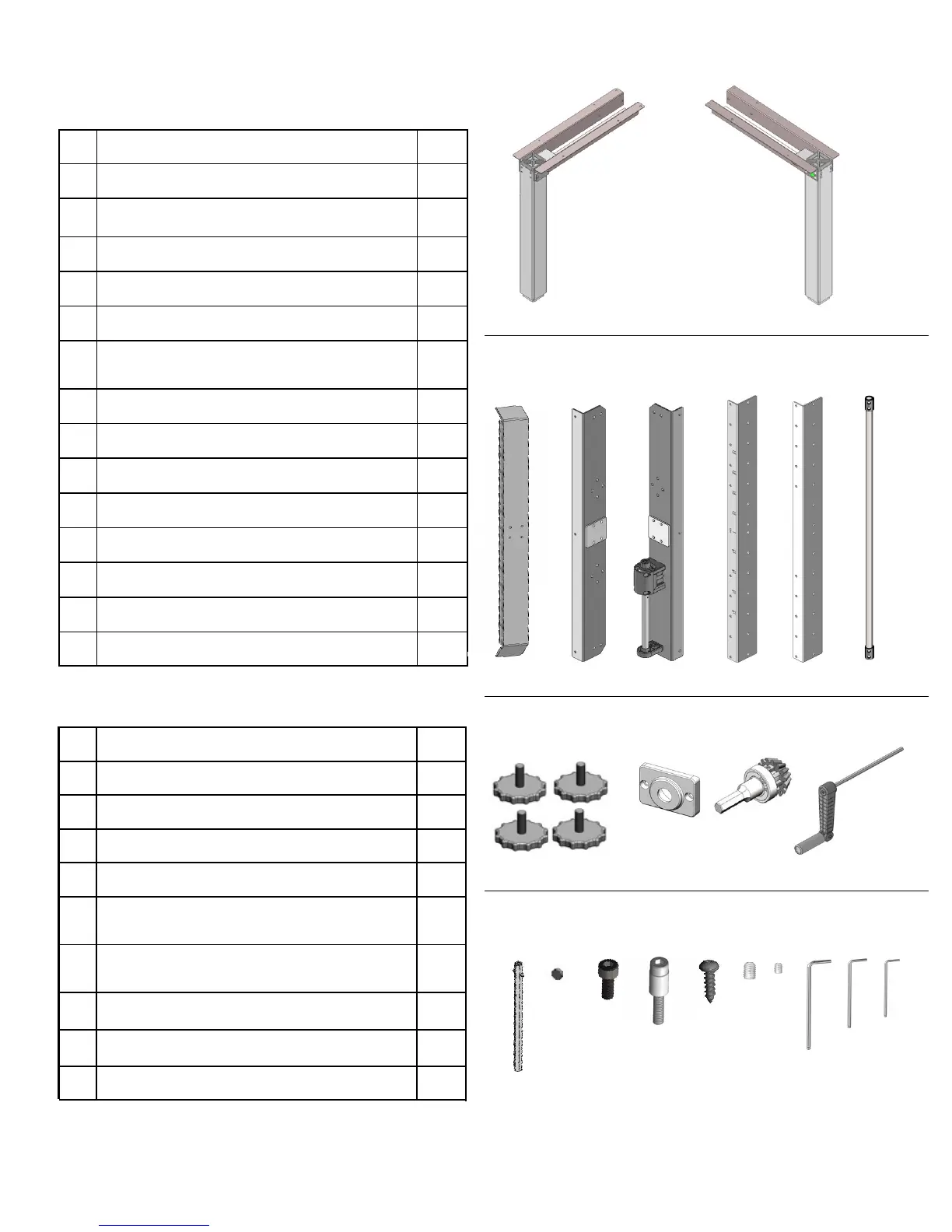

# Parts Qty
01 Left (L) leg 1
02 Right (R) leg 1
03 Foot 2
04 Left top support 1
05 Right top support—with brake box 1
06 Front Center crossbar - with
measurements
1
07 Back Center crossbar 1
08 Drive shaft 1
09 Adjustable feet 4
10 HC (handle) cover 1
11 HC (handle) gear 1
12 Handle 1
13 Long drive rod 1
14 Short drive rod 1
3.0 Box Content
03 04 05 06 07 08
# Hardware Kit Content Qty
15 Small plastic dot 1
16 Bolts 18
17
Table top screws
8
18
Set screws (located in drive shaft,
part # 08)
4
19
Small set screw (located on brake
box, part #05)
1
20
Large Allen wrench 1
21
Medium Allen wrench 1 22
Small Allen wrench 1
09 10 11 12 13
14 15 16 18 19 20 21 22 23
01
02
23
17
10
Spacer bolts
