MultiTable Manual ModTable - Mounting the Feet

Page 7 | ModTable | vs 5.0
# Description Qty
01 Left (L) leg 1
02 Right (R) leg—with gear shaft 1
03 Foot 2
17 Spacer Bolts 8
20 Large Allen wrench 1

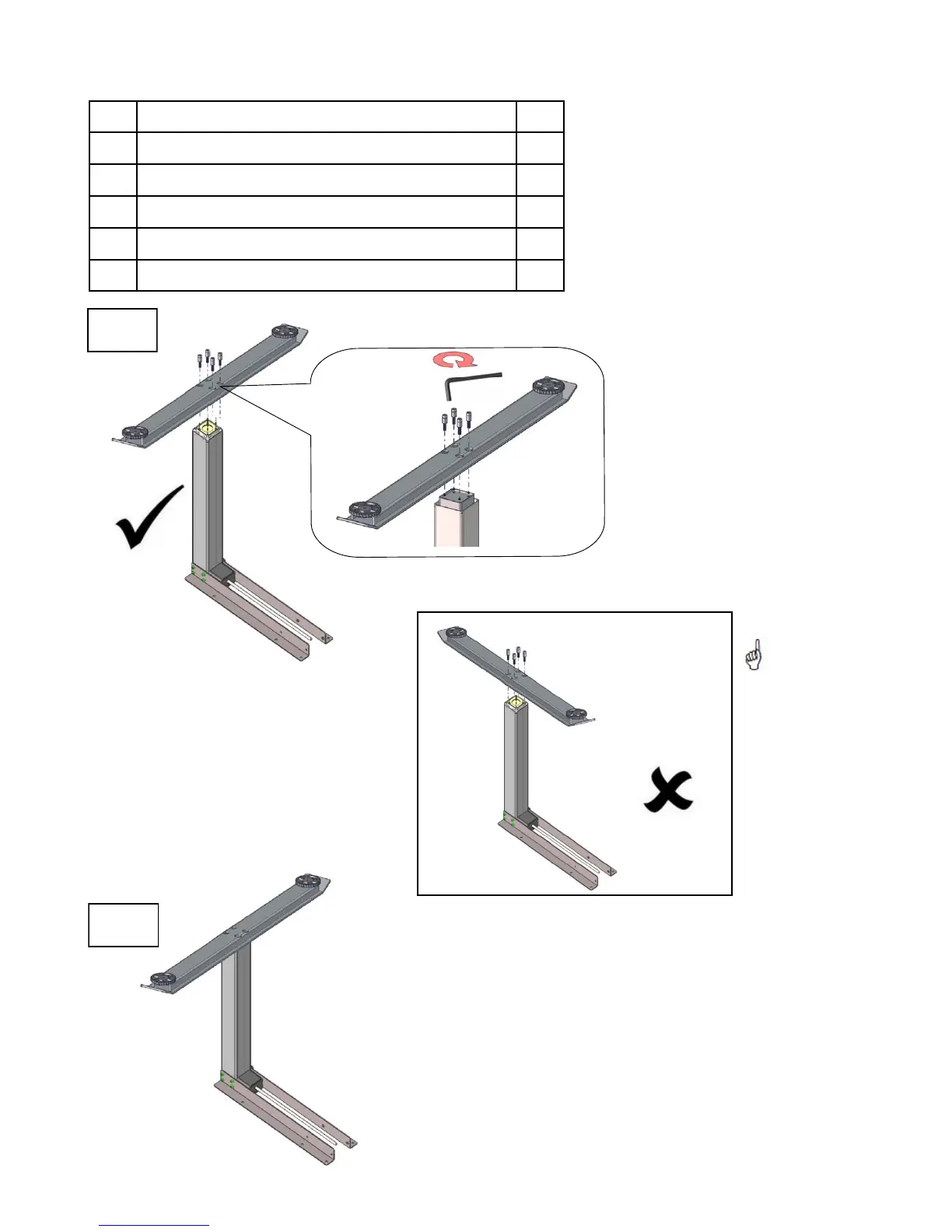

In Photo 2:
Place the right foot on top of
the right (R)leg.
The foot should be
perpendicular to the
crossbars (see Photo 3).
Screw the bolts into the foot.
Repeat this process with
the left (L) leg and left foot.
3.4.2 Mounting the Feet
2
In Photo 3:
 Finished photo of the left
and right legs.
3
Important!
Be sure to
attach foot in
the correct
position.
•
•
•
•
