MultiTable Manual ModTable - Mounting the Center Crossbars

Page 9 | ModTable | vs 5.0
5
3.4.4 Mounting the Center Crossbars
# Description Qty
06 Front Center crossbar—with measurements 1
07 Back Center crossbar 1
16 Bolts 8
20 Large Allen wrench 1
#06
#07
Crossbar Base Top
Measurement Width Size
1.0 39.5” 24”x40” (Small)
1.1 43.5” 24”x48” (Medium)
1.3 51.5” 29”x57” (Large)
1.4 55.5” 29”x72” (Extra Large)
1.0-1.4 39.5”-55.5” See section 2.3, page #4
Recommended Base Width Without Wheel Kit
Recommended Base Width With Wheel Kit
Crossbar Base Top
Measurement Width Size
1.0 39.5” 24”x40” (Small)
1.1 43.5” 24”x48” (Medium)
1.1 43.5” 29”x57” (Large)
N/A N/A 29”x72” (Extra Large)
1.0-1.1 39.5”-43.5” See section 2.3, page #4

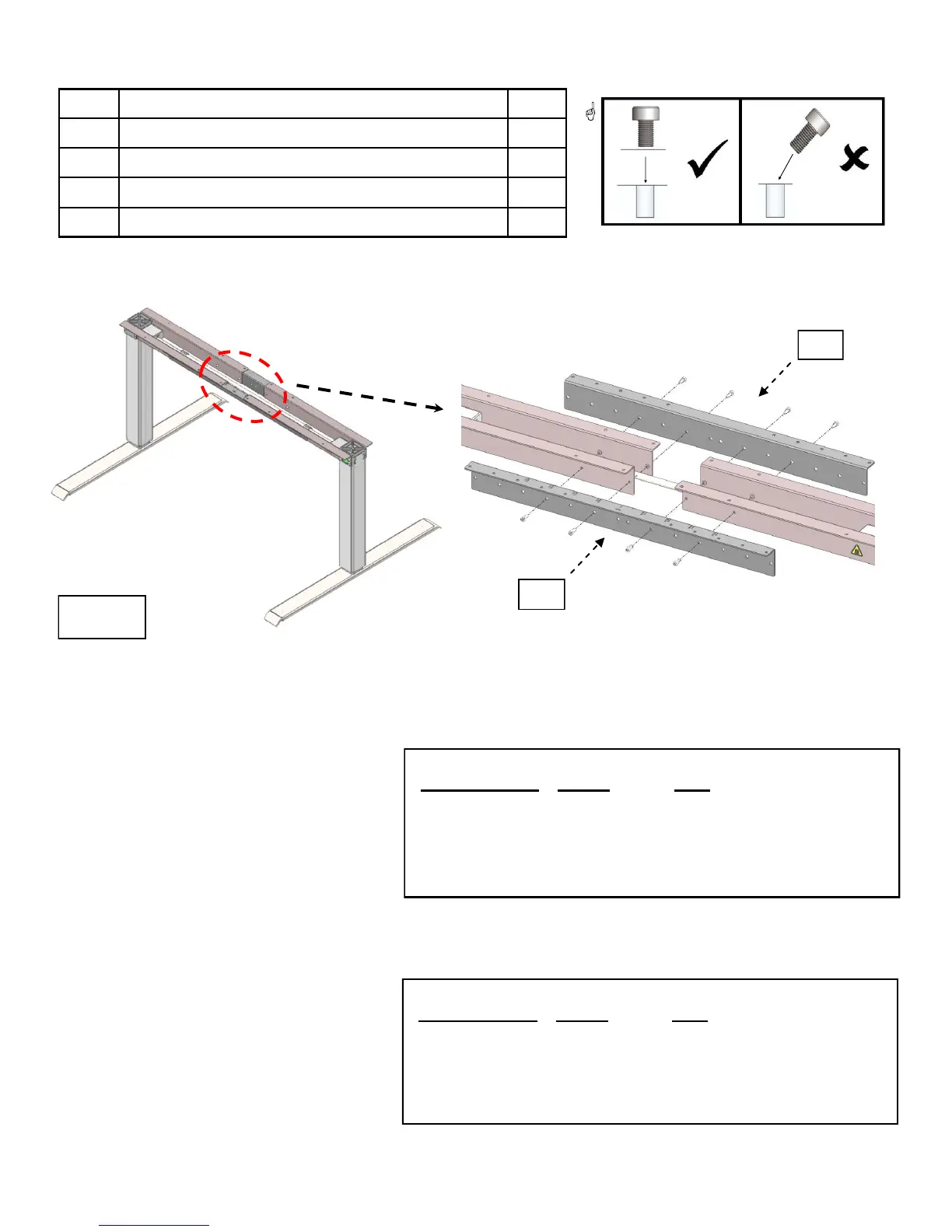

In Photo 5:
 Set Base to desired width.
 Attach front and back
center crossbars with
bolts.
