SPECIFICATIONS AND HARDWARE INFORMATION
Conduit
®
AP MTCAP2-L4E1-868-002 and MTCAP2-868-002 User Guide 9

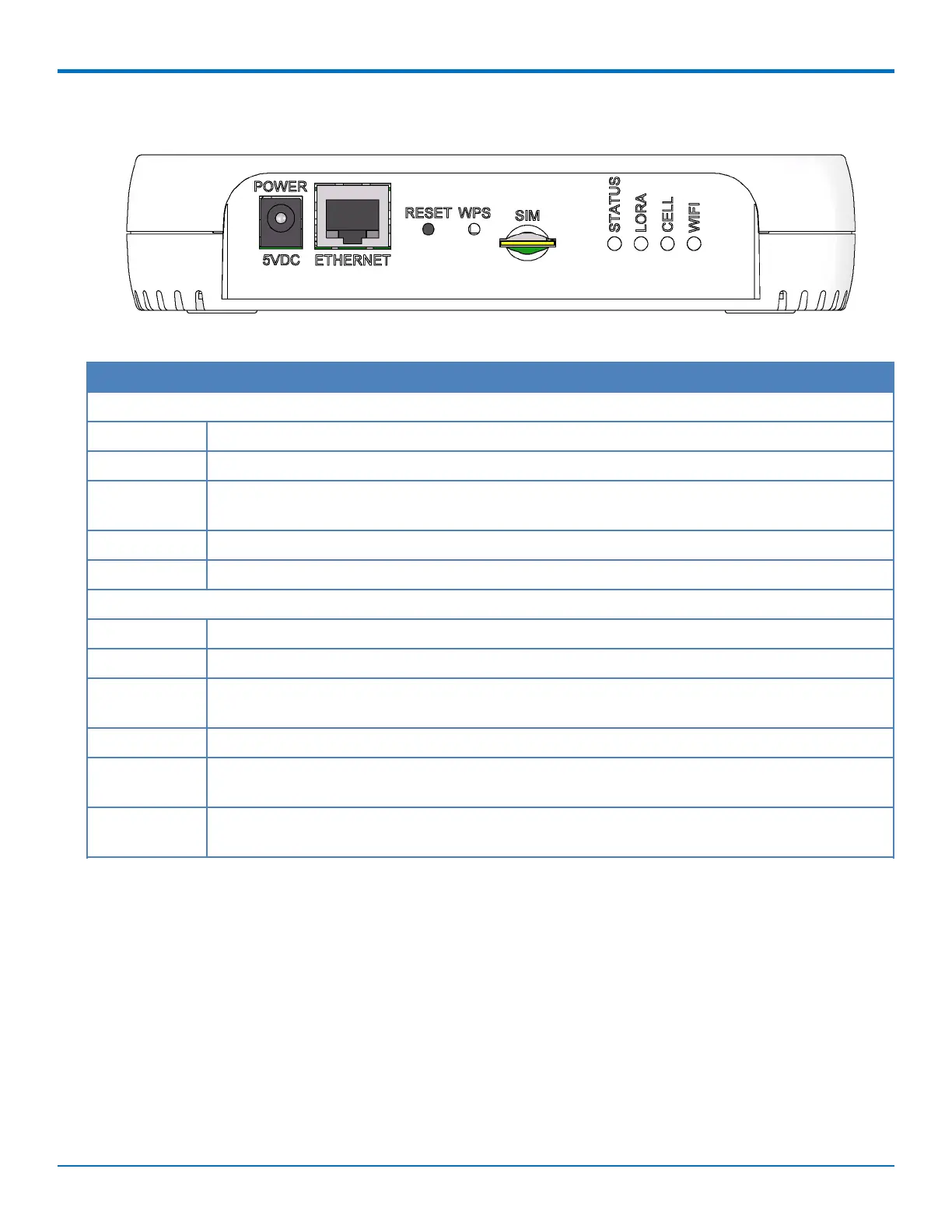

Connectors and LEDs
Note: Some features are available only on select models. The above image shows the model with all features.
For models that don't have a cellular radio, the chassis will not have a SIM slot.
Item Description
Connectors
Power 5 Volt power jack.
Ethernet RJ45 Ethernet jack.
Reset Reset button. Reboots device or restores factory defaults. Refer to Resetting the Device for
details.
WPS Reserved for future use.
SIM Cellular models only. Micro (3FF) SIM slot. Refer to Installing SIM Card for details.
LEDs
STATUS Blinks when operating system is fully loaded.
LORA Lights when LoRa software is active.
CELL Cellular models only. Lights when there is power to the radio. Blinks when the SIM is registered
with the carrier.
WIFI Reserved for future use.
Ethernet Link Left LED on the Ethernet connector. Blinks when data is sent or received on the Ethernet link.
Steady light when there is a valid Ethernet connection.
Ethernet Speed Right LED on the Ethernet connector. Lit when the Ethernet is linked at 100 Mbps. If not lit, the
Ethernet is linked at 10 Mbps.
