MT5600ZDX Owner's Manual
16
CD
Carrier Detect. This LED lights when a valid carrier signal from
another modem is detected.

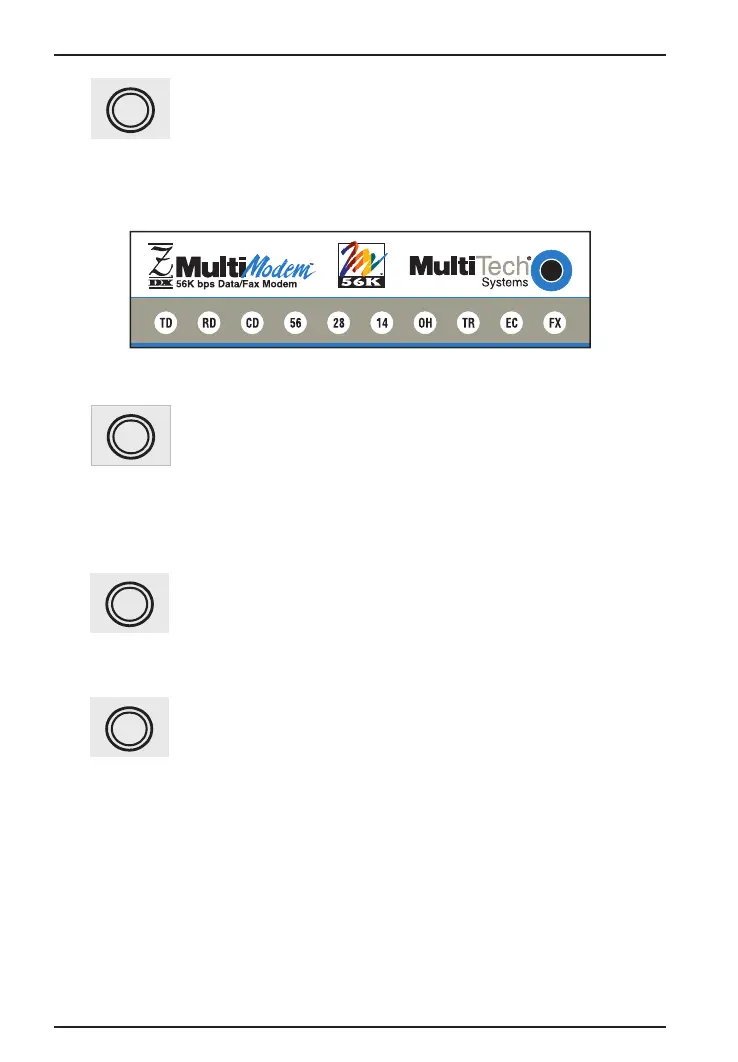

Figure 2-4. MT5600ZDX Front Panel
56
K56flex. This LED is lit when connected to an ISP-type K56flex
server. The actual connection speed is contingent upon server
capabilities and line conditions.
28
V.34. This LED is lit when the modem is connected in V.34 mode.
14
V.32
bis
. This LED is lit when the modem is connected in V.32
bis
mode. Note at speeds lower than a V.32
bis
connection, the
MT5600ZDX speed LEDs remain unlit.
