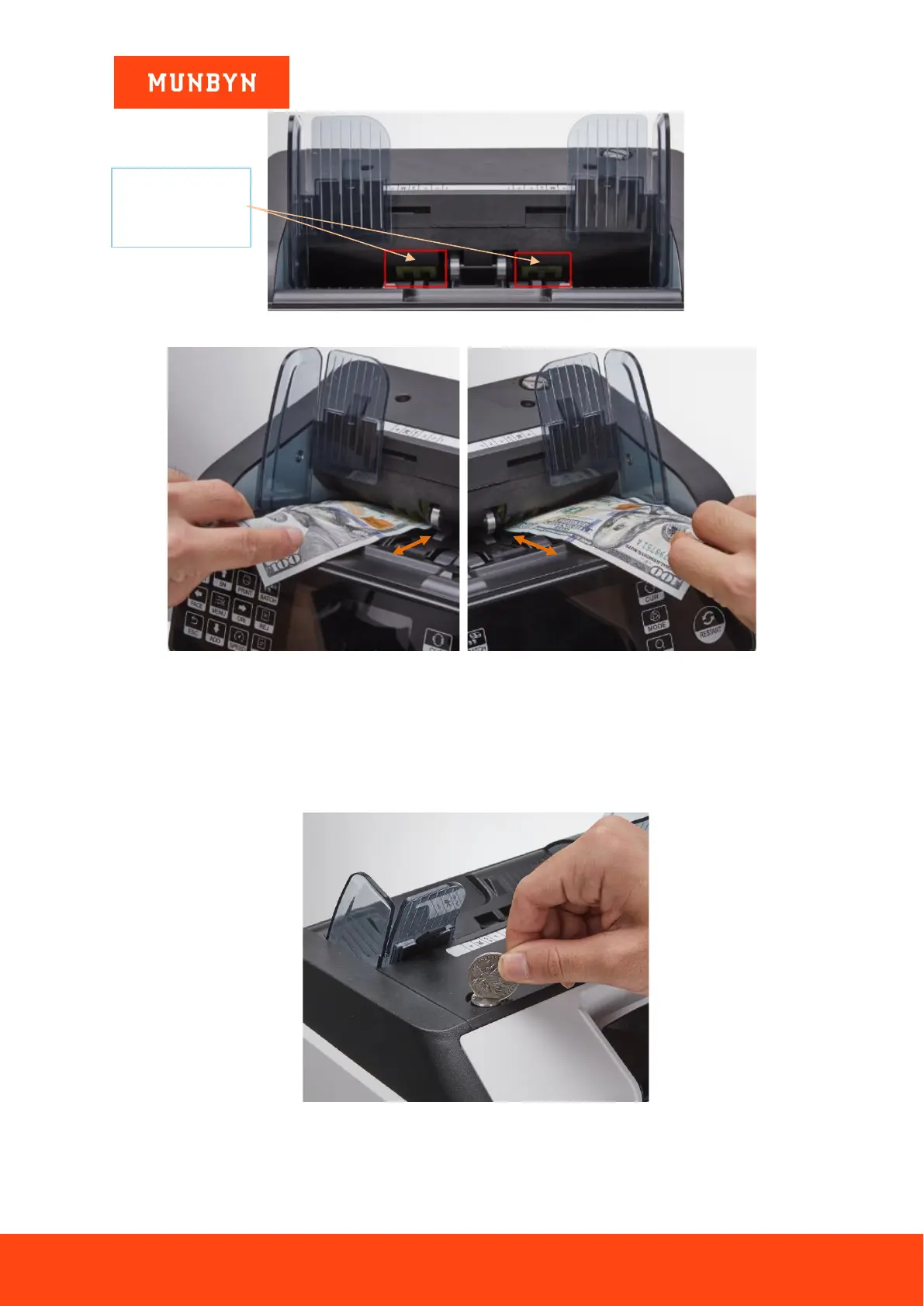

Figure 3-10 The Banknote Feeding Gap
Figure 3-11 One banknote to Check the Gap between the Rollers
If the banknote is hard to insert, that means the feeding gap is too small. Rotate the screw clockwise until the
banknote can be inserted smoothly. If the feeding gap is so large that two or more banknotes can be inserted
to the feeding gap, please rotate the screw counterclockwise until the gap can just allow one banknote at a
time.
3) Use the banknote to check the other sides of the gap between rollers, to make sure the banknote can be
inserted into both sides of the feeding gap smoothly.
Figure 3-12 One Coin to Rotate the Screw
The IMC08 needs different gaps for different currencies, but otherwise should stay consistent. Having the correct
feeding gap adjusted will ensure smooth operation as well as a trouble-free experience. You may need to do some
trial and error before getting it perfectly smooth.
