IMC08 Maintenance Manual
Version 1.01

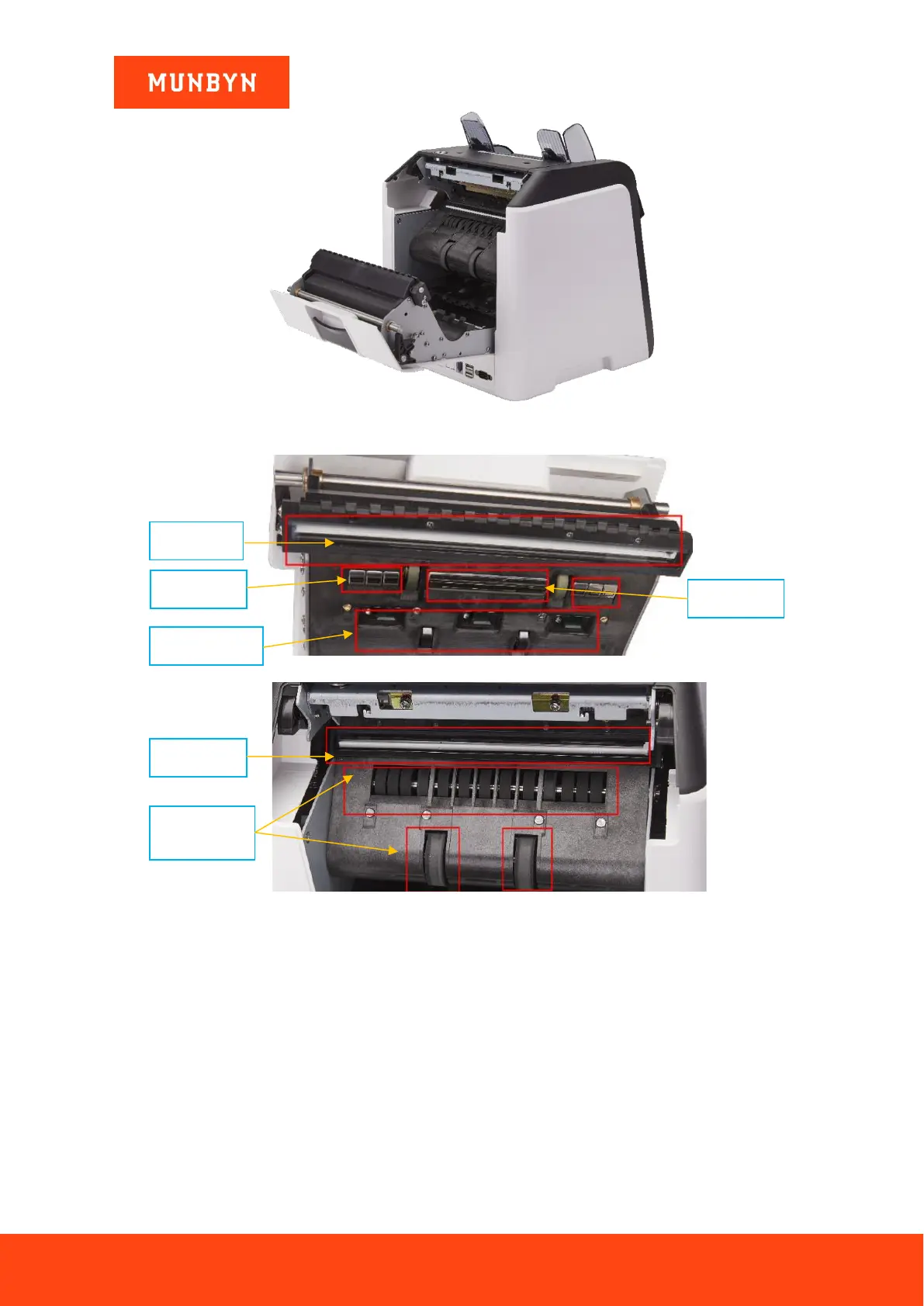

Figure 2-3 Back Cover Opened
b) As shown in the following figures, clean the marked with cleaning cloth or nylon brush respectively.
Figure 2-4 Lower Sensors
Figure 2-5 Upper Sensor
Note: For the CIS sensors, it is recommended to used cleaning cloth to clean them, as shown in the following
figures.
Close the cover and finish the machine cleaning.
Lower CIS
UV Sensor
Upper CIS
Processing
Wheels
MG Sensor
Other Sensors
