2.5.3 Bypassdamper
MX² 30
MX² 35-95

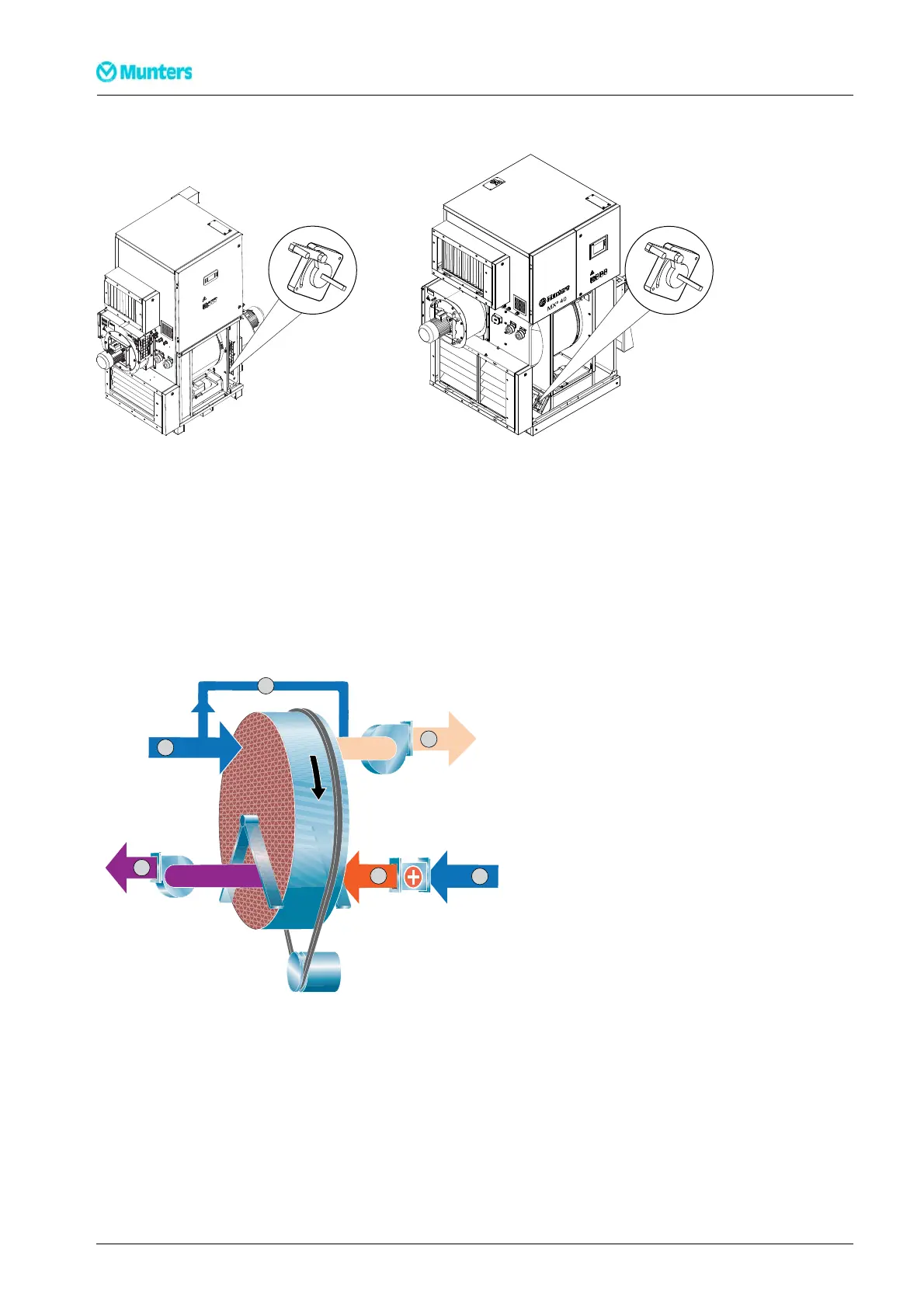

Figure 2.7 Handle for bypass damper
An installed bypass damper kit allows a fixed airflow to be us ed when the process airflow exceeds t he
maximum rotor flow capacity. The bypass function consists of an adjustable damper positioned in the
bypass airflow channel. The bypass airflow channel is integ rated with the unit and passes under the rotor.
NOTE!
Thebypass damper should onlybeadjusted byspecially trained personnel.
1
2
3
4
6
5
Figur e 2.8 Bypass principle
1. Reactivation air
2. Heated reactivation air
3. Wet air
4. Pr ocess air
5. Dry air
6. Bypassed process air
14 Dehumidifierdesign 190TEN–1089–G1412
