Important!
Use the cleaning stick to clean around the
rubber part of the capping unit to remove the
ink deposits and dust.
When cleaning the cleaning wiper and surface around the capping unit, check the points below:
Do not touch the cleaning wiper and the capping unit with your hands.
If oil from your hands gets on those parts, this cleaning may not be performed properly.
Always use a cleaning stick dampened with the dedicated maintenance cleaner in the plastic cup.
DO NOT use non-dedicated maintenance cleaner. It may cause nozzle clogging.
DO NOT touch the tip of the cleaning sticks with your nger. If nger oil gets on the stick, it will damage the
print head.
The cleaning stick submerged in the plastic cup can be used for 1 week. Change the cleaning stick once a
week, or when the ink on the stick cannot be removed.
This cleaning should be complete within 5 minutes. If it takes longer, the stick can dry causing damage to
the print head.
DO NOT touch the absorber (yellow)
Clean this part (grey)

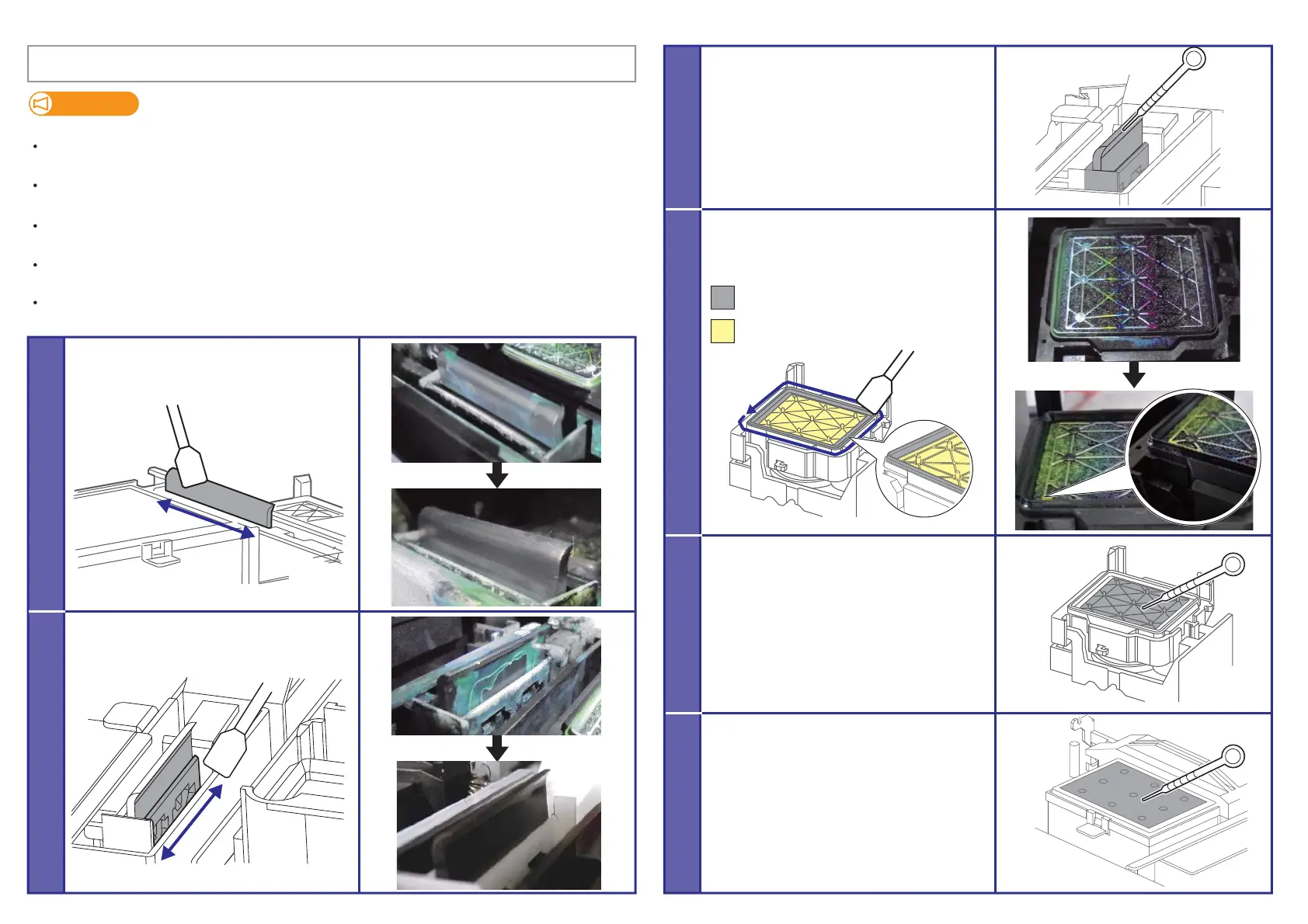

2. How to clean the cleaning wiper and capping unit
1
Use the cleaning stick to clean the left side
surface of the cleaning wiper (a black rubber
part).
2
Use the cleaning stick to clean the right side
surface of the cleaning wiper including the resin
part below.
Use the dropper to moisten the absorber of the
capping unit with maintenance cleaner.
Use about: 1.5 ml
Use the dropper to moisten the ushing-box
sponge with maintenance cleaner.
Use about: 3.0 ml
Use the maintenance cleaner sucked up from
the maintenance cleaner bottle or the plastic
cup for dropper.
Do NOT use the maintenance cleaner in the
plastic cup that the cleaning stick is submerged.
Use the maintenance cleaner sucked up from
the maintenance cleaner bottle or the plastic
cup for dropper.
Do NOT use the maintenance cleaner in the
plastic cup that the cleaning stick is submerged.
6
4
5
3
Use a dropper to moisten the cleaning wiper
with maintenance cleaner.
Use about: 5.0 ml
Use the maintenance cleaner sucked up from
the maintenance cleaner bottle or the plastic
cup for dropper.
Do NOT use the maintenance cleaner in the
plastic cup that the cleaning stick is submerged.
