MX F300 Series - PROPILOT Safety Lock; PROPILOT Movement Controls

15
Subject to modication

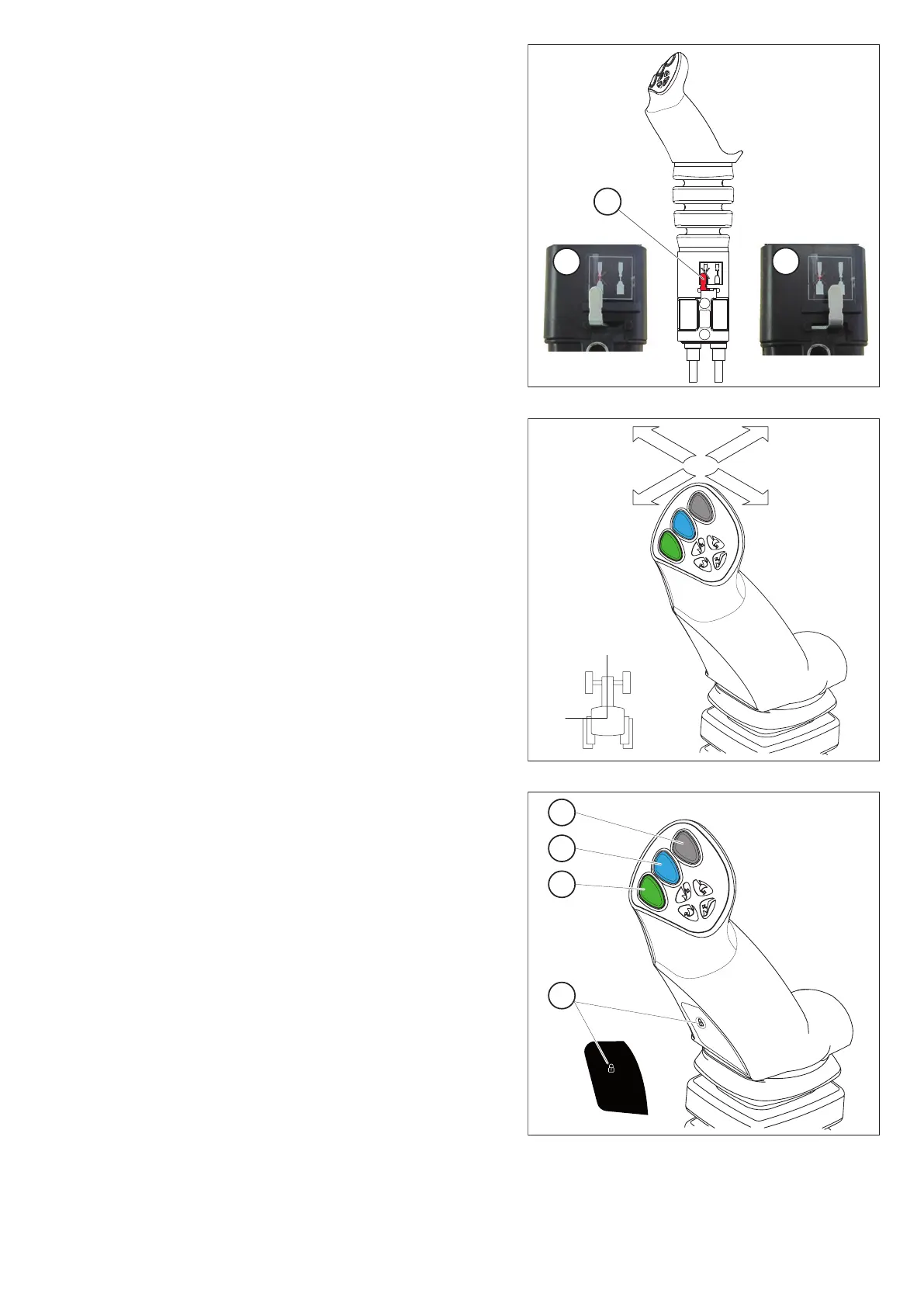

5.3.1 Safety
To prevent any accidental movement of the loader, the PROPILOT
monolever can be locked.
Move the unlocking lever (1).
— (A): unlocked position.
— (B): locked position.
■
1
A
B
5.3.2 Movements
1st function: along the “Y” axis
— Forward = loader lowering
(Double-action hydraulic ram operation).
— Forwards after notching = oating position
(Single-action hydraulic ram operation).
— Backwards = loader raised.
2nd function: along the “X” axis
— To the left = implement crowding.
— To the right = implement dumping.
■
Y
X
Y
X
3rd function: along the "X" axis
— Button (1) + crowding or dumping movement.
4th function: along the "X" axis
— Button (2) + crowding or dumping movement.
FAST-LOCK
Automatic hitching/unhitching of the implement.
— Button (1) + (4) + crowding or dumping movement.
NOTE: Button (3) not used.
Button (4) only available with FAST-LOCK or SPEED-LINK 2.
■
1
2
3
4
