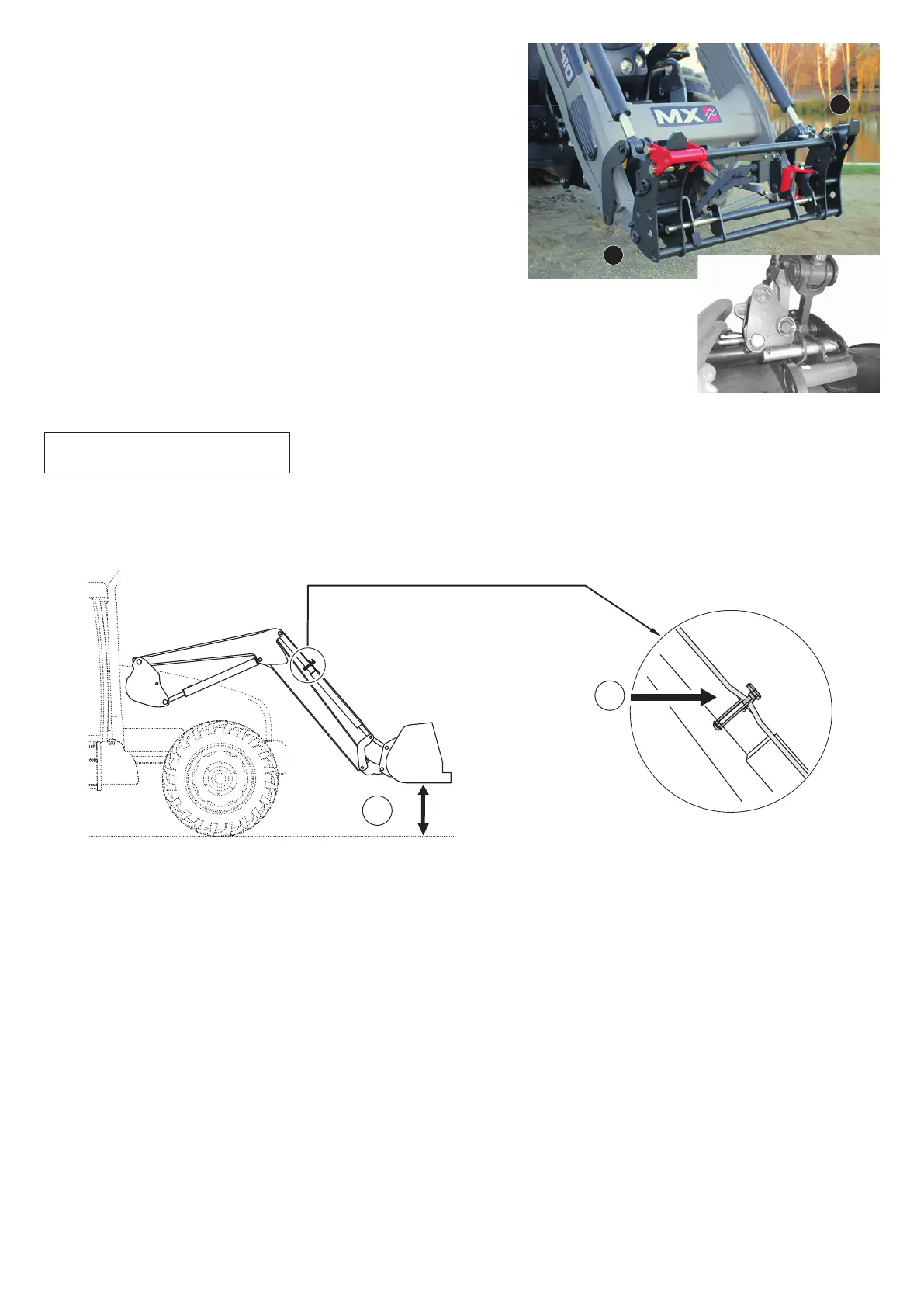

10.4 MX/Faucheux-Blanc implement carrier frame
To switch from MX position (1) to the Faucheux-Blanc position (2),
— Remove the hitching shoes from their storage position,
— Fit them in the hitching position and add the 4 fastening pins,
— Fit the clip pins on the fastening pins.
■
1
2
11. Level indicator
The level indicator enables implement positioning as the loader
is descending. It is located on the left side of the loader. It can be
adjusted to suit the implement being used.
2
2
1
(1) indicator (2) Bucket parallel to the ground
■
