14.2 Use of the lifting and dumping safety device

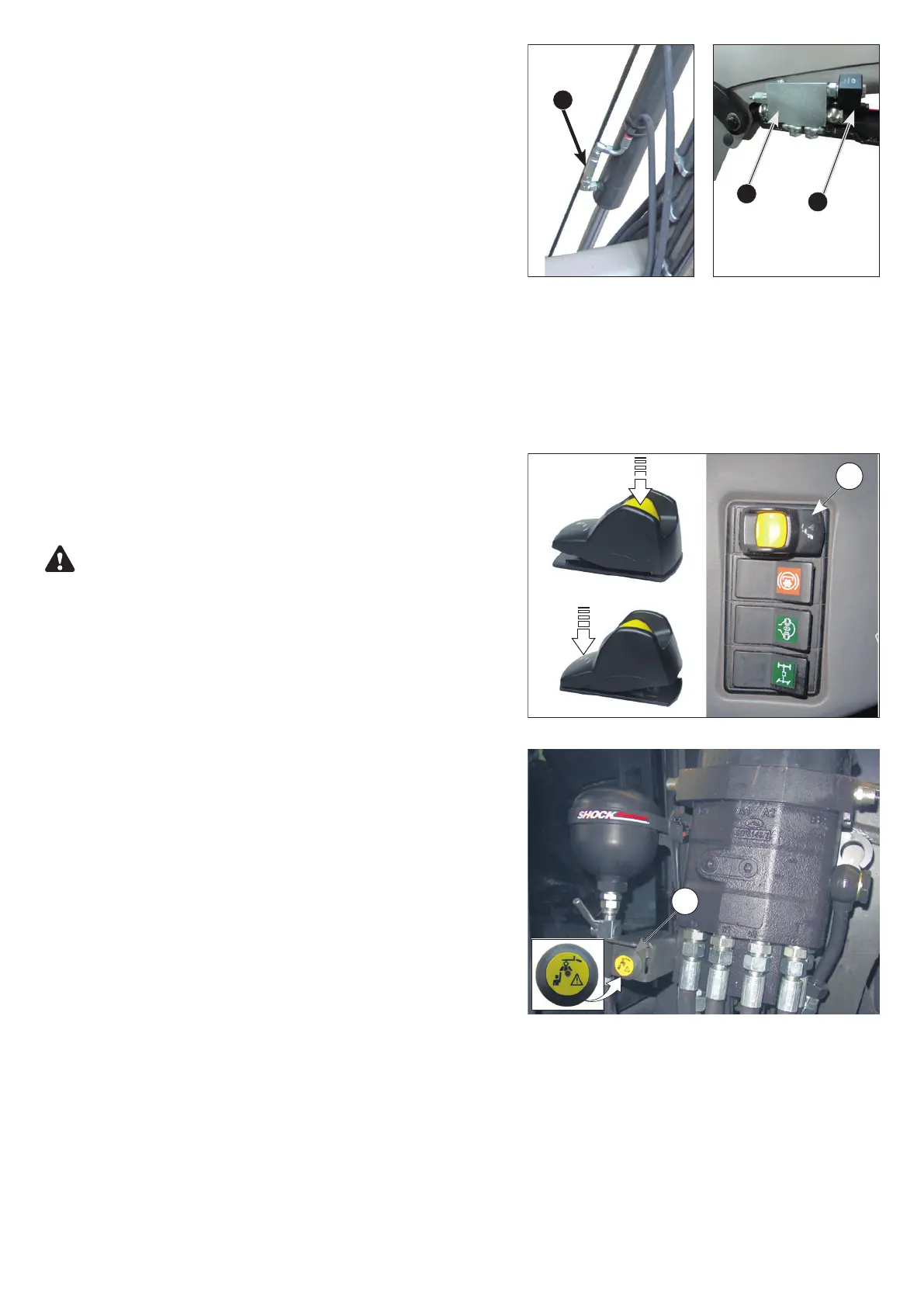

The hydraulic circuit of the lifting and dumping rams is tted with a
safety device (1) and (2).
By default, the safety device is activated.
When the user presses the button in the cab (3) (secure button),
the safety device is deactivated and the red indicator lights are
illuminated on:
— the in-cab button (3),
— the external button (4) ,
— the two lifting-ram solenoid valve connectors (5) .
Button function (3):
— Press (A): deactivates the safety device.
— Press (B): activates the safety device.
■
2
1
5
NOTE: As soon as the tractor is switched o󰀨, the safety device is
automatically actuated.
CAUTION: Deactivation of the safety device is only
permitted when there is no-one in the vicinity of the load. In this
case, the maintained oating position and the Shock Eliminator
are compatible.
By pressing buttons (3) or (4), the safety device is reactivated
(red indicator lights o󰀨).
■
A
B
3
Button (4) is used exclusively to reactivate the safety device from
outside the cab.
In this case, the red indicator lights go o󰀨.
■
4
