MXN MXN-P7DQ - Connection

7" TFT DIGITAL LCD Monitor
16

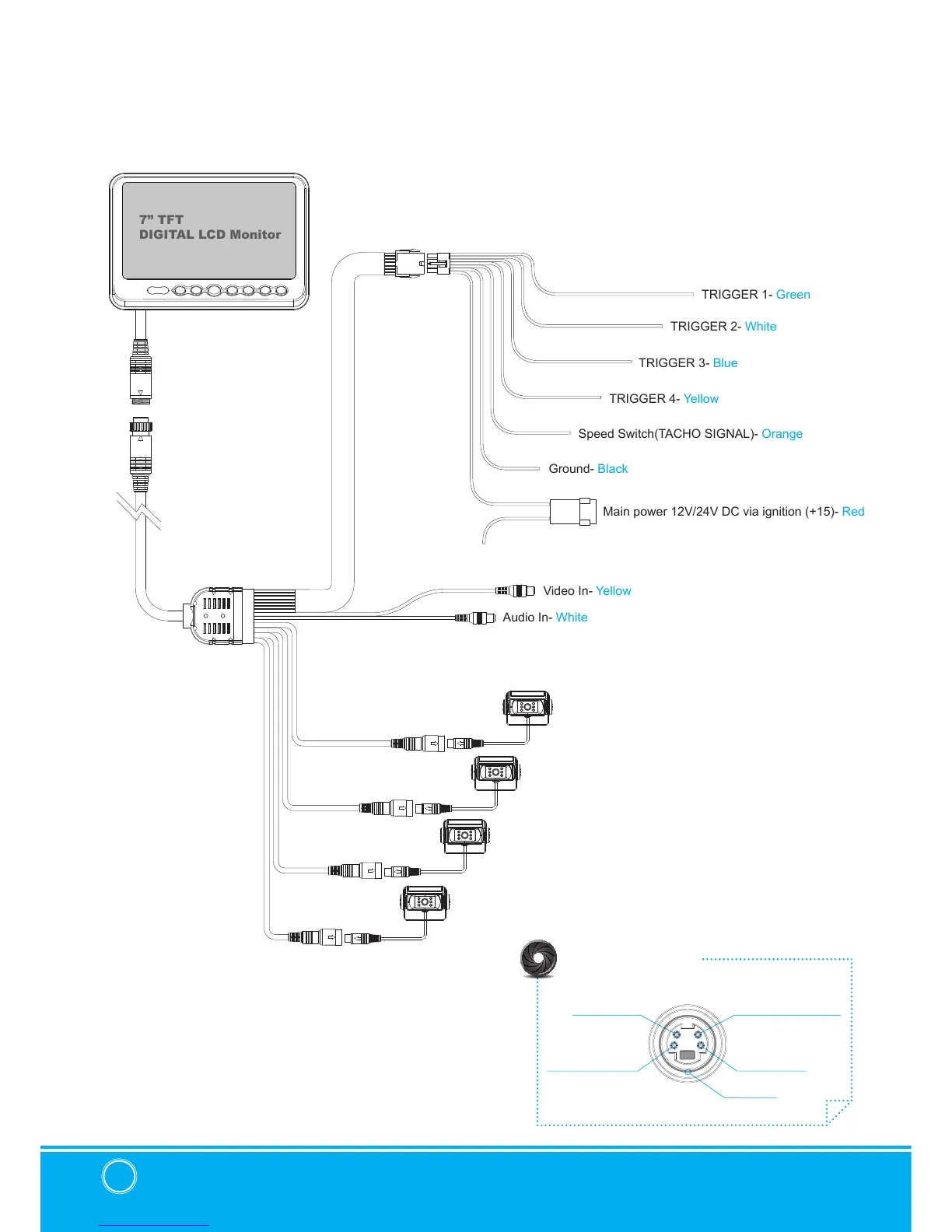

▣ CONNECTION
Camera 1(Option)
Camera 2(Option)
Camera 3(Option)
Camera 4(Option)
TRIGGER 3- Blue
TRIGGER 4- Yellow
Video In- Yellow
Audio In- White
Speed Switch(TACHO SIGNAL)- Orange
TRIGGER 2- White
TRIGGER 1- Green
7” TFT
DIGITAL LCD Monitor
Main power 12V/24V DC via ignition (+15)- Red
Ground- Black
AUDIO INPUT
+12V DC OUTPUT,
HEATER & SHUTTER
+12V DC OUTPUT,
POWER
VIDEO INPUT
GROUND
CAMERA INPUT
