2205B0JE-DA-J-N_2014.05.
5 Maintenance and Inspection
Screw Compressor J-series 5.4 Disassembly and Assembly of the Compressor
5-46
280J
Order Description
Part
No.
Order Description
Part
No.
1 O-ring (G260) 63 6 O-ring (P85) 295
2 Cylinder, Vi 296 7 Piston, Vi 294
3 O-ring (G260) 63 8 O-ring (P225) 65
4 Spiral retaining ring (FRSN-75) 293 9 Teflon cap seal (SUNR-BE-225) 66
5 Vi piston assembly — — — —

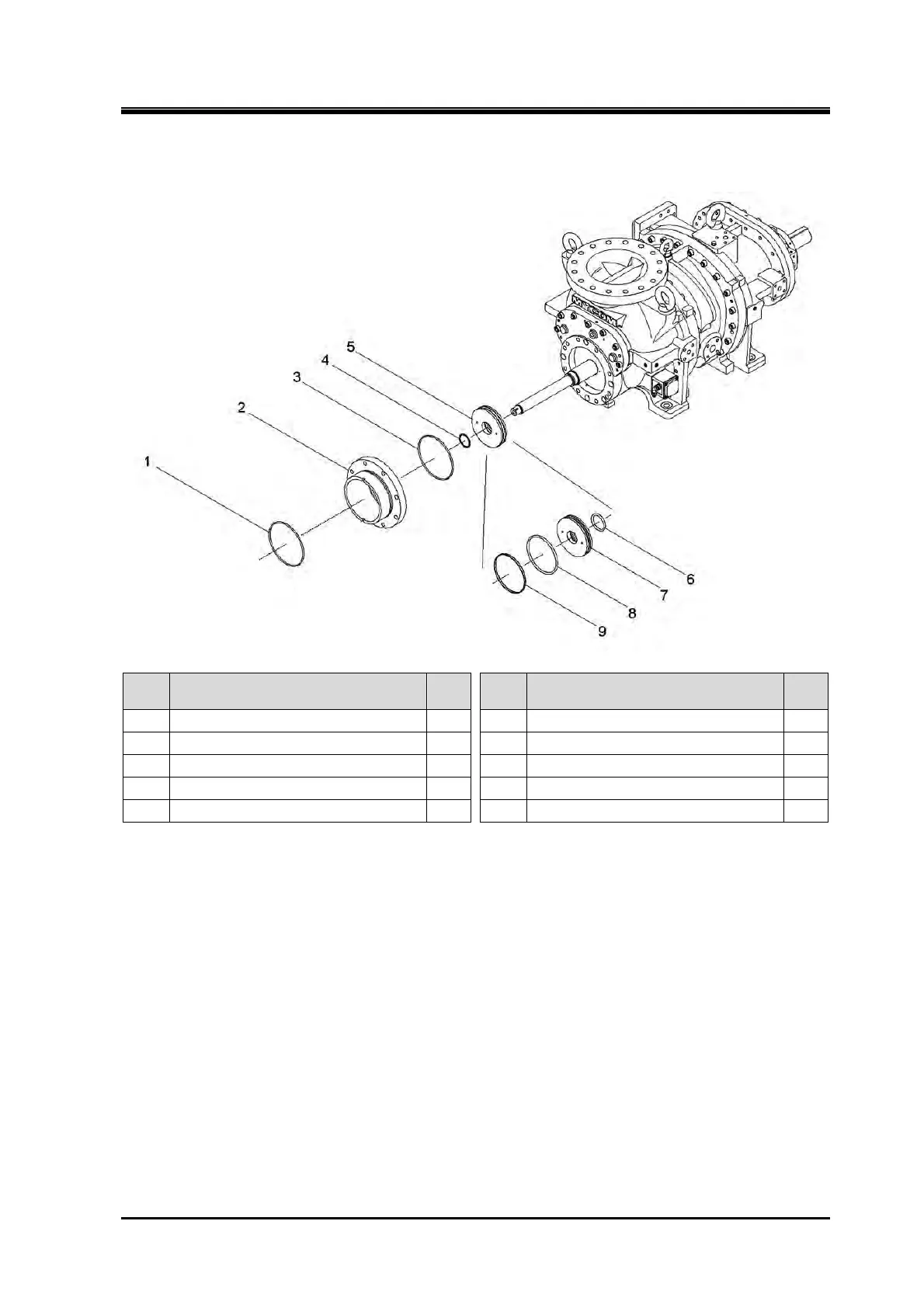

1. Remove the parts in the order of the numbers shown in the figure.
2. Install the parts in the reverse order of removing.
To Next Page
