Screw Compressor J-series 5.4 Disassembly and Assembly of the Compressor
5-58
5.4.17 Separation of Suction Cover and Main Rotor Casing
 170J/220J/280J
Order Description
Part
No.
Order Description
Part
No.
1
Parallel pin
(13 dia.×65/13 dia.×65/16 dia.×110)
3 3 Suction cover 5
2
Hexagon socket head cap screw
(M16×60/M16×75/M20×110)
2 4 O-ring (P375/P450/P580) 6

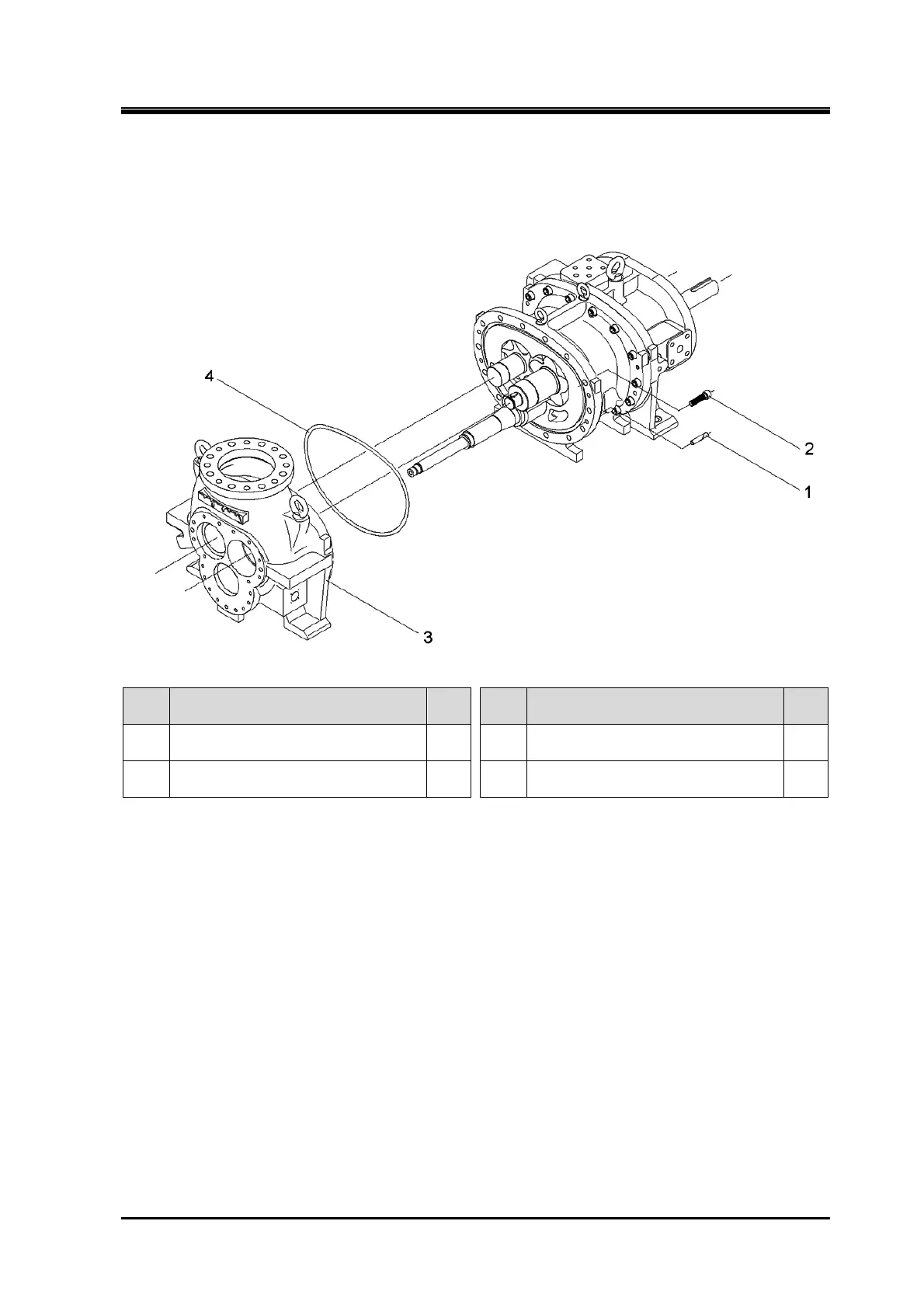

1. Remove the parts in the order of the numbers shown in the figure.
2. Install the parts in the reverse order of removing.
