2.7 Capacity Control Characteristics
The J-series can vary capacity continuously using the slide valve capacity control structure.
This control system offers a wide capacity control range with high efficiency by hydraulic control.

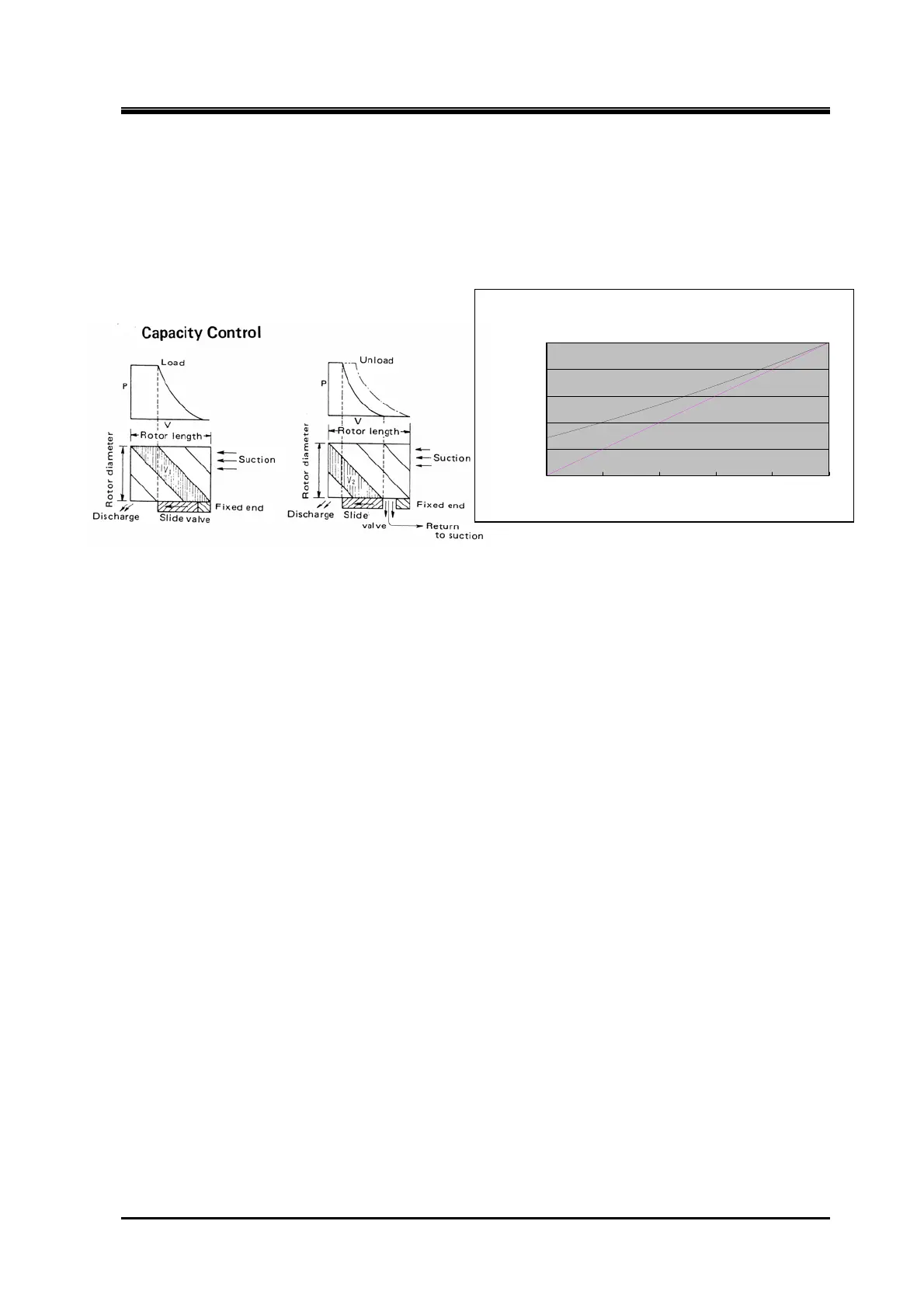

Figure 2-23 Slide Valve Capacity Control Structure and Capacity Control Characteristics
Example of Capacity Characteristics
N170JL-L
0%
20%
40%
60%
80%
100%
0% 20% 40% 60% 80% 100%
Capacity (Indicated load % )
BKW %
