2205B0JE-DA-J-N_2014.05.

2 Structure and Specifications of the Compressor

Screw Compressor J-series 2.6 Oil Flow

2-26

2.6 Oil Flow

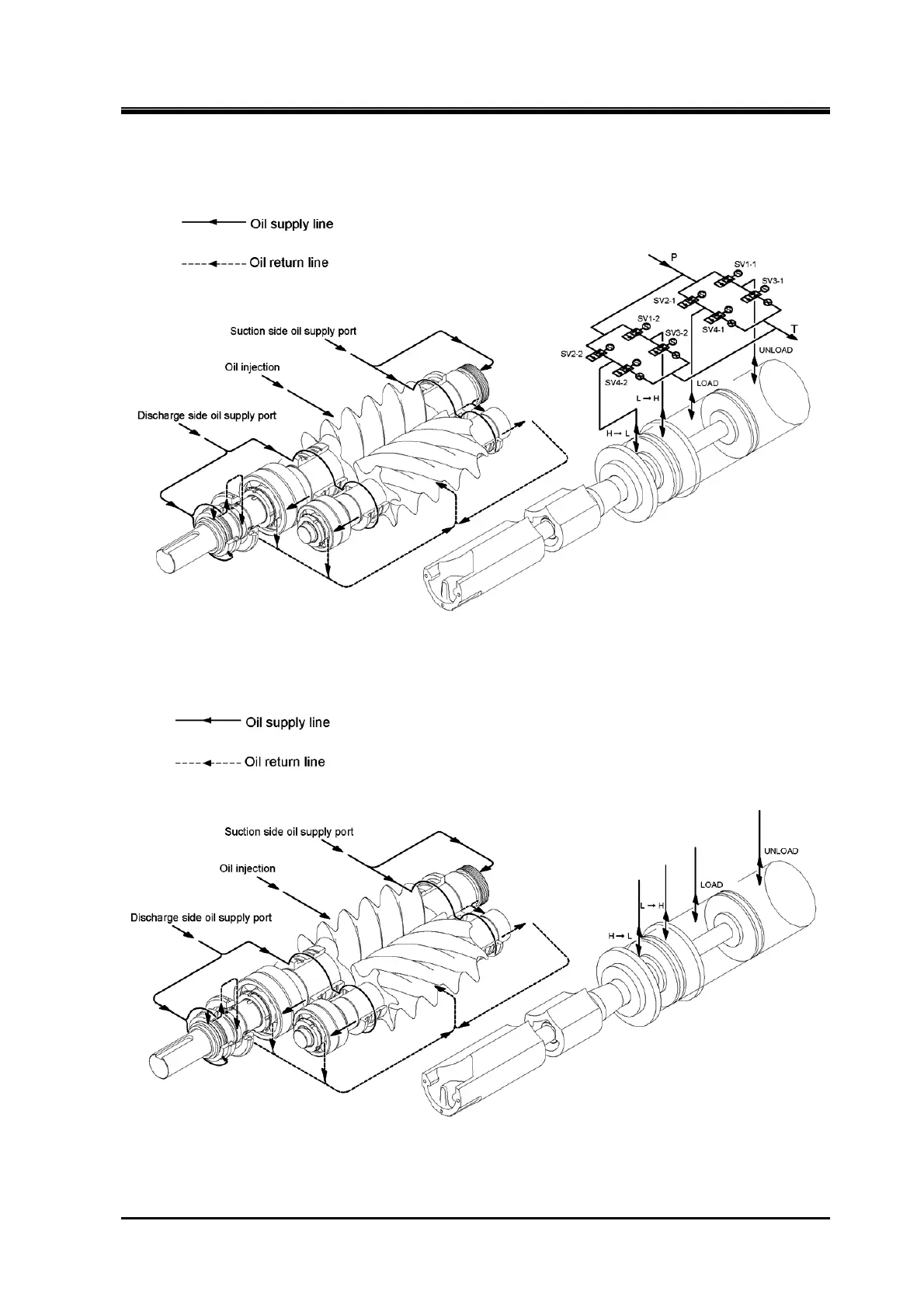

Figure 2-21 Oil Flow (170J/220J-Series)

Figure 2-22 Oil Flow (280J-Series)
