mycom UD Series User Manual

Chapter 5 Maintenance and Inspection
UD-series Screw Compressor 5.4 Disassembly and Inspection
5-26

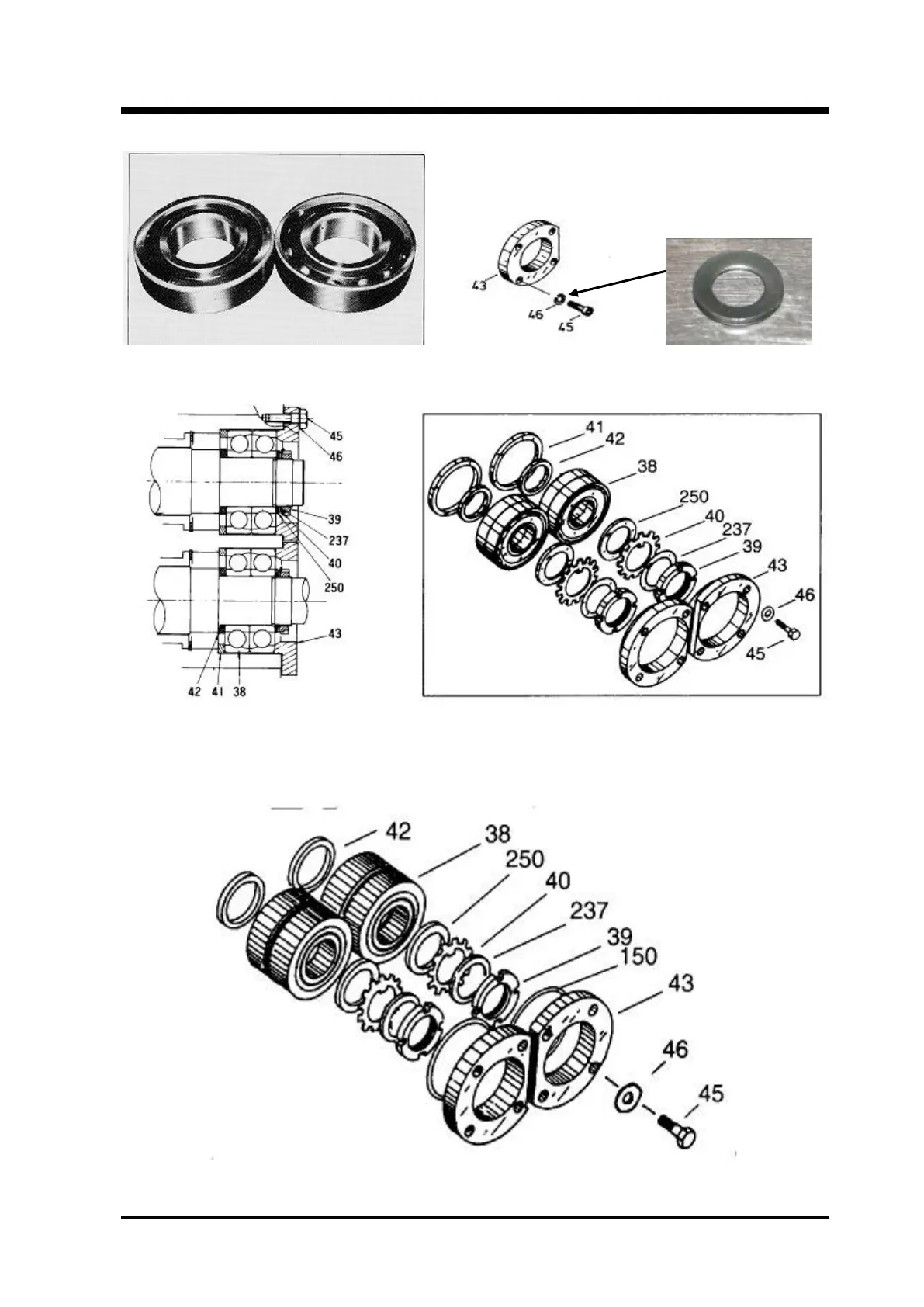

Thrust bearing (1 set) Figure 5-11 Conical Spring Washer
Figure 5-12 Development view of the 125-250 thrust bearing
* 250 does not have thrust bearing outer race spacer (41).
Figure 5-13 Development view of the 320 Thrust Bearing
