MyGate PQ81S User Manual

8
Q81S_09_2021
JP10
N.C.
JP4 JP5 JP6
N.C.N.C.
TR AS
+
+AC
-AC
TX
+
-
RX
+AC -AC
24
12Vdc
24Vac
24Vdc
12Vdc
24Vdc
24Vca
N.C.
TR AS
+
+AC
-AC
TX
+
-
RX
+AC -AC
24
12Vdc
24Vac
24Vdc
12Vdc
24Vdc
24Vca
N.C.
PROTECO S.r.l. Via Neive, 77 - 12050 Castagnito (CN) ITALY Tel. +39 0173 210111 - Fax +39 0173 210199 info@proteco.net - www.proteco.net

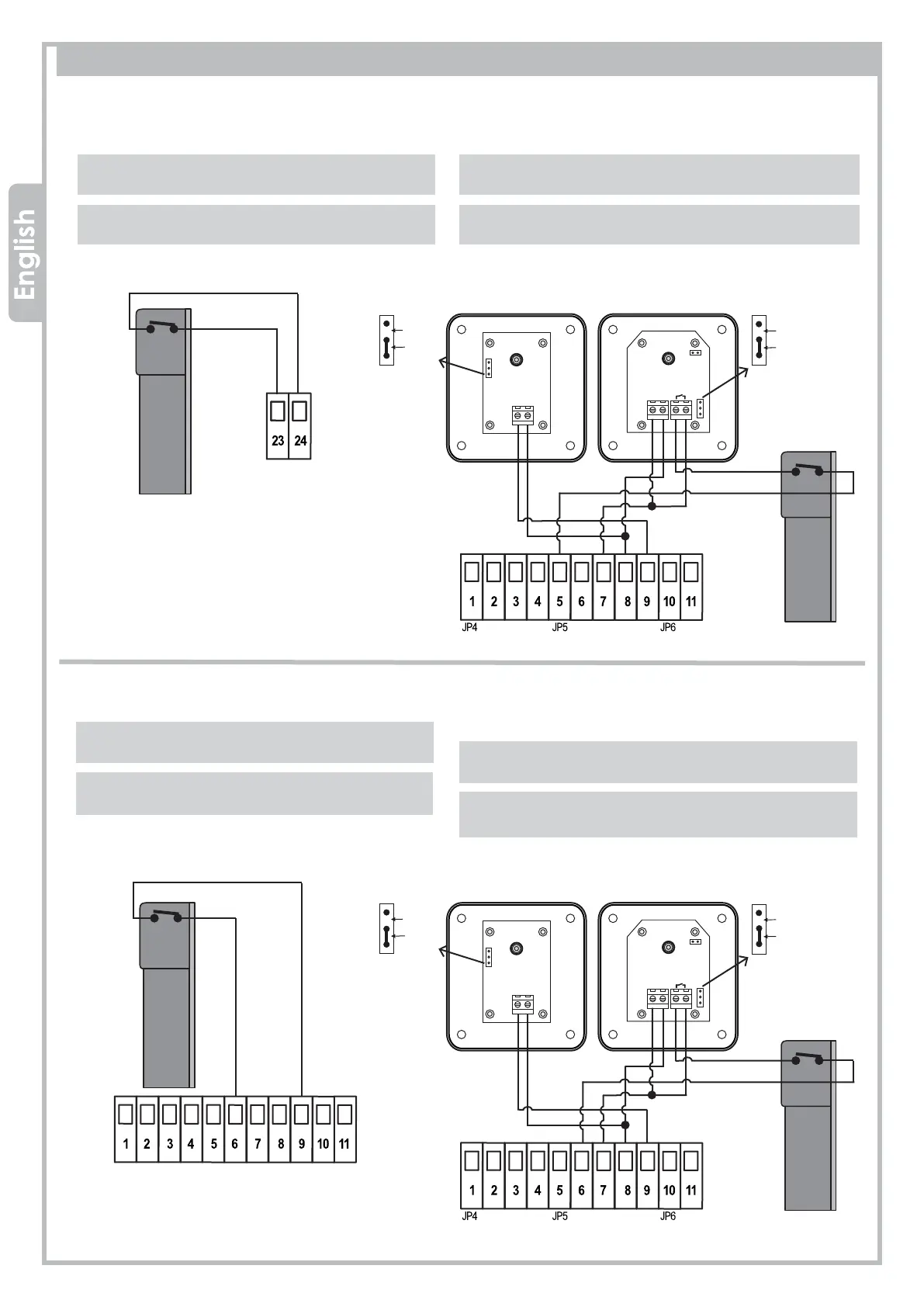

3.7 SAFETY EDGE
3.7.1 Mechanical safety edge in CLOSING
Wire the safety edge to 23 - 24, terminal JP10.
• If the contact is broken during CLOSING, the
gate stops and reverses.
• If the contact is broken during OPENING, the
gate keeps on working normally
Mechanical safety edge + photocells in CLOSING
Wire the safety edge and the N.C. contact of the
photocell in series.
• If the contact is broken during CLOSING, the gate
stops and reverses.
• If the contact is broken during OPENING, the gate
keeps on working normally.
3.7.2 Mechanical safety edge in OPENING
Wire the safety edge to 6 – 9, terminal JP5.
• If the contact is broken during OPENING,
he gate stops and reverses after 3 sec.
• If the contact is broken during CLOSING,
the gate keeps on working normally.
Mechanical safety edge + photocells in OPENING
Wire the safety edge and the N.C. contact of t
he photocell in series.
• If the contact is broken during OPENING, the gate
stops and reverses after 3 sec.
• If the contact is broken during CLOSING, the gate
keeps on working normally.
N.B.: Before wiring any SAFETY STRIP in
CLOSING, remove the jumper
between terminal 23 and
terminal 24.
