MyGate PQ81S User Manual

Q81S_09_2021
9
JP4 JP5 JP6
JP10
8K2
8K28K2
TR AS
+
+AC
-AC
TX
+
-
RX
+AC -AC
24
12Vdc
24Vac
24Vdc
JP4 JP5 JP6
12Vdc
24Vdc
24Vca
8K2
TR AS
+
+AC
-AC
TX
+
-
RX
+AC -AC
24
12Vdc
24Vac
24Vdc
JP4 JP5 JP6
12Vdc
24Vdc
24Vca
8K2
PROTECO S.r.l. Via Neive, 77 - 12050 Castagnito (CN) ITALY Tel. +39 0173 210111 - Fax +39 0173 210199 info@proteco.net - www.proteco.net
• If the contact is broken during CLOSING,
the gate stops and reverses.
• If the contact is broken during OPENING,
the gate keeps on working normally.

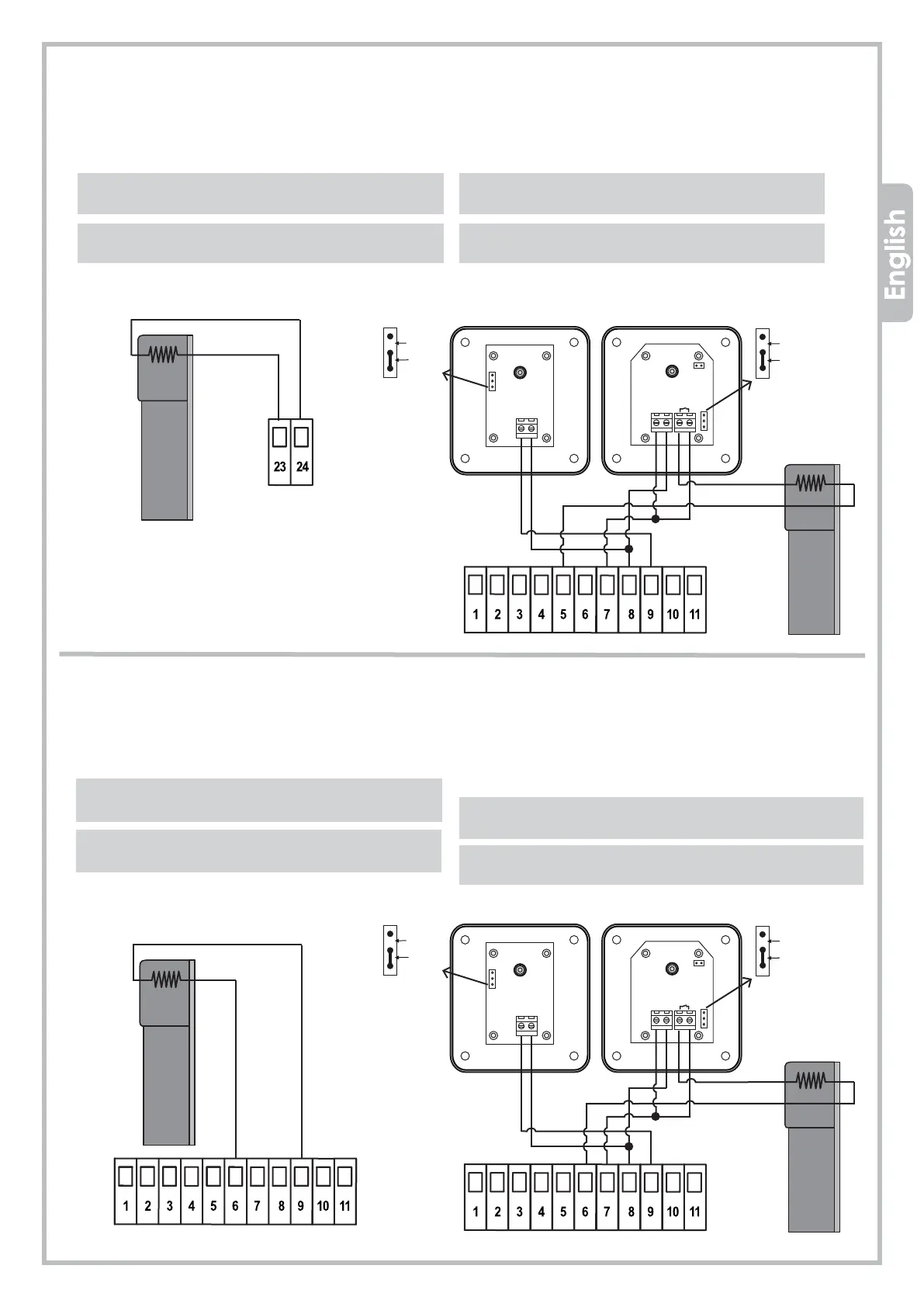

8K2 SAFETY EDGE + PHOTOCELLS IN CLOSING
(cut the power off before proceeding)
ATTENTION!:
Wire the 8K2 safety edge to 23 - 24, terminal JP10.
Press SET + SET TX together and feed the control panel
• If the contact is broken during CLOSING,
the gate stops and reverses.
• If the contact is broken during OPENING,
the gate keeps on working normally.
3.7.4 8K2 RESISTIVE SAFETY EDGE IN OPENING
(cut the power off before proceeding)
ATTENTION!:
Wire the 8K2 safety edge to 6 - 9, terminal JP5.
Press SET + SET TX together and feed the control panel.
• If the contact is broken during OPENING,
the gate stops and reverses for 3 sec.
• If the contact is broken during CLOSING,
the gate keeps on working normally
8K2 SAFETY EDGE + PHOTOCELLS IN OPENING
(cut the power off before proceeding)
ATTENTION!:
Wire the 8K2 safety edge contact in series to the N.C.
contact of the photocell.
Press SET + SET TX together and feed the control panel.
• If the contact is broken during OPENING,
the gate stops and reverses for 3 sec.
• If the contact is broken during CLOSING,
the gate keeps on working normally.
3.7.3 8K2 RESISTIVE SAFETY EDGE IN CLOSING
(cut the power off before proceeding)
ATTENTION!:
PWire the 8K2 safety edge to 23 - 24, terminal JP10.
Press SET + SET TX together and feed the control panel.
N.B.: Before wiring any SAFETY STRIP in
CLOSING, remove the jumper
between terminal 23 and
terminal 24.
