MyGate PQ81S User Manual

Q81S_09_2021
13
1 2 3 4
ON ECE
1 2 3 4
ON ECE
1 2 3 4
ON ECE
1 2 3 4
ON ECE
1 2 3 4
ON ECE
1 2 3 4
ON ECE
1 2 3 4
ON ECE
1 2 3 4
ON ECE
1 2 3 4
ON ECE
1 2 3 4
ON ECE
1 2 3 4
ON ECE
1 2 3 4
ON ECE
1 2 3 4
ON ECE
1 2 3 4
ON ECE
1 2 3 4
ON ECE
1 2 3 4
ON ECE
PROTECO S.r.l. Via Neive, 77 - 12050 Castagnito (CN) ITALY Tel. +39 0173 210111 - Fax +39 0173 210199 info@proteco.net - www.proteco.net

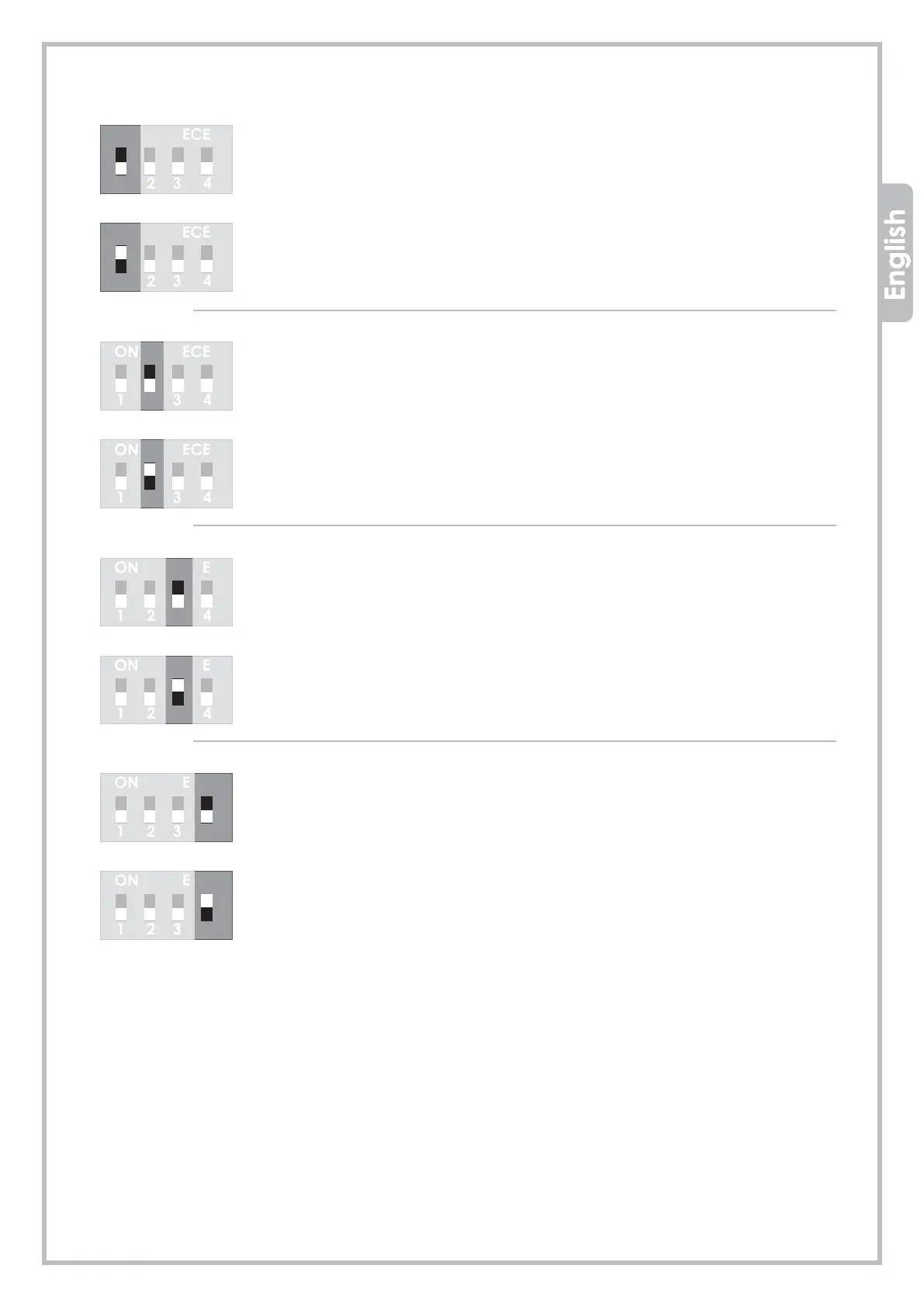

SWITCH SW2
dip n° 1
dip n° 2
dip n° 3
dip n° 4
ON
OFF = = Motor positioned on the RIGHT (Default)
ON = Motor positioned on the LEFT
OFF
ON
OFF = Standard slow down (Default)
ON = Soft slow down ACTIVATED
OFF
ON
OFF = Mantained action DEACTIVATED (Default)
ON = Maintained action ACTIVATED
OFF
ON
OFF = N.C. contact limit switches(Default)
ON = N.O. contact limit switches
OFF
