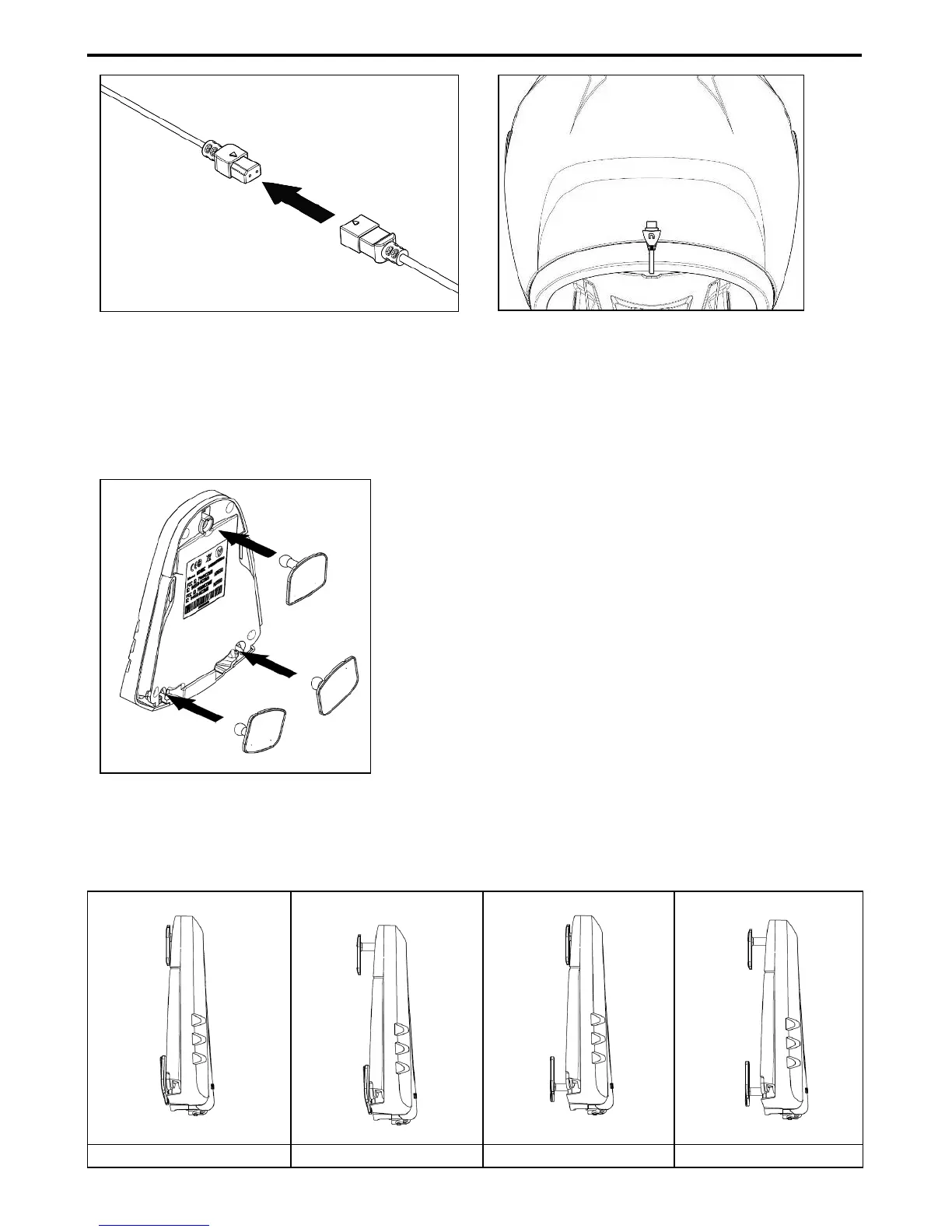

Fig. 4 Fig. 5
Connect the microphone with the counterpart on the wiring (Fig. 4).
Pass the wiring e-box connector through, out of the back of the helmet, so that it can be hooked up
to the e-box afterwards (Fig. 5).
3.2. Installing the e-box
Fig. 6
The M5 e-box must be positioned in the back of
the helmet, using the adhesive feet supplied as
standard equipment.
Thoroughly clean the surface of the helmet
where the feet will be applied;
Insert the fixing feet in the device;
Make sure the e-box is properly positioned on
the helmet shell.
If necessary, depending on the different types of helmets, replace one or more thin feet with thicker
ones, until you find the combination that allows the e-box to properly stick to the helmet (Fig. 7-10).
Fig. 7 Fig. 8 Fig. 9 Fig. 10
