M5
9
Important: Should you wish to use the emergency brake light (see Chapter 10), you need to position
the M5 e-box so that it is vertical or with an inclination of +/-30° with respect to the vertical axis
while you are riding, so as to allow the triaxial accelerometer to properly measure the motorcycle
deceleration. Based on the type of helmet used and the riding style, choose the combination of
feet (thick-thin) that allows proper positioning.

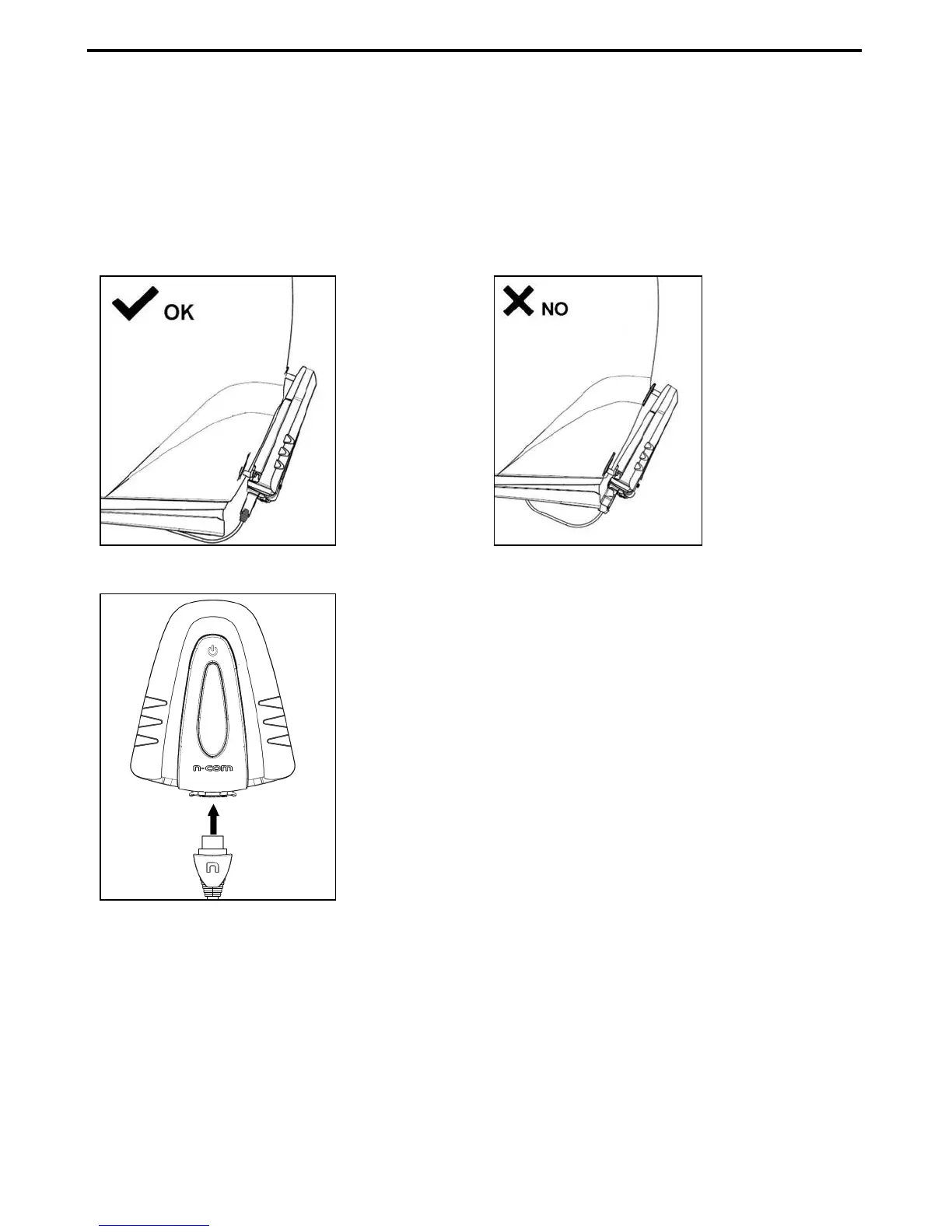

Important: When positioning the e-box on the helmet, the wiring connector must not stick out from
the edge of the helmet or be twisted (fig. 11 and 12).
Fig. 11 Fig. 12
Fig. 13
Insert the wiring connector all the way inside the
e-box, making sure that it is pointing in the right
direction: the letter “n” must be visible (as
shown in the figure).
