3. Ensure the Leading Edge of the Slide door and (other Slide door or Jamb Tube) are parallel.
4. Ensure the Leading Edge of the Slide door and Header are parallel.
5. Reghten the 7/16-20 Whizlock nuts. Do not overghten.
DN 0895
BIPART
SINGLE
Parallel Gap
Parallel GapParallel Gap
Parallel Gap
Parallel Gap
11/16” (17mm) to
15/16” (24mm);
7/8” (22mm)
nominal

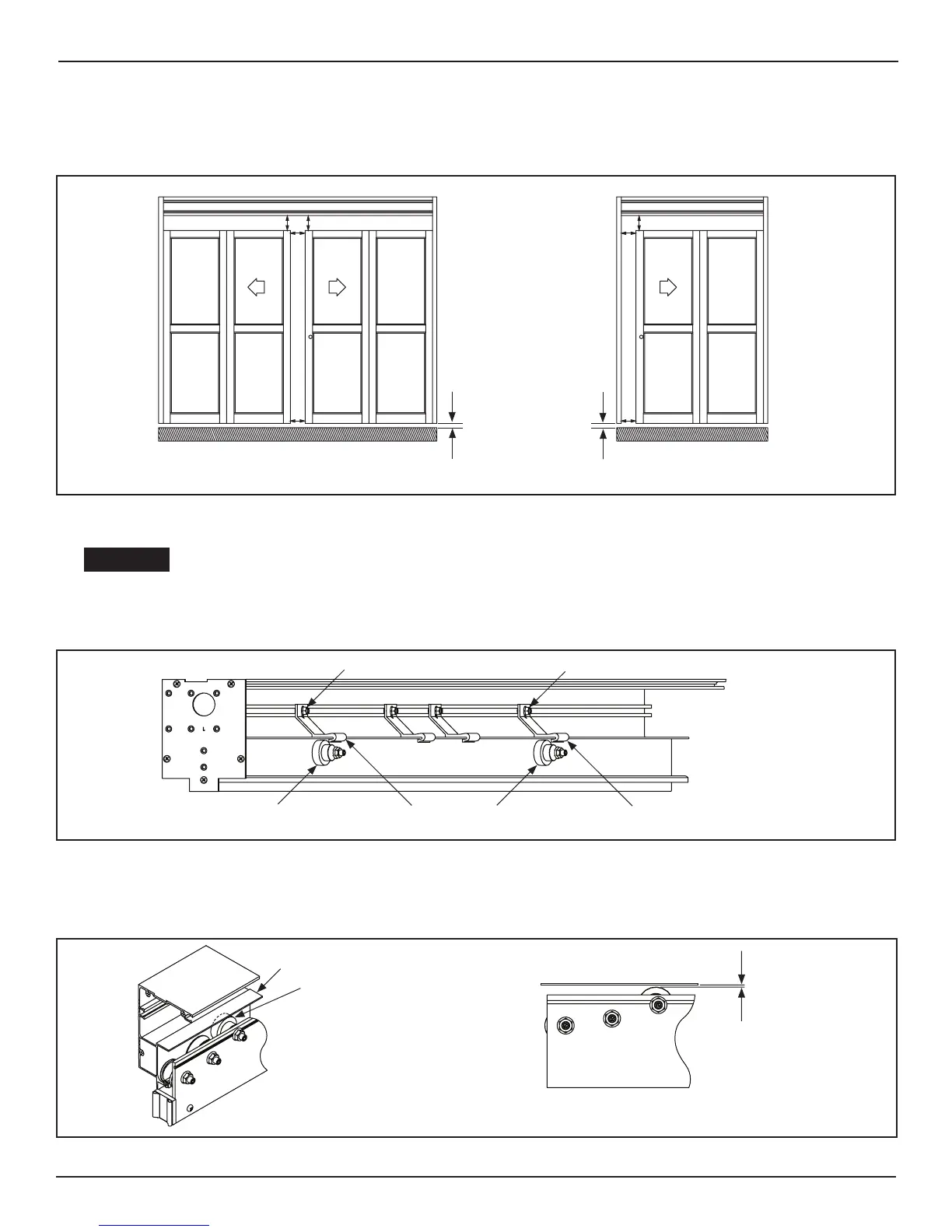

Figure 29 Floor Gap
Ensure (1) Anti-Rise Bracket is aligned directly above each Anti-Rise Roller.
1. Fully close Slide Door. Ensure each An-Rise Bracket is aligned directly above each An-Rise Roller. If not, go to the An-Rise
Bracket and loosen (1) 3/8-16 Whizlock Nut with a 9/16 inch wrench.
2. Slide the An-Rise Bracket to the le or right. Reghten screws. Do not overghten.
DN 0929
An -Rise Roller
An -Rise Bracket
An -Rise Bracket
An -Rise Roller
3/8”-16 Whizlock Nut
3/8”-16 Whizlock Nut
Figure 30 Align Anti-Rise Brackets to Anti-Rise Rollers
3. Loosen (2) An-Rise Rollers located towards the middle of the Carrier. Turn the Axle clockwise unl there is a 1/64 inch to
1/32 inch gap between the Roller Wheel and the Top Track.
a. Gap should be about the same thickness of a credit card.
4. Reghten the 7/16-20 Whizlock nuts. Do not overghten.
DN 0898
An -Rise
Roller Wheel
Top of Track
1/64 inch to
1/32 inch
clearance
Figure 31 Anti-Rise Roller Wheel and Top Track Clearance
